Detailed Description
2017 new designed 4-Wheel Mobility Scooter(TBZ04)
Specification:
1.Turning radius | 1250mm |
| 2.Battery power | 12V 20Ah X 2 |
| 3.Max speed | 9.8km/h(6.1mph,adjustable) |
| 4.Driving distance | 28km per full charge |
| 5.Climb degree | 12° |
| 6.Ground clearance | 68mm |
| 7.Max Loading | 117.93KG/260LBS |
| 8.Motor | 24V 200W |
| 9.Battery box | split-type box,independent charge |
| 10.Seat height | 550MM(±30MM) |
| 11.Basket load ability | 6.8KG |
| 12.Charger | 24V 2.5A,Split-type, wider band, universal.110V-240V |
| 13.Charge time | 8-12 hours |
| 14.Tire Diameter | Front:193mm/Rear:233mm |
| 15.Whole Vehicle Weight | 56KG |
| 16.Gross weight | 64KG |
| 17.Colour | red,blue,silver |
| 18.Lights | LED head light,LED turn light,LED tail light, |
| LED emergency light,Horn |
| 19.Dimensions | 112x54x94CM |
| 20.Packing size | 117x58x52CM |
| 21.Protectors | overload protector and low voltage protector |
| 22.Controller | Curtis® Controllerin USA,24V 40A |
| 23.Plug&Cables | plug from Molex® in USA,cable with ULcertification |
| 24.Seat | cover by PU material,and adjust 360 degree |
| 25.Battery | acid batteries,12V/20AH,2pcs/set,Maintenance-free battery |
| 26.Wheel | PU material,solid wheel,made from Hexin® in Taiwan |
| 27.Brake systems | electron brake systems |
| 28.Plastics | All plastics are injection molding processed |
| |
| Qty/container | 80pcs/20FT,160PCS/40FT,200PCS/40HQ |

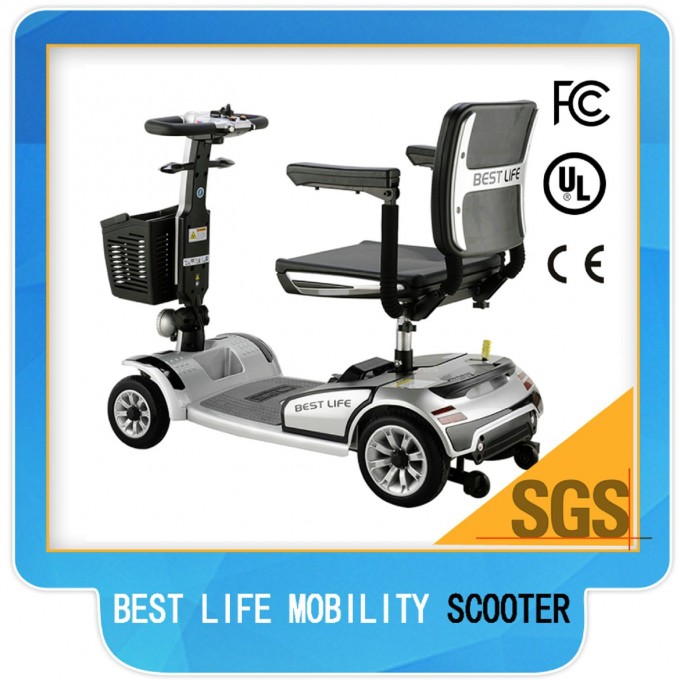

Product Image
