Rubber Track with 320mm Width for Snow Use, with Customized Wheels

Our Rubber Track are made from natural rubber. It possesses very good properties of wearing resistance and non-disintegration etc. The adhesion between the rubber and the steel frame is very strong, in addition the replacement is convenient and the service life is long, it is suitable for various snow mobiles

The characteristics of rubber tracks:

1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks
2. A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks
3. Rubber tracks permit machines to travel at a higher speed than steel tracks
4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of machine and decreasing operator's fatigue
5. The ground pssure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30 kg/m2, a major reason for its use on wet and soft terrain.
6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled vehicles of the same weight.
7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles equip with rubber track to do the same pulling work than that of wheeled vehicles.


The notices of using rubber tracks:

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).
2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).
3. Avoid sharp projections when traveling.
4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.
5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.
6. When storing for long periods, keep indoors, away from direct sunshine and rain.
7. Replace as soon as possible when abrasion of sprockets is observed

Applicable machines	snow mobiles
Material	rubber and steel
Specification	320-87-33
Installation position	Installed on the snow mobiles or other machine

Other size of snowmobile Rubber Track we can supply:

Model	Size	Weight(kg)/link	Model	Size	Weight(kg)/link	Model	Size	Weight(kg)/link
HS-32	32*12.7	0.0031	QD-118	118*60	0.122	YT-200	200*52.5	0.3935
BK-B	40*9.3	0.0084	SJ-120	120*61	0.1477	SQ-A	220*53.5	0.2062
HL-40	40*44	0.0268	RN-120	120*60	0.125	JH-220	220*85	0.9
PY-40	45*31.75	0.0172	WG-123	123*38	0.0703	JA-220	220*50.3	0.4
DG-50	50*22.225	0.03	GF-A	125*19	0.0243	DY-250	250*50.3	0.3507
GF-B	50*19	0.0093	DN-A	130*18.5	0.0289	LP-250	250*50.3	0.523
GMD-B	50*20	0.0109	WJ-130	130*40	0.1088	CQ-255	255*72	0.4758
HGD-52	52*58	0.0474	TH-136	136*45	0.0868	FP-250	250*80	0.4897
XL-60	60*13.9	0.59	WGJ-130	130*65	0.4348	WD-255	255*73	0.4549
LWM-60	60*22.225	0.023	HBC-140	140*30	0.0334	SQ-B	255*72	0.45
JQ-B	60*12.7	0.0182	SL-140	140*80	0.2778	CF-280	280*60	1.9
BF-B	60*15	0.0073	JT-140	140*20	0.0332	PY-280	280*87	0.4839
BK-A	60*13.01	0.0178	PW-148	148*60	0.2804	KD-320	320*87	2.1607
DN-B	60*18.5	0.0088	ZY-148	148*60	0.4445	QATV-320	320*87	0.4688
JT-60	60*20	0.0125	XF-A	150*59	0.2051	WD-320	320*72
JQ-A	76*12.7	0.0158	NG-150	150*65	0.3095	TG-320	320*87	0.9412
BF-A	80*15	0.0112	SF-150	150*72	0.3781	TJ-360A	360*87	0.8285
HL-80	80*44	0.055	XF-B	150*59	0.2178	NY-380	380*65	0.7854
SMX-70	70*40	0.0636	PY-160	160*60	0.8065	YQZG-400	400*73
CHJ-80	80*40.2	0.0817	YSD-165	165*64.5	0.3612	QATV-400	400*87	1.25
TH-85	85*59.4	0.08	WJ-165	165*65.5	0.2989	TK-560	560*105	3
GMD-A	100*20	0.0242	WHKD-170	170*64	0.2419	DNS-580	580*60.5	0.675
BD-B	100*40	0.0454	PY-180	180*65	0.3571	XLG-620	620*100
BD-A	100*40	0.08	YN-180	180*72	0.4729	BV206	620*90.6	3.125
HL-105	105*42	0.0572	HC-200	200*60.2	0.3	WZY-800	800*90.6
CX-118	118*61	0.1625	HS-200	200*72	0.75	KCM-500	500*110	2.9836

Any requirement,please feel free to leave me message.

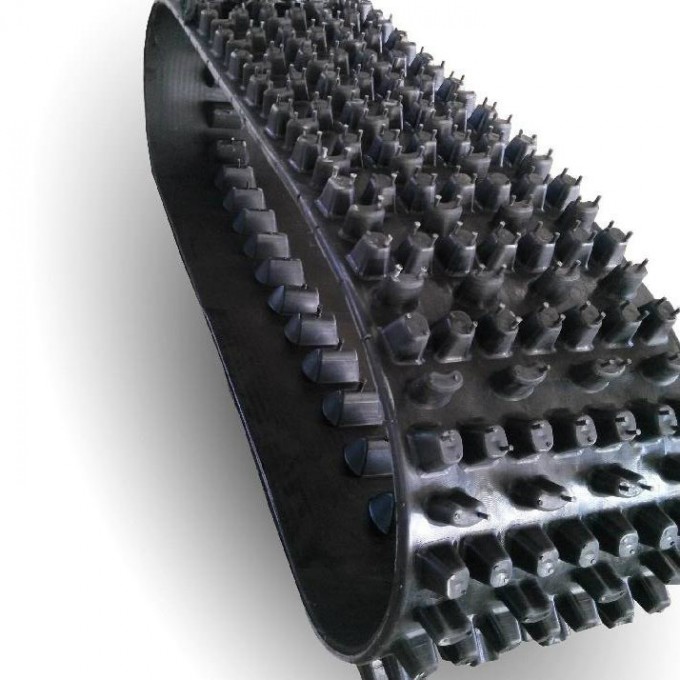

320-87-33 Pictures:
