Company History
Founded in 1999, Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. is a leading manufacturer specializing in designing and manufacturing 4-wheel electric vehicles. Our company has a workshop area of 30,000 square meters and 400 workers. Our current daily production capacity is 100units per day, this can be adjusted with the order volume increasing.
Our company has gotten the unique production license for electric vehicle by the Supervision Bureau of Quality and Technology of China. In 2003, we were approved by ISO9001. In 2006, we were approved by WMI quality system to get our own VIN.
With effective management and specialized talents, our company is dedicated to offering top quality products with competitive price and first class after-sales service.
Why EV?
There should be at least three reasons for EV:
Firstly, decrease pollution! EV as a zero-emission-car can help improve the enviro
nment a lot;
secondly, decrease the cost! Though the initial buy cost of EV is higher than gasoline car, the maintenance cost of EV will be extremely lower than gasoline car. ba
sed on calculation, for a 48V EV, it o
nly co
nsumes 2KWH electricity per 100kms. Cost is much lower than gasoline car.
Thirdly, energy independent! For a country that is lack of oil source, it should find a way to make it independent from oil. Water resource, sun resource and wind resource are potential alternative resource; the problem is to find a medium to storage the energy. Then battery will be the best choice at this moment.
Electric Golf car produced by Suzhou Eagle has nice quality, smooth shape, excellent performance characteriestics, fashio
nable design features, and can be used in golf course, vacation villages, private retirement residential areas, resort hotels, tourist spots, or any other place wher

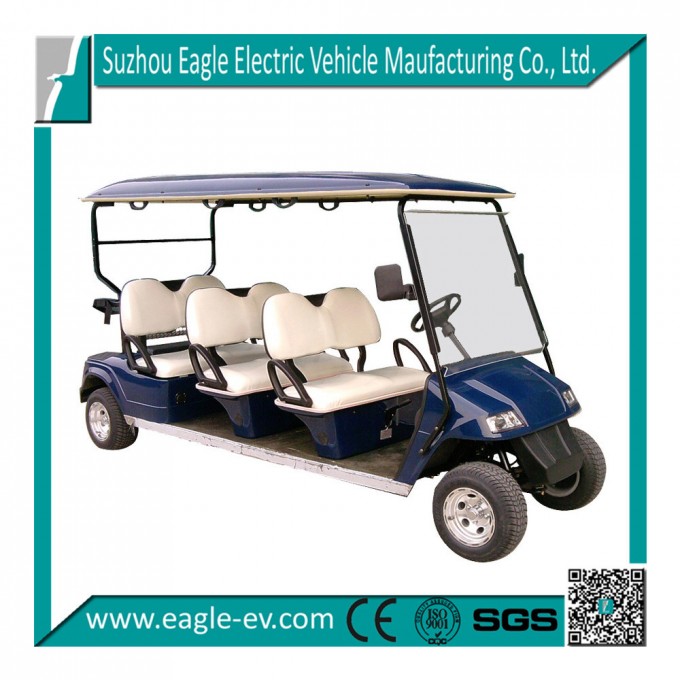

e the safe and intended use is allowed under local and state laws. Below is the specification of 6 seater electric golf cart model EG2068K:
| Battery | Deep cycle, lead acid battery, Trojan brand, imported |
| Motor Power | 3.8KWDC / AC, 5KW DC |
| Controller | Curtis brand, Separately excited, imported |
| Passenger capacity | 6 |
| Range (loaded) based on flat road at a speed of 20km/h (km) | >70--90 depends on battery setup |
| Max. speed | 32-40 depends on motor and rear axle setup |
| Minimum turning radius (m) | 6 |
| Max. climbing ability | 20% |
| Max. loading weight | 450kgs |
| Overall dimensions (mm) | 3860x1180x1890 |
| Body and frame | |
| frame | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front body + PP plastic rear body |
| Roof | injected plastic |
| Windshield | one-piece Organic glass |
| Large Seats: | Rebond seat + artificial leather, formed armrest, plastic seat bottom |
| Floor | rubber |
| Dashboard in black plastic | forward/reverse switch, battery capacity indicator, ignition key |
| Beverage holders | 4 cups drink holders |
| Electric system | |
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. Reversing alarm |
| Charger | input 110V-240V~50Hz-60Hz, output 36V/48V, 20A/25A |
| Steering and Suspension | |
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | 4 wheel hydraulic brake+ handbrake |
| Accelerator | Stepless speed change |
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated |
| Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR |
| Color | |
| Body Color | 6 standard color: Pure white/Pure Black/Champagne/Coca Cola Red/Navy Blue/metallic Green |
| Seat Color | 2 standard color: white and tan |
| Others | |
Provides various options like: hinged windshield, wood finish dashboard/backrest cover/steering wheel, onboard charger, STS roof supports, 4-wheel hydraulic brake, enclosure, solar panel, cooler,etc..
|
