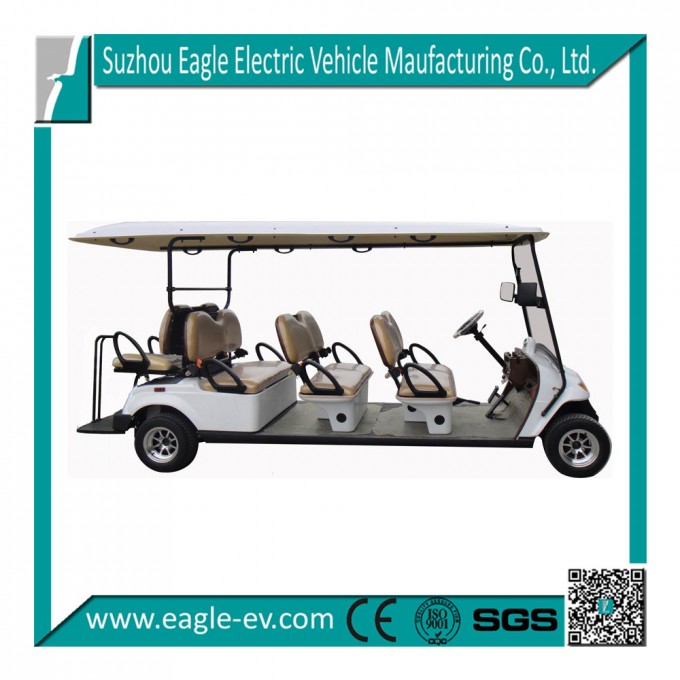

| Model | EG2069KSF |
| System | 48V/5.3KW Sepex |
| Key Components | |
| Battery | 8xT105(185Ah@5hr rate) |
| Motor | 5.3KW Chinese motor |
| Controller | Curtis 1268 (400A@2minutes) |
| Performance | |
| Passenger capacity | 8 |
| Range (loaded) based on flat road at aspeed of 20km/h (km)* | >60 |
| Max.Speed @12.49:1 gear ratio | 25 |
| Minimum turning radius (m) | 6 |
| Max.Climbing ability (loaded)@ 12.49:1 gear ratio | 15% |
| Max.Movement after brake at speed of 20km/h | ≤4m |
| Max.Loading weight | 640kgs |
| Net weight | 730kgs |
| Dimensions | |
| Overall dimensions (mm) | |
| Min.Ground clearance (mm) | 120 |
| Wheelbase (mm) | 3200 |
| Front wheel tread (mm) | 875 |
| Rear wheel tread (mm) | 985 |
| Detailed Configurations:("S" stands for Standard configuration and "O" stands for Optional configuration) |
| Body and frame | |
| frame | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front body +PP plastic rear body |
| Roof | Fibreglass |
| Windshield | One-piece Organic glass |
| Windshield, hinged |
| Laminated windshield |
| Laminated windshield with wiper |
| Stainless steel package | Including front upright, rear upright, caddie handle |
| Aluminum roof support | Including front upright, rear upright, caddie handle |
| 2point seat belt | |
| Large Seats: | |
| 1) backrest and cushion | Rebond seat +artificial leather |
| 2) armrest | Formed |
| 3) plastic seat bottom | Last row of seat |
| Formed seat&backrest vinyl | Exclude the first two rows of seat cushion |
| Backrest cover in wood finish | |
| Floor | Rubber |
| Dashboard in black plastic | Forward/reverse switch, battery capacity indicator, ignition key |
| Dashboard in wood finish | |
| Steering wheel in wood finish | |
| Beverage holders | 4 cups drink holders |
| Glove box | |
| Glove box door (include two locks) in black plastic | 2 doors per set |
| Glove box door (include two locks) in wood finish (inside and outside) | 2 doors per set |
| Side trim | Plastic |
| Score card holder | On steering wheel |
| Towing bracket | On front of golf car |
| Inner rear view mirror | One piece per cart in the middle of the windshield |
| Side rear view mirror | Two pieces per cart |
| Battery watering system,48V system | Without water supply tool |
| Battery watering system,36V system | Without water supply tool |
| Manual Pump | Water supply tool (other water supply tools are available) |
| Overshadowing Curtain | |
| Enclosure | |
| Electric system | |
| Lighting system and horn | 2 headlights, 2front turn signals, 2taillights( each combined 1brake light with 1turn signal), with DC-DC converter (converting from 48V to 12V), horn. |
| Reversing alarm | |
| Meter(only available for 48V system) | Speed, mileage, headlight indicator, emergency light indicator, turn signal indicator, reverse indicator |
| Police Light | |
| 12V accessory plug | To be mounted on the dashboard |
| Hour meter | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A |
| Steering and Suspension | |
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Right hand drive system | |
| Brake system | 4-wheel hydraulic brake +hand brake |
| Accelerator | Stepless speed change |
| Suspension system | Front and rear plate spring +cylinder hydraulic shock absorber |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated, Gear ratio 12.49:1 |
| Wheel &Tyre | 10x6 Alumimum wheel &205/50-10 4PR |
| 6J-10 steel wheel with cap &205/50-10 4PR |
