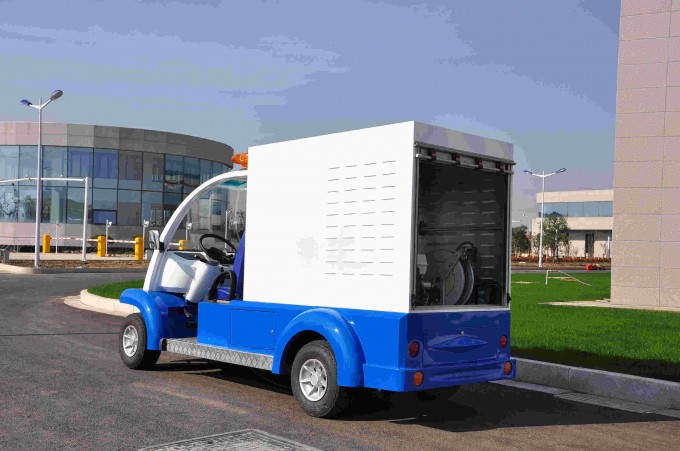

Electric Liquid Garbage Collection Truck

Specifications	Model	EG6043KCU
Key Components	Power Source	Pure Electric
	Electric System	48V system(DC Series& Sepex& AC Sepex)
	Battery	Trojan battery
	Motor	Chinese Motor
	Controller	Curtis controller
	Charger	China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A
Performance	Passenger capacity	2
	Range (loaded) based on flat road at a speed of 20km/h (km) *	Up to 90
	Max. speed	Up to 40
	Minimum turning radius (m)	4
	Max. climbing ability (loaded)	Up to 25%
	Max. movement after brake at speed of 20km/h	≤4m
	Max. loading weight	320kgs
Dimensions	Overall dimensions (mm)	3050x1400x1800
	Min. ground clearance (mm)	140
	Wheelbase (mm)	2040
	Front wheel tread (mm)	1143
	Rear wheel tread (mm)	1143
Body and frame	frame	Welded steel framework with sand blasting+paint treatment
	Body	Fibreglass
	Roof	Fibreglass+steel frame
Electric system	Lighting system and horn	2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn.
Steering and Suspension	Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
	Brake system	Four wheel hydraulic drum brake+foot parking brake
	Suspension system	Independent suspension, helix spring + shock absorber(FW) & rear plate spring + shock absorber(RW)
	Driving mode	Rear axle two stage deceleration, motor direct driving
	Rear axle	Gear ratio12.49:1
	Wheel & Tyre	20.5x8.0-10 tire, 6J-10 steel wheel, wheel cap
Option	3point seat belt
	Microphone
	Rear storage box
	Inner rear view mirror
	Rain cover
	CD player
	Solar panel
	On-board charger
	Integrated, Gear ratio10.25:1
	10X6 Aluminum Wheel
Body Color	Up to 6 kinds of standard color for option
Loading	Both Assembly and Disassembly are available

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
All electric vehicles sold by us are quality guaranteed.We provide 13 months warranty to our electric vehicles from the shipping date.* 13 months warranty* technical support* full spare parts support
