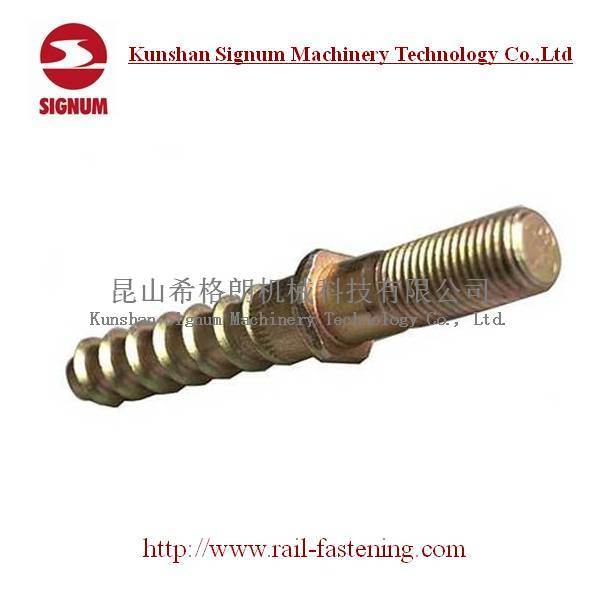

| Item Name | Railway Stud Screw Spke |
| Type | Ss5.-150 | V20-135 |
| Ss8-140 | V23-115 |
| Ss8-150 | V23-135 |
| Ss8-160 | V23-155 |
| Ss23-160 | V23-215 |
| Ss25.-165 | V26-115 |
| Ss35.-161 | |
| Or the type by customers' drawings |
| Grade | 4.6 | 5.6 | 8.8 | 10.9 |
| Material | Q235 | 35# | 45# | 40Cr |
| Mechanical properties | Tensile strength: ≥400Mpa | Tensile strength:≥500Mpa | Tensile strength:≥800Mpa | Tensile strength:≥1000Mpa |
| Yield strength:≥240Mpa | Yield strength:≥300Mpa | Yield strength:≥640Mpa | Yield strength:≥900Mpa |
| Elongation:≥22% | Elongation:≥20% | Elongation:≥12% | Elongation:≥9% |
| Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | Cold bending: 90 degree without crack |
| Surface | plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing |
| Standard refers | ISO898-1, UIC864-1, and NF F500-50 |
Railway sleeper screwprovide a mechanical interlock that delivers more than twice the holding power of conventional hammered railway spikes.
Railway sleeper screw spikes are commonly used to fasten timber railway ties and sleepers, andthey can also perform conjunction with plastic ferrules that have been casted into concrete ties/sleepers.
We can supply railway drive screw with various thread profiles, lengths, diameters and drive heads, which allow them tosuit specific geographic requirements.
Kunshan Signum Machinery Technology Co.,Ltd is a professio
nal supplier of railway stud screw spike.
We can provide railway fastening products according to customers drawings and samples.Our main products are as following:
1. Screw spike, Coach screw, Drive screw, Sleeper screw, Dog spike, Railroad spike, Lock spike, Cut spike,etc.
2. Rail clip, Tension clamp,SKL clip, Pandrol clip, Deenik clip.
3. Swivel bolts, Track bolt, Special bolts, U bolts, J bolts, Anchor bolts, Foundation bolts, Stud bolts, Rod bolts, Curved bolts, Tunnel bolts.
4. Tie plate, ba
se plate, Rail plate, Rail fixing ba
se, Rail Pads, Sole plate, Sole pad
5. Fish plate, Joint bar, Rail joint, Splice bar.
6. Track bolt, T bolt, Rail bolt, Clamp bolt, Inserted bolt, Clip bolt, Fish bolt, Square bolt, Rod bolt, rail joint bolt.
7. Clamp plate, Rail spring clamp, Anchor plate, Steel clip.
8. Rail Shoulder, Rail sleeper Inserts, Rail Anchors for rail sleepers.
9. Plastic dowel, Guide plate, Nylon insert.
10. Chinese Standard Steel Rail: GB/T11264-89 9kg 12kg 15kg 22kg 30kg steel light rail; Q/YYG001-2008 (formerly YB222-63) 4kg 8kg 18kg 24kg steel light rail. GB2585-2007 38kg 43kg 50kg 60kg 75kg steel heavy rail. YB/T5055/93 QU70 QU80 QU100 QU120 crane rail.
11. German Standard Steel Rail: DIN536 A45 A55 A65 A75 A100 A120 A150 Crane Rail.
12. American Standard Steel Rail: ASTM-A1 ASCE25, ASCE30, ASCE40, ASCE60,ASCE75,ASCE85,90RA,115RE,136RE,175LBs Steel Rail.
13. British Standard Steel Rail: BS11-1985 BS50O,BS60A,BS60R,BS70A,BS75A,BS75R, BS80A,BS80R,BS90A, BS100A, BS113A.
We can make products as per customers' drawings and samples.
