Steel rail, also called rail track, is the base of railway track system. Steel rail takes the role of carrying train wheels and locomotive load. And spad the pssure to the railway sleeper. The material quality of steel rail decides the safety and service life of steel rail.
Americanstandard,which also known as AREMA A.S.C.E, refers the standard used to the American railway. American standard covers many types of railway track, such as hot-rolled rail, heat treated rail and rail for switch, all these steel rail can be applied in the mph 200 or 350 passenger railway, mph 160 or 200 railway, etc. common A.S.C.E standard steel rail include ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, 115Re, 132Re, 136Reetc.
| American Society of Civil Engineers (A.S.C.E.) specification |
| Size(Nom WT) | Standard Sectional Dimension | Length |
| Per Yard | Per Meter | A | B | C | D | E | F | G | T |
| ASCE25 | 12.2kg | 2 3/4" | 2 3/4" | 1 1/2" | 25/32" | 31/64" | 1 31/64" | 1 29/128" | 19/64" | up to 30 ft |
| ASCE30 | 15.2kg | 3 1/8" | 3 1/8" | 1 11/16" | 7/8" | 17/32" | 1 23/32" | 1 25/64" | 21/64" | up to 40ft |

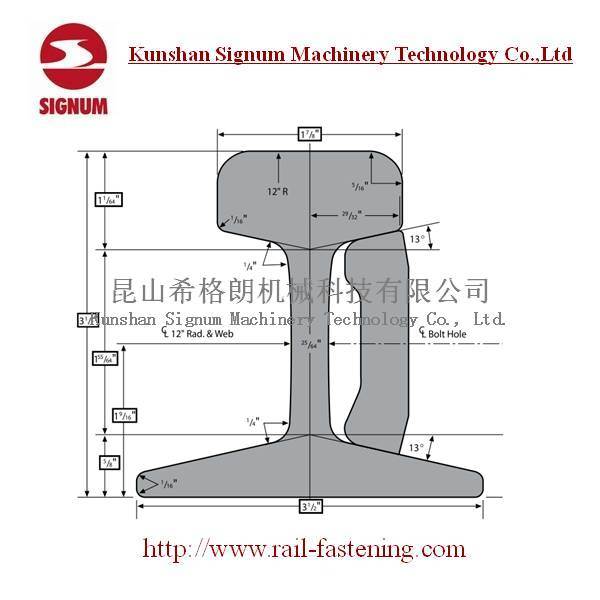

| ASCE40 | 19.84kg | 3 1//2" | 3 1/2" | 1 7/8" | 1 1/64" | 5/8" | 1 55/64" | 1 71/128 | 25/64" |
| ASCE45 | 22.3kg | 93.66mm | 93.66mm | 50.8mm | 26.99mm | 16.67mm | 50mm | 41.67mm | 10.72mm |
| ASCE60 | 30.1kg | 4 1/4" | 4 1/4" | 2 3/8" | 1 7/32" | 49/64" | 2 17/64" | 2.05" | 31/64" |
| ASCE75 | 37.2kg | 122.24mm | 122.24mm | 62.71mm | 36.12mm | 21.43mm | 64.69mm | 53.78mm | 13.49mm |
| ASCE85 | 42.3kg | 5 3/16" | 5 3/16" | 2 9/16" | 1 35/64" | 57/64" | 2 3/4" | 2 17/64" | 9/16" |
| 90ARA-A | 44.64kg | 142.9mm | 130.2mm | 65.1mm | 37.3mm | 25.4mm | 80.0mm | 73.8mm | 14.3mm |
| 115RE | 56.9kg | 6 5/8" | 5" | 2 23/32" | 1 11/16" | 1 1/8" | 3 13/16" | 2 7/8" | 5/8" |
Kunshan Signum Machinery Technology Co.,Ltd is a professio
nal supplier of asce40 Steel Crane Rail.
We can provide railway fastening products according to customers drawings and samples.Our main products are as following:
1. Screw spike, Coach screw, Drive screw, Sleeper screw, Dog spike, Railroad spike, Lock spike, Cut spike,etc.
2. Rail clip, Tension clamp,SKL clip, Pandrol clip, Deenik clip.
3. Swivel bolts, Track bolt, Special bolts, U bolts, J bolts, Anchor bolts, Foundation bolts, Stud bolts, Rod bolts, Curved bolts, Tunnel bolts.
4. Tie plate, ba
se plate, Rail plate, Rail fixing ba
se, Rail Pads, Sole plate, Sole pad
5. Fish plate, Joint bar, Rail joint, Splice bar.
6. Track bolt, T bolt, Rail bolt, Clamp bolt, Inserted bolt, Clip bolt, Fish bolt, Square bolt, Rod bolt, rail joint bolt.
7. Clamp plate, Rail spring clamp, Anchor plate, Steel clip.
8. Rail Shoulder, Rail sleeper Inserts, Rail Anchors for rail sleepers.
9. Plastic dowel, Guide plate, Nylon insert.
10. Chinese Standard Steel Rail: GB/T11264-89 9kg 12kg 15kg 22kg 30kg steel light rail; Q/YYG001-2008 (formerly YB222-63) 4kg 8kg 18kg 24kg steel light rail. GB2585-2007 38kg 43kg 50kg 60kg 75kg steel heavy rail. YB/T5055/93 QU70 QU80 QU100 QU120 crane rail.
11. German Standard Steel Rail: DIN536 A45 A55 A65 A75 A100 A120 A150 Crane Rail.
12. American Standard Steel Rail: ASTM-A1 ASCE25, ASCE30, ASCE40, ASCE60,ASCE75,ASCE85,90RA,115RE,136RE,175LBs Steel Rail.
13. British Standard Steel Rail: BS11-1985 BS50O,BS60A,BS60R,BS70A,BS75A,BS75R, BS80A,BS80R,BS90A, BS100A, BS113A Steel Rail.
We can make products as per customers' drawings and samples.
