| Engine | Made: SINOTRUK | | | |
| Diesel 4-stroke direct injection diesel engine | | |
| Engine model: WD615.69, Euro II emission standard | | |
| 6-cylinder in-line with water cooling, turbo-charging and intercooling | |
| 336 hp (247 Kw) at 2200 rpm | | | |
| Number of cylinder: 6 | | | |
| Displacement: 9.726 l | | | |
| Bore: 126 mm | | | |
| Stroke: 130 mm | | | |
| Compssion ratio: 29.8 hp/l | | | |
| Specific fuel consumption: 195 g/kWh | | |
| Engine oil filling quantity: 23 l | | | |
| Cooling system filling quantity (long-term filling): 40 l | | |
| Thermostat with 71 º C opening begin | | |
| Single cylinder air compssor | | | |
| Rigid fan | | | | |
| Transmission | HW15710, 10 speeds forward and 2 reverse | | |
| Fuller technology | | | | |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | Steering with double T-cross section beam | | |
| Rear Axle | Pressed axle housing, central single reduction | | |
| Chassis | frame: U-profile parallel ladder frame with section of 350x80x10 mm and reinforced subframe, all cold riveted cross members |
| Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
| Rear suspension: 12 leaf semi-elliptic springs with bogie springs | |
| Aluminium fuel tank: 400 L capacity with locking fuel cap, fitted to the off side of the chassis | |
| Steering | ZF power steering, modol ZF8098, hydraulic steering with power assitance | |
| Brakes | Service brake: dual circuit compssed air brake | | |
| Parking brake(emergency brake), spring energy, compssed air operating on rear wheels | |
| Auxiliary brake: engine exhaust brake | | |
| ABS | | | | |
| Tyre | Tyre: 12.00R20 | | | |
| Driver' s Cab | Volvemiddle roof cab(two seats, one bed), all steal forward control, 2-arm windscreen wiper system with three speed, laminated windscreen with | |
| casted-in ratio aerial, hydraulically damped adjustable driver' s seat, with heating and ventilating system, exterior sun visor, safety belts, |
| adjustable steering wheel, air horn, air conditioner, with transverse stabilizer | |
| | | | |
| Electrics | Operating voltage: 24 V, negative grounded | | |
| Starter: 24 V, 5.4 Kw | | | |
| Alternator: 3-phase, 28 V, 1500 W | | |
| Batteries: 2 x 12 V, 165 Ah | | | |
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |
| Instrument Panel | Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators |
| of compssed air pssure, coolant temperature, engine oil pssure and battery charging | |

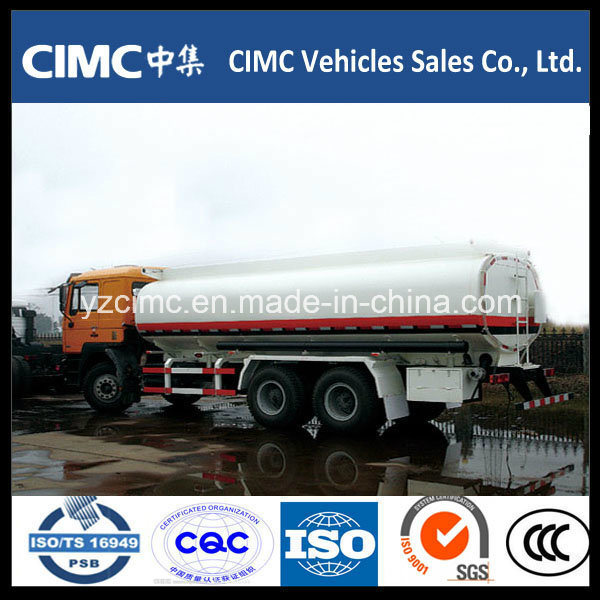

| Water Tank | Thinkness of Tank(mm) | | | 5 |
| Weight(kg) | | | | 2900 |
| Rufuel Box Volume(L) | | | 18000 |
| Tank Material | | | Q235A Carbon Steel |
| Pump | Model | | | | 80QSB-60/90 |
| Flow Rate( m3/h) | | | 60 |
| Spraying width(m) | | | ≥ 14~18 |
| Spraying Vertical Range(m) | | | ≥ 26 |
| Dimensions mm | Wheel base | | | 4600+1350 |
| Front wheel track | | | | 2022 |
| Rear wheel track | | | 1830 |
| Front overhang | | | | 1500 |
| Rear overhang | | | | 2650 |
| Overall length | | | | 10900 |
| Overall width | | | | 2496 |
| Overall height | | | | 3050 |
| Weight kg | Gross vehicle weight | | | | 25000 |
| Rated loading capacity | | | | 32000 |
| Front axle loading capacity | | | | 7500 |
| Rear axle loading capacity | | | | 2*16000 |
| Performance | Maximum driving speed (km/h) | | | | 75 |
| Maximum gradeability (%) | | | | 40 |
| Minimum ground clearance (mm) | | | | 314 |
| Minimum turning circle (m) | | | | 20 |
| Fuel consumption (l/100 km) | | | | 28 |
