Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.Was founded 1999, and it's aleading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes:Electric golf cart, electric utility car, electric perso
nal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles ba
sed on standard ones, etc..It has aworkshop area of 20,000 square meters with 2assembly lines inside.Its daily production capacity is 80 units per day;This can be adjusted with the order volume increasing.It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
| Specifications | Model | EG2048K |
| Key Components | Power Source | Pure Electric |
| Electric System | Both AC and DC system are available |
| Battery | Trojan battery |
| Motor | ADC motor or Chinese Motor |
| Controller | Curtis controller |
| Charger | China origin, input 110V-240V~50Hz-60Hz, |
| Performance | Passenger capacity | 4 |
| Range (loaded) based on flat road at aspeed of 20km/h (km)* | Up to 100 |
| Max.Speed | Up to 40 |
| Minimum turning radius (m) | 4.5 |
| Max.Climbing ability (loaded) | Up to 25% |
| Max.Movement after brake at speed of 20km/h | ≤4m |
| Max.Loading weight | 320kgs |
| Dimensions | Overall dimensions (mm) | 3110x1180X1890 |
| Min.Ground clearance (mm) | 120 |
| Wheelbase (mm) | 2450 |
| Front wheel tread (mm) | 855 |
| Rear wheel tread (mm) | 975 |
| Body and frame | frame | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front body +PP plastic rear body |
| Roof | Injected plastic |
| Electric system | Lighting system and horn | Headlights,front turn signals, taillights, with DC-DC converter, horn,reversing alarm |
| Steering and Suspension | Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | Mechanical brake |
| Suspension system | Front and rear plate spring +cylinder hydraulic shock absorber |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated, |
| Wheel &Tyre | Alumimum wheel &205/50-10 Tyre |
| Options | Hinged Windshield |
| Stainless steel package |
| Meter(available for 48V system) |
| 2 point seat belt |
| Formed seat&backrest vinyl |
| Wood finish Package |
| Inner &Side rear view mirror |
| Solar Panel |
| Cooler |
| On-body charger |
| Right hand drive system |
| 4-wheel hydraulic brake system |
| Enclosure |
| Body Color | Up to 6kinds of standard color for option |
| Loading | Both Assembly and Disassembly are available |

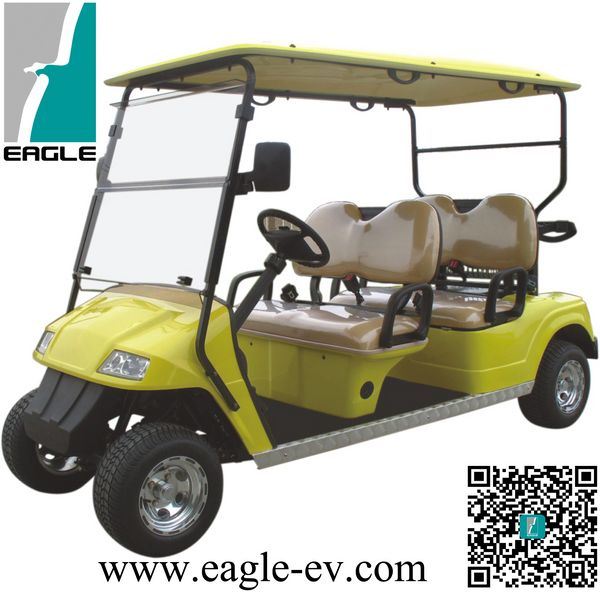

Product Image
