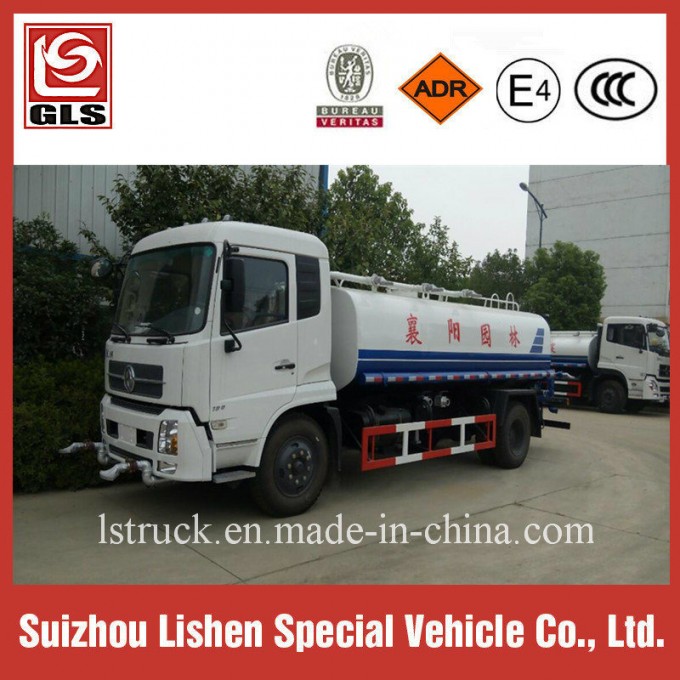

Dongfeng Water Tank Truck 10ton Street Sprinkle

Dongfeng Water Tank Truck 10Ton Street Sprinkle

The brief introduction of water tank truck

Thewatertank truckis also named water sprinkler truck, Pesticide spraying Truck, water fire truck, Multifunction water truck, water spray vehicle.The water sprinkler is suit to spray wash all kinds of road, trees, Lawn green, Buildingconstruction, high speed road.With multifunction, spray, anti-dust, high-low level spray, Pesticide spraying, Fire Water, Guardrail Cleaning and so on.WaterTanktruck also can transport water, drinking water, discharge water and emergency fire function.The main character of thiswater tank truckEquipped with high power self-suction water pump that characterized by high-pssure and fast speed suction.Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.Equipped with fire coupling, flow valves, filter screen and water level gauge.According to customers'request, the crane, high working platform and spraying machine also can be equipped.

Model	SLS5160GSS4 Dongfeng Water Tank Truck
Chassis	DFL1160
Engine	ISDe 180,132kw
Steering	Hydraulic Steering With Power Assistance
No. of Axle	2
Axle Load	6000/10000
Allowable Passangers	3,2
Dimension	8500x2400x3000mm
EffectiveVolume	10 m³
Wheelbase	4500mm
F/R Suspension	1430/2470
F/R Tread	1880/1860
Approachangle(°)	18
Departureangle(°)	10
No.of Tires and Specification	6,10.00R20
G.V.W	16000kg
Rated Loading Capacity	9005kg
Mass In Working Order	6800kg
Max Speed	90 km/h
No.of Leaf Spring Pieces	8/10+8
Tractions	4*2
Breaking System	Air Braking
Electric System	24 V
Fuel Type	Diesel
Hourse Power	180
Tank Capacity	10000 L
Tank Material	Optional,Carbon Steel, Stainless Steel, Aluminum
Pump	Hangzhou Weilong

Main products:
1. Oil Tank Truck
2. Refueling Truck
3. Water Tank Truck/ Water Sprinkler Truck
4. Sewage Suction Truck
5. Sanitation Truck
6. Fuel Tank Semi Trailer
7. Oilfield Truck
8. Chemical Liquid Tank Truck
9. Cement Powder Tank truck/ Bulk cement truck
10. Flatbed Trailer
11. Container Semi Trailer
12. Self-loading Garbage Truck, Garbage Compactor Truck, Sealed Garbage Truck

China Tank Truck Manufacturer.
MOQ: 1unit
Payment Terms: T/T, L/C
Packing: nude cargo
Delivery Time: within 30 days after receipt of the 30% deposit.
