Detailed Description

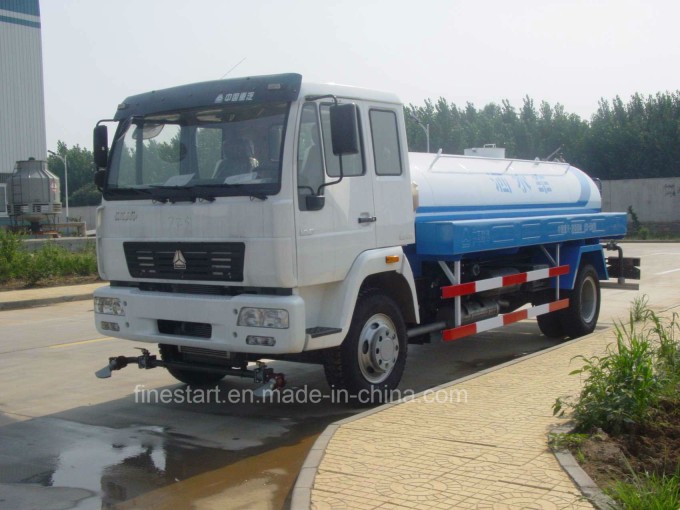

| 10M3 HOWO 4X2 Water Tank Truck with Flat Cab 290 HP |
| Cab | Model | HW76 |
| Driving type | Left hand drive(RHD optional) |
| Type | Flat roof cab with one sleeper bed, with A/C |
| Engine | Model | WD615.87(WD615.62 optional) |
| Max. output | 213KW/2200rpm(290hp) |
| Max torque | 1160Nm/1100-1600rpm |
| Displacement | 9.726 L |
| Type | Inline 6cylinder with water cooling supercharged inter cooling . |
| Clutch | Φ430 diaphragm spring clutch ,hydraulic control air power assisted .Standard 430C for WD615.87 |
| Transmission | HW19710, 10 speeds |
| Front axle | HF9 drum type, 9tons |
| Driving axle | ST16 single reduction, 16 tons |
| Suspension | Front and rear suspension are leaf springs. Front suspension has shock absorbers and horizontal stabilizer, and rear suspension type is the suspension with lateral stabilizer |
| Steering | ZF8098 |
| Brakes | Service brake :dual-circuit pneumatic brake ;
Parking brake :energy storage spring cutoff brake ;
Auxiliary brake :engine exhaust brake;
EVB,ABS and automatic slack adjuster optional |
| Wheel &tires | 12.00R20 (11.00R20 is optional),10+1 spare |
| Fuel tank | 300 L |
| Weight in kg | Curb weight | 7860 |
| Gross vehicle weight | 16000 |
| Rated loading capacity | 8010 |
| Dimension in mm | Overall dimension | 8377 X2496 X3048 |
| Wheel base | 4600 |
| Front/rear wheel track | 2022/1850 |
| Front/rear overhang | 1500/2277 |
| Approach/departure angle | 16 /23(°) |
| Min. ground clearance | 267 |
| Performance | Max. speed | 102 km/h |
| Max. grade ability | ≥50 % |
| Min. turning diameter | 17 m |
| Tank body | Capacity | 10 CBM |
| Thickness of tank body(mm) | 5mm |
| Main equipments | Water pump |
| Options | Full set spraying system,including front and rear sprinkle system,high pssure water gun,etc |
