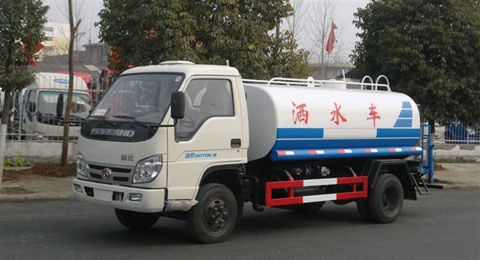

| Foton greening sprinklerTechnical Parameters |
| Product: | Foton greening sprinkler | Overall dimension: | 6990×2170×2210(mm) |
| Chassis model: | BJ1083VDJFA | Compartment dimension: | ××(mm) |
| Gross weight: | 8495(kg) | Approach angle/Departure angle: | 12/20(°) |
| Rated payload: | 4500(kg) | Front/rear suspension: | 1120/2070(mm) |
| Kerb weight: | 3800(kg) | Max speed: | 90(km/h) |
| Engine: | YZ4DB1-30 CY4102-C3C YN38CR CA4DC2-12E3 |
| Displacement: | 4087 3856 3760 3168(ml) | Power: | 95 88 85 88(kw) |
| Manufacturer: | Yangzhou Diesel Engine Co., Ltd./Dongfeng Chaoyang Diesel Engine Co., Ltd./KunmingYunnei Power Co., Ltd/FAW Dalian Diesel Engine Co., Ltd. |
| Emission standard: | GB17691-2005 Euro 3, GB3847-2005 |
| Axle nos: | 2 | Front tread: | 1688(mm) |
| Wheelbase: | 3800(mm) | Rear tread: | 1630,1600(mm) |
| Tyre nos: | 6 | Tyre specification: | 7.50-16,8.25-16,7.50R16,8.25R16 |
| Fuel type: | Diesel | Leaf spring nos: | 9/11+7 |
| Axle load: | 3450/5045 | Passenger nos | 3 |
| Remarks: | Tank volume:4.72 m3, tank dimension(length×longer axis×shorter axis)(mm):4000×1680×1050 |
| More pictures: | |
| Please contact us if you want more product information, we are ready to provide service for you! |
