Detailed Description
ANKAI CITY BUS, DIESEL DRIVEN(EURO V EMISSION), 12M LONG, AUTOMATIC TRANSMISSION, MAIN FEATURES&co
lon;
1. active and passive safety protection
2. energy saving, low fuel consumption
3. excellent comfortability
4. humanistic design
5. anticorrosion technology
| Model | HFF6127GZ-4 City Bus |
|---|
| Profile Dimension(mm) | 12000×2550×2970,3150 |
|---|
| Wheel base(mm) | 6000 |
|---|
| Track Space (mm) | 2096/1890 |
|---|
| F/R Overhang (mm) | 2620/3380 |
|---|
| Kerb Mass (kg) | 10980,11380 |
|---|
| Maximum Total Mass (kg) | 17500 |
|---|
| Max Speed (km/h) | 85 |
|---|
| Max Gradeability (%) | ≥20 |
|---|
| Minimum Diameter of Turning Circle(m) | ≤24 |
|---|
| Ground Clearance(mm) | ≥200 |
|---|
| Approach/Departure Angle(o) | 8/8 |
|---|
| Fuel Tank(L) | 300 |
|---|
| Engine |
|---|
| Model | YC6L260-50 |
|---|
| Position | rear |
|---|
| Displacement(L) | 8.424 |
|---|
| Rated Power(kw) | 191 |
|---|
| Fuel Type | diesel |
|---|
| Emission | EuroV |
|---|
|
| Chassis |
|---|
| Transmission | ZF-Ecolife |
|---|
| Front Axle | ZF |
|---|
| Real Axle | ZF |
|---|
| Suspension | ZF8098 |
|---|
| Steering System | ZF Air Suspension |
|---|
| Brake System | Dual-circuit Air Break |
|---|
| Tyre | 275/70R22.5 |
|---|
| Body |
|---|
| Structure | Monocoque |
|---|
| Door | F & R inward swing doors, F single/double R double door leave |
|---|
| Seats Capacity | 25--46 |
|---|
| Air Conditioner | LUX-VIB-D |
|---|

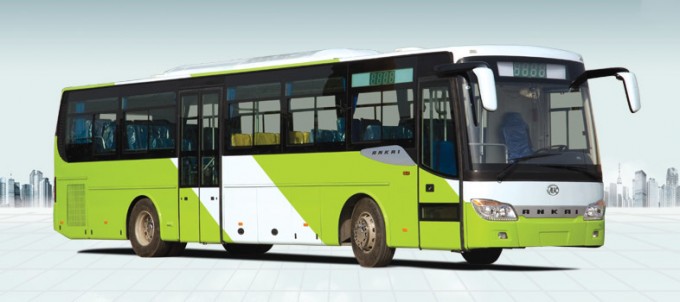

Product Image
