Detailed Description
Kingstar Neptune S6 25-29 Seats Coach Bus, Passenger Bus (Diesel Bus)
Model year: 2018
| SPECIFICATIONS |
| Model | 6760 |
| DIMENSION & WEIGHTS |
| Overall dimension (mm) | Length | 7600 |
| Width | 2130 |
| Height | 2930 |
| Wheelbase (mm) | | 4250 |
| Overhang (mm) | | Front/ rear | 1170/2180 |
| Approach/Departure Angle (°) | ≥14/12 |
| Curb vehicle weight | | (kg) | 5300 |
| Gross vehicle weight | | (kg) | 7500 |
| Seating capacity | | (persons) | 30+1 seats, 2+2 type (seats could be reduced) |
| | |
| ENGINE |
| Model | Cummins EQB125-20
Euro 2emission standard diesel engine (front mounted) | YUCHAI YC4D140-20 Euro 2emission standard diesel engine (front mounted) |
|
| Type | | | 4 cylinders inline, 4 stroke, turbocharged inter cooled, water cooled, | 4 cylinders inline, 4 stroke, turbocharged inter cooled, water cooled, |
| Displacement | (cc) | 3900 | 4212 |
| Max. Power | (kw/rpm) | 92/2800 | 103/2800 |
| Max. Torque | (N.m/rpm) | 410/1500-1800 | 420/1600-1900 |
| Emission | | Euro 2 | Euro 2 |
| Fuel tank capacity | | (L) | 80 | 80 |
| Fuel consumption (100km) | 18L | 19L |
| DRIVE TRAIN |
| Clutch | | Single, dry,φ350, hydraulic air booster |
| Gearbox | | 5 forward gears manual |
| CHASSIS |
| Rear axle | | drum brake,integral axle housing, single reduction final drive |
| Front axle | | drum brake, ends fist, I section |
| Suspension | Front/ rear | Leaf spring 4/4 with stabilizer |
| Steering system | | Integral power steering, LHD |
| Braking system | | | Dual-circuit air brake service brake, energy storage spring parking brake |
| Tires | | 7.50R16 (with a spare tire) |

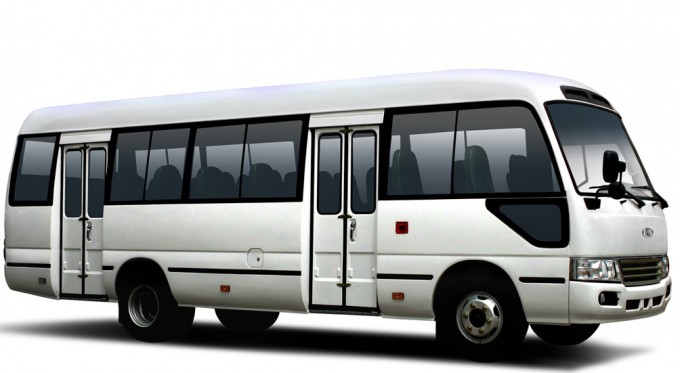

Product Image
