Stainless Steel/Carbon Steel/Alloy Alumimun Optional 3 Axles Tanker Container Oil Water Fuel Carrier

FUNCTIONS:

1. This seriesFuel Tanker semi trailersare mainly used in liquid, especially fuel, crude oil transportation.
2. The volume varies widely from 10 cube meters to 70 cube meters, we can manufacture it according to your needs.
3. The axles can be Fuwa /Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The tanker inside can be double or other numbers isolated compartments with discharging valves and pipes.

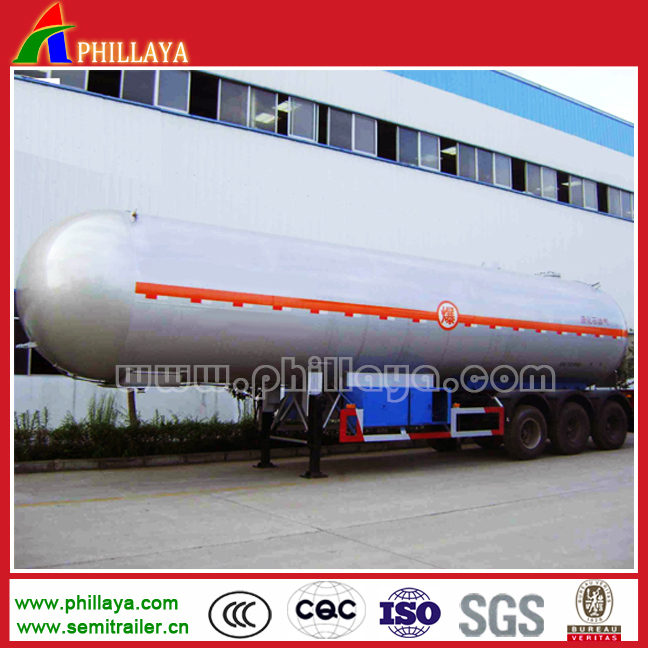

3 axles tri-axle oil water transport fuel tanker semi trailer

Model	PLY9320YGC 3axles50cbm Fuel Tanker Semi Trailer
Wheel base	1310 (mm)
Tyre Specifications	12R22.5
No. Of the Tyres	12 pcsISO Certificated
Axle	13Tonnage
No. Of the Axles	3 pcs
Landing Gear	28 ton capacity Fuwa with static capacity of 80T
Suspension	Heavy duty mechanic suspension with 10 pcs leaf spring
King Pin	2' and 3.5' inter-changeable traction pin
Departure Angle	15
Front/Rear Overhang	1900 mm
Material of the Main Beam	Automatic submerged arc welded Main beams Q345B/ST52-3, through cross beams Q235 Body material Q235B manganese plates, automatic submerged arc welded
Brake System	Automatic air brakes Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber.
Colour	As the buyers' request
Accessory	One tooling boxes ,Two spare tire carrier, Two fire extinguisher
Dimension	12500x2500x3500 mm
Net Weight	11T
Side Wall Thickness	5mm
Spare tire carrier	1 set
Electrical System	24V, 7core socket, lights according to European standards.
Tool Box	1 box of standard tools

Our factory :



Packaging :





BRIEF INTRODUCTION TO OUR FACTORY:
Phillaya international trading Co., Ltd, aspecial vehicle manufacturing corporation
with the professional experience more than 15 years, certified by the Chinese
government manufacture,Majored in semi trailer, special vehicle manufacture, our
products are mainly exported toPhilippine, Bangladesh, Thailand, Myanmar, Vietnam,
Nigeria, Russia, Mongolia,Congo, Kenya, Tanzania, etc...More than 20 countries.
SERVICE WE PROMISED FOR EACH ITEM FROM OUR
FACTORY:
1.CCC&ISO Agreement, 1Year Guarantee Term, Main-beam Lifetime Promise.
2. Small Order Can Be Accepted.
3. Any Color &Logo Available
4. The Product Dimension +Specifications Can Be Designed As Your Needs
DEALING PROCESS:
1.Send us inquiries on your desired product /model through our contact information.
2. We shall reply you within 12 hours.
3. Negotiations on your needed configuration.
4. Configuration on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. Manufacturing process updated news.
9. Production completion.
10. Shipment
11. Custom Clearance
12. A/S service for 1year.
FAQ:
1. Minimum order quantity: 1set
2. Optional payment terms: T/T or L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shipment.
L/C: 30% payment advance, 70% irrepealable L/C at sight.
3. Parts of famous brand can be adopted by your requirement, such as WABCO, JOST, BPW, FUWA.
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T
