High Quality Trailer Parts Mechanical Suspension American Type

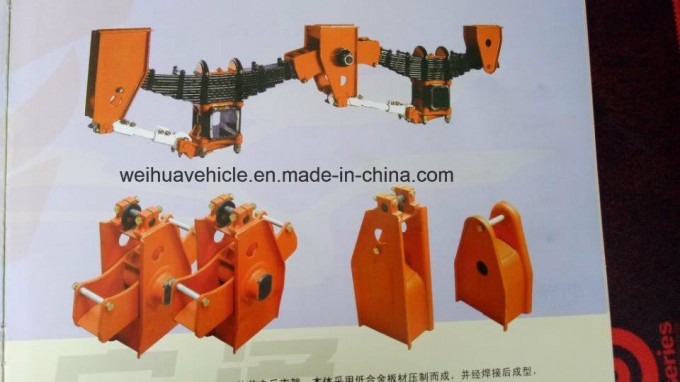

American Type 2 Axle Trailer Mechanical Suspension


Suspension Note (Just for Reference):

1.Can be asked to choose abalance arm pin,50,60 or 70
2.May need to select side wall thickness 6mm ,8mm or 10mm
3.Spring specification:width 90mm,100,120mm ;the quantity of leaves is optional
4. A:Empty load size ,B: Full load size

Volvo Truck Parts Leaf Spring Suspension System
Item No.	Plate Thickness	Height of Towing Plate	A1	B1	H	Leaf Spring Spec
	mm	mm	mm	mm	mm	w*t*leaf no
WH2-1855006	6	1180	473	443	185	90*16*9
WH2-2355006	6	1230	523	493	235	90*16*9
WH2-2555006	6	1250	543	513	255	90*16*9
WH2-1855008	8	1180	473	443	185	90*16*9
WH2-2355008	8	1230	523	493	235	90*16*9
WH2-2555008	8	1250	543	513	255	90*16*9

Following axles with 8holes and 10 holes are waiting for you to choose:
1) 12 ton capacity axle
2) 13 ton capacity axle
3) 14 ton capacity axle
4) 16 ton capacity axle

With the earnest work of our 50 technicians, we have developed diversity of different sizes and types axles for various application.

Details:

5th wheel &King pin: 2'' &3.5'', Forging type
Suspension: 1axle, 2axle &3axle with different steel plate thickness, Bpw type,American type
Air Suspension: 1axle, 2axle &3axle with or without lifting
Bogie: 24tons, 28tons, 32tons,drum and spoke type
Landing Gear: Gear outside &Gear inside with capacity 25tons, 28tons, 30tons and 35tons
Air Chamber: T14, T16, T24, T30, T24T30, T24T24, T30T30
Brake shoe:420*180,420*200,420*220
Drake drum:12T ,14T,16T,18T etc.
Slack adjuster: manual and automatic slack adjuster

Advantages:
. All the equipment of suspension production line adopt digital technique.
. The assembly line adopt automatic spray-painting line and assembly line.One axle assembly can be finished in 90 seconds.
. Pressing production line have 25T to 1200T pssing equipment, controlled speed device, integrated unit automatic gas-welding machine and automatic electrophoretic flow line.
. Quality Control: Spectral analysis, Fatigue test machinery, Salt spray test machine, metallurgical analysis, Rigidity Analysis etc.


Company Information:
Shandong Weihua import & Export Co., Ltd is a research, production and sales in one of the industry and trade enterprises. Itis specialized in research, development, production of semi-trailer and special vehicles.Thefactoryis located in the special vehicle production base -- Liangshan,China.
Our company'smain products are as below:
Low bed semi trailer (including the trailer that can be extended to 53m)Containertrailer: Skeleton container trailers & flatbed container trailersSide wall semi trailerDump semi-trailerBulk cement tank trailerOil/fuel tank trailerVan / box semi trailersemi trailer accessories.
At the same time, we also operate brands of heavy trucks, tractors, engineering machinery and agricultural machinery.
Our factory has 20 years of production experience. It owns complete R&D center, vehicle and parts inspection center, rollover test laboratory, collision test place. The trailer payload is from 20 tons to 300 tons. The production capacity is over 10000 units per year.
Our trailers are widely exported to Russia, Outer Mongolia, Vietnam, Philippines, the middle east, Africa (such as Sultan, Nigeria, Algeria), South America and so on.
The company always adhere to the quality first, customer supme principle for good service to every customer. Each of vehicle that we produced has a high quality and reliability. We always strive to know your business to ensure we provide you thehigh quality trailers and servicing more intimately. You can inquiry usfor a solution to virtually and transport problems you may have. So, you can be assured of optimal operating efficiency, cost control and above all, reliability.
Warmly welcome the friends from all over the world to come for negotiation, cooperation and win-win.

Package&Shipping:
Package: 5set/palet; CKD 60 set/20FCL; By pallets or according to customers' requirements.
Delivery: about 20 ~30 Working Days

FAQ:
Q1: What material of the leaf spring can you supply?
A: We can supply different materials of leaf spring, including 60Si2Mn, SUP9, 51CrV4, or any material as you require. Before placing the order, please make sure the material to us or we can advise the material to you according to your specification.
Q2: How about the quality of your product?
A: Our products are certified to ISO9001, TS16949 international quality standards. We have very strict Quality Control Systems.
Q3: What's your best price for your product?
A: We will quote you best price according to your requirements, so when you making an inquiry, please let us know the quantity and material of the product you need. The more quantity, the better price.
Q4: What's your MOQ?
A: Actually, we have not exact MOQ. But you can save the freight if your order is up to afull container or more.
Q5: Can we print our own logo or label on the products?
A: Yes, you can. We support logo print&label print&stamping, normally the print is free.
Q6: What about the warranty?
A: we are confident with the quality of our products, and we have passed the ISO/TS16949, and got good assessment from our clients. The goods will be packed and in well protection.
