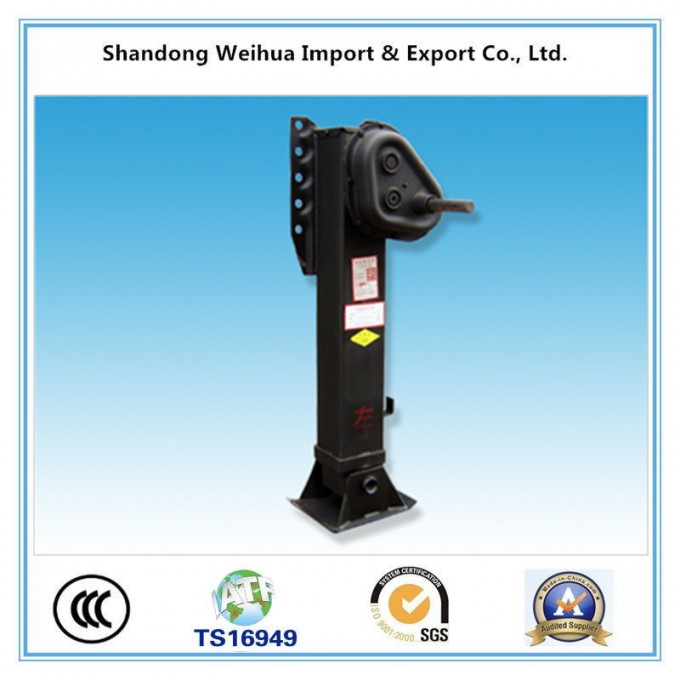

28 Ton Jost Landing Gear, Support Leg, Trailer Parts

China trailer parts 28T landing gear with gear box outside and inside, linkage type and single act type, which can mee your different requirements.

Product description:
1.Model: WH28T
2.Static Load Capacity:80T
3.Lifting Capacity:28T
4.Travel Max:14" 17" 19"
5.High Gear:7.5mm
6.Low Gear:0.83mm
7.Standard Weight:100kg

Type	InboardLandingGear			OutboardLandingGear
Model:	WH25I	WH28I	WH32I	WH25O	WH28O	WH32TO
CAPACITY(Ton/pair)	70	80	90	70	80	90
LIFTINGCAPACITY(Ton)	25	28	30	25	28	32
HIGHGEAR(mm/r)	6	7.5	7.5	4.33	5.42	5.42
LOWGEAR(mm/r)	0.67	0.83	0.71	0.57	0.72	0.72
TRAVELMAX(mm)	355/430/480	355/430/480	366/430480	355/430/480	355/430/480	366/430/480
ASSEMBLYHEIGHT(Kg)	715/790/840	715/790/840	715/790/840	717/790/840	715/790/840	715/790/840
STANDARDWEIGHT(Kg)	86/92/96	86/92/96	94/100/104	90/96/100	90/96/100	101/107/111

Function:
The device is use for semi-trailer and special trailers.
It lift and support trailer when it is separated from tractor.
It's also in use for all sorts of trucks that they are secured to work as jack.
The quality is up to the standard of American ABS specification.

Scope of our business:
1. Lowbed Semi trailer, tanker trailer, container semi trailer, stake semi trailer, side wall fence semi trailer, dumper /tipper semi trailer, heavy duty hidralic moudlar semi trailer, heavy duty fan blade transport semi trailer and so on.
2 Axles (German type axle, English type axle, American type axle, Spoke axle, ZM axle, Agriculture axle, Half axle, Axle without brake)
3. Suspension (Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension)
4. Landing gear
5. Fifth wheel (2'' 3.5'')
6. King pin (2'' 3.5'')
7. Other axles and related parts (Low bed axle, hub, rims, spring, drum...)
