Detailed Description

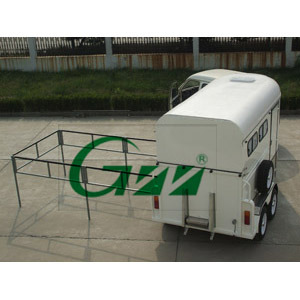

GW 2horse float extension deluxe China im
ported
Soft high quality PVC pads
2side doors,
Rear step, horse yard
Hot dipped galvanised chassis
Fibreglass roof
Any color for free choice
| GW-2HSL-EX | |
| Over Dimension | (LxWxH: mm): 4680x2060x2662 |
| External Dimension | (LxWxH: mm): 3550x1600x2190 |
| Inner Dimension | (LxWxH: mm): 3470x1550x2120 |
| Horse bay | (LxW: mm): 1800x715 |
| Trailer Weight | 1140 KGs |
| Max Payload | 1000 KGs |
| Body frame | Galvanised frame and chassis, galvanised sheet panels |
| Roof | 3-4mm thickness fiberglass |
| Side wall | 6mm thickness rubber matting |
| Floor | 18mm thickness rubber matting |
| Chain | safety chain D-ring, welded chain, |
| Coupler | Φ = 50mm load 3500kg |
| Brake | Electric drum brake in one axle with hand brake system |
| Break away switchwith battery |
| Suspension | 5 leaf spring |
| Axle | 2pcs, 840mm lenght |
| Axle distance | 840mm |
| Light | LED light, rear lights 2pcs, internal roof light 1pc |
| Outer view width light 2pcs, licence board light 1pc |
| Plug | 7 pin plug round or flat |
| Wheels & Tires | 5pcs 195/70R 15C, 14X5 J, including a spare tire |
| Spare wheel Bracket | 1pc |
| Alu decoration | 1.5mm Alu decoration on front and on wheel |
| Breast bar | Galvanised and powder coated breast bar with soft pads, its tube 80x30x2mm |
| Button bar | Galvanised and powder coated button bar with soft pads, its tube 80x40x2mm |
| Hook | galvanised hook for tighting the horse (inside 2pcs, outside 2pcs) |
| Vent | Roof vent with five opening ways |
| Front window | Mould alu alloy front window (950x500mm) |
| Side window | Mould alu alloy side window 4pcs (300x600mm) |
| Rear ramp door | Rear ramp door with spring support: 1600x1220mm |
| Side door | 1650x600mm |
| Option | Pop up door |
| Barn door with hinge |
| Brake away switch with battery |
| Luggage shelf |
| Front tack box |
| Swing out tool box |
| Alloy wheel |
| Folded Awning |
| Gas strut for rear door |
| Extension size available |
