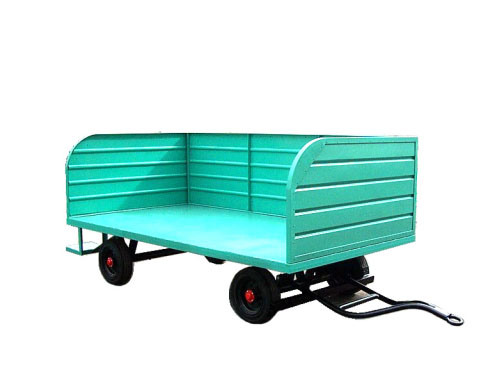

Baggage Carts Airport Aircraft Trolley

Three Rails Baggage Cart Airport Aircraft Transport Trolley








Product Functions
1. The cart is designed to load baggage, wraps and bulk cargo.
2. The rear part is loaded with self-locking hook which pvents the trolley from getting unhooked.
3. The towbar has multi-trolley connection and braking dual functions.
4. The cart with special turnplate in forward shaft turns well in driving.
5. The tire uses the ultra-wearable solid core tire, the service life is long.
6. According to the customer's request, the faceplate can adopt different materials(stainless steelplate or checked steelplate), and we can change the exterior dimension as per customer's request.
7. Loading form: side loading.

Product Technical Parameters
Overall dimension: 4450x1800x1360mm
Flat dimension: 3200x1800mm
Height of working surface: 560mm
Tire specification: 16x5-9 inch
Loading capacit: 2,000kg
Speed: 30km/h
Material of Main Components
frame: standard channel steel (8#)
Rail:steel tube (¢33×3.5mm )
Towbar: seamless steel tube (42x5mm)
Faceplate: checked steelplate(3mm)
Surface Protection: Paint or Galvanised
Use: Airport,Train station,Seaport,ect.
