Detailed Description
China im
ported GW 6 horse trailer angle load, 6horse float
Slidering window, galvanised chassis and f
rame
Heavy duty special coupler with capacity 6tons
Slidering window, galvanised chassis and f
rame, heavy duty special coupler with capacity 6tons.
| Over Dimension | (LxWxH: mm): 8182x2290x2662 |
| External Dimension | (LxWxH: mm): 6842x1830x2190 |
| Inner Dimension | (LxWxH: mm): 6764x1780x2120 |
| Horse bay | (LxW: mm): 2060x660 |
| Trailer Weight | 1950kgs |
| Max Payload | 2880kgs |
| Body frame | Galvanised frame and chassis, galvanised sheet panels |
| Roof | 3-4mm thickness fiberglass |
| Side wall | 6mm thickness rubber matting |
| Floor | 18mm thickness rubber matting |
| Chain | Safety chain D-ring, welded chain, |
| Coupler | Φ =50mm load 3500kg |
| Brake | Electric drum brake in two axle with hand brake system |
| Break away switch with battery |
| Suspension | 8 leaf spring |
| Axle | 2pcs, 840mm length |
| Axle distance | 840mm |
| Light | LED light, rear lights 2pcs, internal roof light 1pc |
| Outer view width light 2pcs, licence board light 1pc |
| Plug | 7 pin plug round or flat |
| Wheels & Tires | 5pcs 195/70R 15C, 14x5J, including a spare tire |
| Spare wheel Bracket | 1pc |
| Alu decoration | 1.5mm Alu decoration on front and on wheel |
| Button bar | Galvanised and powder coated button bar with soft pads, its tube 40x40x2mm |
| Hook | Galvanised hook for tighting the horse (inside 4pcs, outside 4pcs) |
| Vent | Roof vent with five opening ways |
| Front window | Mould alu alloy front window (950x500mm) |
| Side window | Mould alu alloy side window 4pcs (300x600mm) |
| Rear ramp door | Rear ramp door with spring support: 1600x1220mm |
| Side door | 1650x600mm |
| Option | Pop up door |
| Barn door with hinge |
| Brake away Switch with battery |
| Luggage shelf |
| Front tack box |
| Swing out tool box |
| Alloy wheel |
| Folded Awning |
| Gas strut for rear door |
| Extension size available |

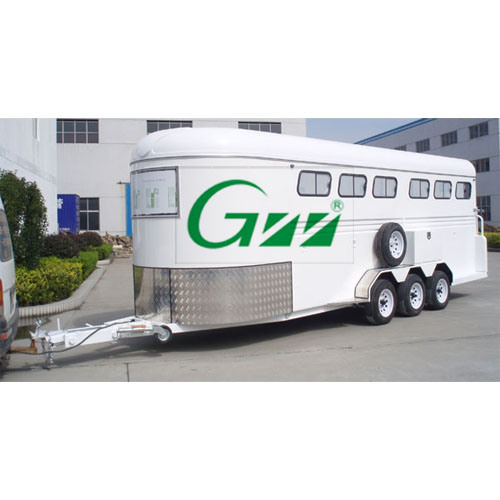

Product Image
