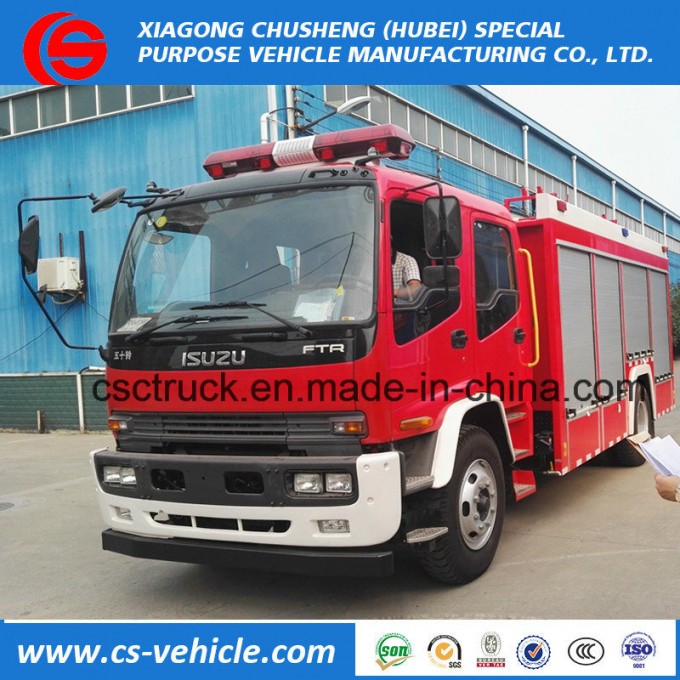

Cccf Certificated Isuzu 4X2 Fire Fighting Truck Water Tank Truck

Technique Parameters

Description	Sinotruk4x2 fire truck
Drive Model	4x2
Chassis	ZZ1257M4647C
Fact cubage	10cbm(water tank:8cbm, foam tank 2cbm)
Vehicle Main Dimensions	Dimensions(L x W x H)(mm)		8450x2500X3660
	Wheel base (mm)		4700
	Overhang (front/rear) (mm)		1335/2265
	Wheel track (front/rear) (mm)		1960/1855
	Approach/Departure angle(°)		26/12
Weight in KGS	Curb Weight		8400KG
	GVW.		16000KG
Max. driving speed(km/h)			85
Engine	Model		ISUZU4HK1-TCG40
	Type		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		190
	engine capacity(ml)		5193
	Emission standard		Euro3
Gearbox	6forwards & 2reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	300
Tire	10-20, 6pcs + 1 spare
Brakes	dual circuit compssed air brake
UPPER
Water tank Volume	6cbm
Foam tank Volume
Loading Capacity	6
Protective material	Carbon steel
Key Equipment
Fire Pump	Mode	CB30.60
	Flow	60L/s
	Pressure	1.0Mpa
Fire Monitor	Mode	PL48
	Pressure	1.0-1.2MPa
	Flow	48L/S
	Fire Distance(water/foam)	65m/60m
	Rotation Angle(°)	360/-30~80

Why you should choose us:

1.Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2.Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3.We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.

We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
