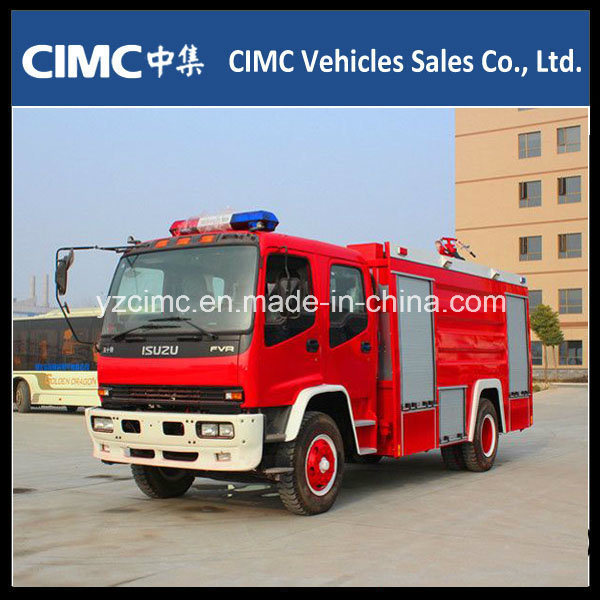

ISUZU FVR FIRE TRUCK

1. Model: SGX5162GXFPM55/QL fire-extinguishing foam truck.
2. Application: applicable to the armed police and oil field, petrochemical enterprises, port terminals, airports and other professional fire brigade, used in large areas of oil fires and general solid fires

3. Key parameter:
GVW(kg): 15585
Curb weight(kg): 9635
Dimension(mm); ≤8015×2480×3470 (L*W*H)
Emission: Euro IV
Loading of fire extinguishing agent(kg): 5500
Fire pump model: CB20/20
Fire protection cannon model: PL24~48 adjustable water / foam dual purpose
Max speed(km/h): 100
Min turning circle(m): ≤15
Gradeability(%) ≥30
Max axle loading(kg):Front/Rear 5595/9990
Wheelbase(mm): 4500
Approach angle / Departure angle(°): 26/13

4. Chassis
Model: ISUZU QL1160AMFRY
Drive: 4×2
Cab: Left hand drive, four door, double row, six seats

4.1. Engine
Model: 6HK1-TCNG40
Power(kW/rpm): 177/2400
Torque(N.m /rpm): 706/1450
Displacement(ml): 7797

4.2. Electric appliance
Circuit type: Single wire, negative grounded
Alternator(V/W): 24×960
Battery(V/Ah): 2×12 /115

4.3. Others
Gearbox: MLD-6Q
Steering: Recalculating ball type, power steering
Brake: Double loop pneumatic brake
Tire: 10.00-20

5. Cab
Type:Four door, double row, six seats, double hydraulic cylinder tilting device
Air condition,excellent stereo system
Instrument panel with fire function switch;
100W alarm control system is installed on the front panel.;
Fire protection communication, vehicle mounted radio power interface;
The rear seat is equipped with 4 air carrier, safety belt;
Reversing monitoring system of 7 inch LCD screen.

6. PTO
Type:Sandwich type
Max torque(N.m): 590
Operation type: Electric control
Cooling mode: Forced water cooling system

7. Fire pump and pipe system

7.1. Pump
Model: CB20/20
Installation mode: Rear-mounted
Material: Pump shaft, stainless steel
Shell,impeller :High strength aluminum alloy
Seal type: Mechanical seal

Key performance:
working condition Pressure(MPa) Flow(L/s)
Low pssure 1.0 40
Middle pssure 2.0 20

7.2. Water diversion device ( automatic disconnection): :
Type: Water ring water diversion device
Suction depth(m): 7
Diversion time (s): ≤35

7.3. Foam proportional mixer:: :
Model: PH32
Mixing rate(%): 6
Flow rate(L/s): 8,16,24,32

7.4. Water pumps character:
Application of international famous Gothic tile pump technology, compact structure, reliable performance;
The automatic water diversion device is adopted to escape from the mechanism, which simplifies the operation steps and shortens the time of water diversion.;
Full import maintenance free mechanical sealing device, improve the reliability of the seal;
The throttle is adjusted appropriately to realize the stepless regulation of the low pssure to the medium pssure, and the injection requirement is reached.

7.5. Piping system:

Material:Pipe using aluminum alloy castings and seamless steel tubes, etc.;
Buckle form:cassette buckle;
Pump water absorption:DN125 backward water inlet form with a pipe interface, filter and cover;
Water tank to pump pipeline: DN125 water suction pipe,Pneumatic butterfly valve control by DN125;
Water outlet:The left and right sides of pump configurates DN80 and DN65 outlet each one, with the interface card and the cover;
Water tank:DN65 ball valve control tank water injection pipeline;
External foam:DN40 ball valve and KY40 copper tube tooth interface and cap; equipped with 2m suction hose;
Gun injection line:DN100 Manual ball valve control;
Discharge residual water pipeline:Hand control of the drain valve is set in the lowest level of pump and pipeline to drain the water;

8. Fire gun
Model: PL24-48
Rated flow (L/s): 32(adjustable)
Working pssure(MPa): 1.0
Foam working range (m): 45
Water working range (m): 50
Horizontal rotation angle (°) 360
Angle of view (°) -28~62

9. Water tank
Type:The overall type, located in the middle of the body, the total load of 5500kg,
Water:4000kg,Foam:1500kg;
Material:high quality steel plate, coated with anti-corrosion coating; 4mm thickness of bottom plate & two sides plate, 3mm thickness of partition plate, 3mm thickness of top plate with non slip large pattern steel plate;
Equipment:The water tank and the foam tank is equipped with diameter of 450mm manhole cover used for fast locking and opening and unloading, water level indicator, tank overflow valve, sewage outfall controlled by valve is also equipped.

10. Upload electrical system

LED installed on the front part of the cab top; red long row of alarm lights;
The back of the roof mounted with a alarm light and external floodlight;
Front-up place on both sides of the truck mounted with LED alarm light;
LED floodlight mounted inside equipment box;
Mounting side marker lamp, front and rear outline lamp, tail sign board and light reflecting mark;
Liquid level indicator, fire pump tachometer, vacuum gauge, pssure gauge, cumulative timer, electrical control switch mounted on pump dashboard.
