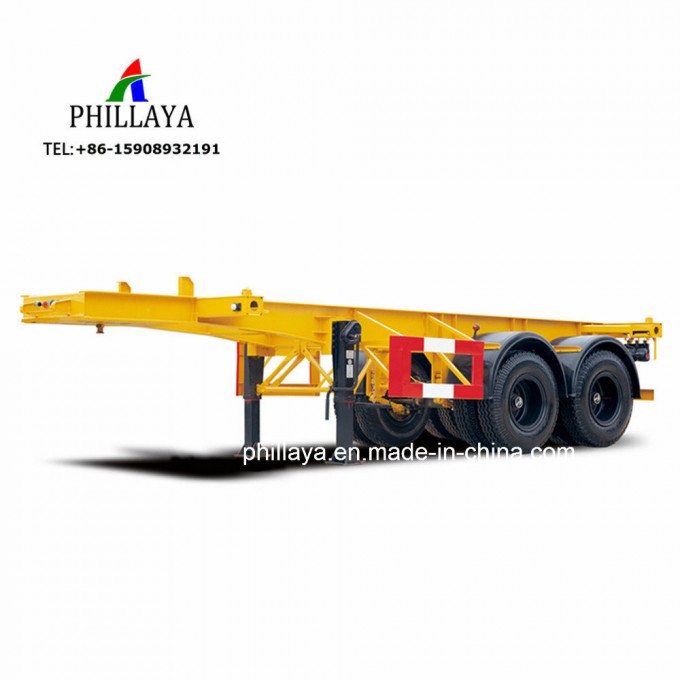

| 20ft-52ft /30-65T ConTAINER LOAD SEMI TRAILER(SKELETON) |
| Dimension | Model | Axles/ Tires | Rated Capacity |
| 20ft | PLY9200GYY | 2 axles/8 tires | 3 axles/12 tires | 30T-45T |
| 30ft | PLY9201GYY | 2 axles/8 tires | 3 axles/12 tires | 30T-45T |
| 40ft | PLY9202GYY | 2 axles/8 tires | 3 axles/12 tires | 45T-60T |
| 45ft | PLY9303GYY | 2 axles/8 tires | 3 axles/12 tires | 40T-65T |
| 48ft | PLY9304GYY | 2 axles/8 tires | 3 axles/12 tires | 40T-65T |
| 52ft | PLY9305GYY | 2 axles/8 tires | 3 axles/12 tires | 40T-65T |
|
| Place of Origin | Shangdong province, China |
| Color | Any color will be available |
| Rated Load | 30000 kg-65000kg |
| Tare Weight | 5000 kg-7000kg |
| Axle Brand | 13Tonnage |
| No. Of the Axles | 2 |
| Pieces of leaf-spring | 10 |
| Suspension | Heavy Duty Leaf Spring |
| Material of the Main Beam | Q345B/ST52-3 manganese plates, automatic submerged arc, Main-beam Height 500mm ,through cross beams Q235, Side Beam: 160 mm
Upper flange :16mm, Mid web :10 mm, Lower flange: 18mm |
| Twist Locks | 12 sets can carry 2x20ft or 1x40' Containers |
| Brake System | Dual Lines Braking System With Automatic Air Chambers |
| Brake Air Chamber | Four double and two single chamber |
| Electrical System | 24V, 7core socket, lights according to European standards. |
| Floor | 3mm management plate |
| Tool Box | 1 box of standard tools |
| Spare tire carrier | 2 sets |
| Color and Logo | Depends on the buyer's requirement. |
Others: Other Size/dimension or configurations will be available by customeri-zation. |
