20 years experience on side semi trailer developing and manufacturing made us the high level leading manufacturer in China. Strong technical team with 280 senior technicians who can make your products innovative and best in your market.
Features:
High strength steel: For material of web plate and key position, it uses high strength low alloy steel.
Strong loading capacity: By using high strength steel and structural innovation, it keeps same loading capacity while reducing tare weight to make sure the loading is within the limit of government required, and at the same time, it reduced the oil co
nsumption and tire wearing.
Custermised producing: dimensions, bumper, fender,tare weight and loading capacity can be designed and produced according to clients requirements. It also can be made into side dump trailer.
Technical Des
cription:

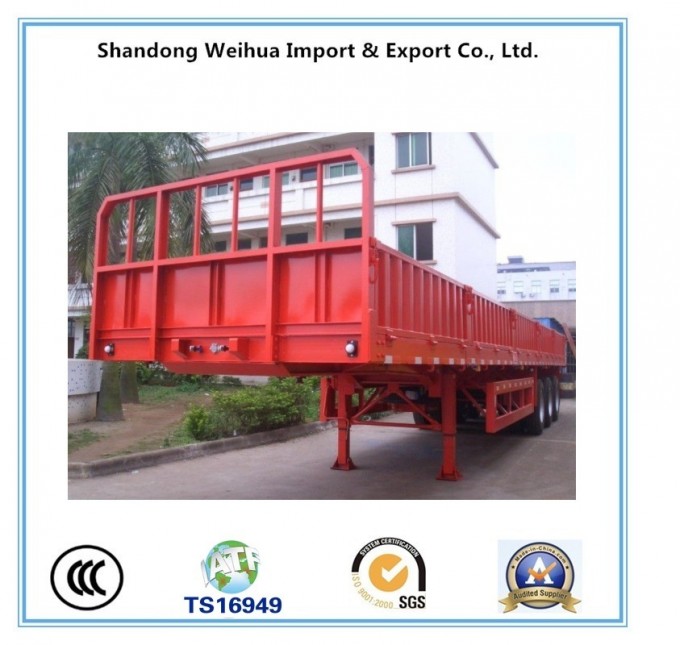

| 40T DROp SIDE SEMI TRAILER |
| Tare weight | 7000kg |
| Size | 13000*2500*600mm |
| Payload | 40T |
Main beam | Material: High tensile low alloy, Q345B
Height of main beam: 500mm
Top flange thickness: 14mm
Middle plate thickness: 8mm
Bottom flange thickness: 16mm
Bottom Plate: 2.5mm |
| Side beam | 16# channel steel(Q235) |
| Cross member | 10# channel steel(Q235) |
| Side wall | Height 600mm thickness 1.5mm |
| Front board | Height 1.5m |
| Axle | FUWA, 3*13T |
| Suspension | Mechanical suspension or air suspension |
| Leaf spring | Leaf spring 10/10/10 or air bag |
| Tire | Triangle Brand, 1200R20-16, 12pcs |
| Kingpin | JOST brand 2" or 3.5" bolt-in king pin |
| Landing gear | JOST C200, two speed |
| Twist lock | Optional |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional |
| Electrical system | 24V; 7ways receptacle; LED lamps |
| Painting | Complete chassis sand blasting to clean rust, first coat of anticorrosive prime, second and third coats of plyurethane |
| Accessories | One standard tool box, 2pcs of spare tire carrier |
Packing and loading:
1. Nude Packing, 3sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation).
2. Cut the rear part which can load two sets in one 40ft container.
3. Keep the trailer original but load two sets in one 45ft container.
Company Profile:
Shandong Weihua im
port &Export Co., Ltd. is specialized in research, development and producing of semi-trailer and special vehicles. The factory is located in the special vehicle production ba
se -- Liangshan, China.
Our company's main products are as below:
ΔLow bed semi trailer (including the trailer that can be extended to 53m)
ΔCo
ntainer trailer: Skeleton co
ntainer trailers &flatbed co
ntainer trailers
ΔSide wall semi trailer
ΔDump semi-trailer
ΔBulk cement tank trailer
ΔOil /fuel tank trailer
ΔVan /box semi trailer
Δsemi trailer accessories.
Our factory has 20 years of production experience. It has complete R&D center, vehicle and parts inspection center, rollover test laboratory, collision test place. The trailer payload is from 20 tons to 300 tons. The production capacity is over 10000 units per year.
Our trailers are widely exported to Russia, Outer Mongolia, Vietnam, Philippines, the middle east, Africa (such as Sultan, Nigeria, Algeria), South America and so on.
The company always adhere to the quality first, customer supme principle for good service to every customer. Each of vehicle that we produced has ahigh quality and reliability.
FAQ:
1. Q: Are you afactory or trading company?
A: We are afactory, and we produce all kinds of Semi Trailers for over 20 years. We warmly welcome your visit to our factory.
2. Q: Wher
e is your factory located?
A: Our factory is located in Industry Park, Liangshan Town, Jining City, Shandong province,China.
3. Q: How long it will take for an order to be delivered?
A: 15 to 20 working days after we received you 30% ppayment or 100% L/C. The specific delivery time depends on the items and the quantity of your order.
4. Q: Can Iget asample or order 1unit?
A: Yes, you can order 1unit and our MOQ is 1set.
5. Q: How a
bout the warranty?
A: 1year warranty and 2years guarantee for all the beam.
6. Q: How a
bout the after sales service?
A: We provide technical support and spare parts for long life time of our products.
Company Advantage:
1- Since 1996, with 20 years experience to offer high quality and competitive prices of semi trailer to our worldwide valuable customers.
2- An professio
nal team which is experienced with internatio
nal market and has strong technical capability to customized cost effective.
3- Sell well in the internatio
nal markets, such as African market (Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market.
4- 2years guarantee for all the beam of trailers.
5-Reliability, safety and eco
nomic transport solutions.
6- Custom production according to demand.
7- Strict quality control, out-standing quality assurance.
8- Stock trailers and immediate delivery.
9-After-sale service available, email will be reply within 8hours.
Co
ntact Information:
Anna Wu
Sales Manager
----------------------------------------------------------------
Shandong Weihua im
port &Export Co., Ltd.
Mobile: +86-15086897596
Tel.: +86-531-82998839
----------------------------------------------------------------
Warmly welcome your visit to factory!
Waiting for your kind enquiry.
