Light Duty 3axle Stake Truck Ues Semi Trailer

Light Duty 3axle Stake Truck Ues Semi Trailer
Product Description

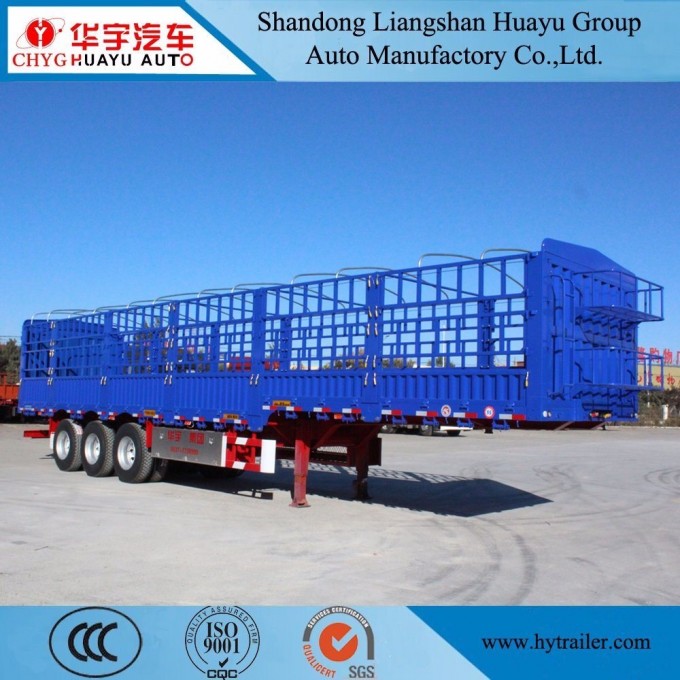

Fence semi trailer for livestock
DIMENSIONS
Tare weight	6800kg
Size	13000mm*2500mm*4000mm
Payload	Approx 50Ton
Main beam	Heavy duty and extra durability designed Ibeam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm;Bottom flange16mm;Middle Flange 8mm;Height500mm.
Side beam	16# channel steel(Q235)
Cross member	10# channel steel(Q235)
Floor	3mm checkered plate
Front board	Manufacture Standard ,height 2500mm
Side wall	2500mm fence
Ladder	Mechanical ladder on the front.
Twist lock	No
Axle	13Ton*3axles
Suspension	Mechanical suspension American type local brand
Leaf spring	Leaf spring 10pcs*90*13mm
Tyre	Trianglebrand 12R22.5 *12units
Wheel rim	9.0-22.5 *12pcs
Kingpin	JOST brand 2"/3.5"bolt-in king pin
Landing gear	JOST brand two-speed, manual operating ,heavy duty landing gear
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	4S2M ,Optional as client's order
Electrical	Voltage 24V, Receptacle 7 ways (7 wire harness),LED lights,One set 6-core standard cable.
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint,Wax spray.
Color	As client's order
Accessories	One standard tool box.One spare wheel carrier chained mode.One crank.One shaft head wrench.Rope hook casting model.Tight rope device *10units per side.
Package	3sets together ,or 40HQ container load 2 sets.
Date of delivery	20 workdays after received 30% down payment.

ProductFeaturesAdvanced technology:Major parts and components of the trailer are processed by advanced equipments. Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.Chassis:To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.Axle:High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety.Suspension:High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.Tool Box:Large capacity water-proof detachable tool box.Hot-rolled structural steelwelded 16Mn steel longitudinal beam and cross member are assembled and welded for chassis assembly. The finished chassis offers bending and deforming resistance with proper rigidity and strength.Tested and proven structureof cargo box is constructed with profiled steel from, corrugated plate and mold pssed steel stake.Reliable dual circuit air brakewith quick release valve and quick repines of wheel cylinder ensures safe on-road and off-road operation.


Packaging & Shipping

Packaging :Nude packing .To save the freight cost, the best way is 3 sets stick togather .Or One 40HQ can load 2 sets.
Shipping:Transport by break bulk carrier ROROor Containerized .
If your country have a high vehicle tariffs, we can export trailer in SKD form(Semi-Knocked Down).So that can be save shipping costs and tariffs.

Our Advantage
1. Variety of products, including all kinds of light trucks, heavy duty trucks, trailers and special vehicles.
2. High quality and competitive price, technology absorbed from the top companies in the world .
3. Quick response to your inquiry, we have special sales team for different markets, like Asia,Africa,Europe,America.
4. Flexible payment terms,we can accept T/T,L/C and installment.
5. Rich experience and stong production capacity, 20 years experience and 20000 units annual output.

FAQ
Q1.Areyouamanufacturer?
Yes,wehavebeenin specialvehiclemanufacturingandmarketiing for over 20 years.

Q2.Whatmarketsdoyour vehicle export to?
Africa,Asia,SouthAmerica,Oceanica,MiddleEast countries etc.

Q3.WhatinformationshouldIletyouknowifIwanttogetaquotation?
Pleaseletusknowthe your purpose,road condition,cargo type,tons of your cargo,dimensions of trailer,quantity etc. The more info you provide, the more accurate model and price you will get.

Q4.Isitavailabletoprintourownbrandonthevehicle?
Totallyacceptableas you wish.

Q5.HowcanIgetthepriceofyourvehicle?
Youcanconnectwithusthroughanyofthefollowingcontactinformation.Ourpersonalizedservicepersonwillrespondyouwithin24hours.
