@@@ ~Please see below specifications for your first reference.
We could customize as your actual demands ~!
More details contact me freely my dear friend, waiting for your call ~!
Box/Van Curtain Side/ Wing Van OpenTruckSemiTrailer
(Other Dimensions Optional) |
| Model | PLY9338G |
| Wheel base | 1310 (mm) |
| Tyre Specifications | 12R22.5 |
| No. Of the Tyres | 12 pcsISO Certificated |
| Axle | 13Tonnage |
| No. Of the Axles | 3 pcs |
| Landing Gear | 28 ton capacity Fuwa with static capacity of 80T |
| Suspension | Heavy duty mechanic suspension with 10 pcs leaf spring |
| King Pin | 2' and 3.5' inter-changeable traction pin |
| Departure Angle | 15 |
| Front/Rear Overhang | 1900 mm |
| Material of the Main Beam | Automatic submerged arc welded
Main beams Q345B/ST52-3, through cross beams Q235
Body material Q235B manganese plates, automatic submerged arc welded |
| Brake System | Automatic air brakes
Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber. |
| Colour | As the buyers' request |
| Accessory | One tooling boxes ,Two spare tire carrier, Two fire extinguisher |
| Dimension | 13000x2500x3800 mm |
| Net Weight | 7T |
| Side Wall Thickness | 3mm-5mm |
| Spare tire carrier | 1 set |
| Electrical System | 24V, 7core socket, lights according to European standards. |
| Tool Box | 1 box of standard tools |

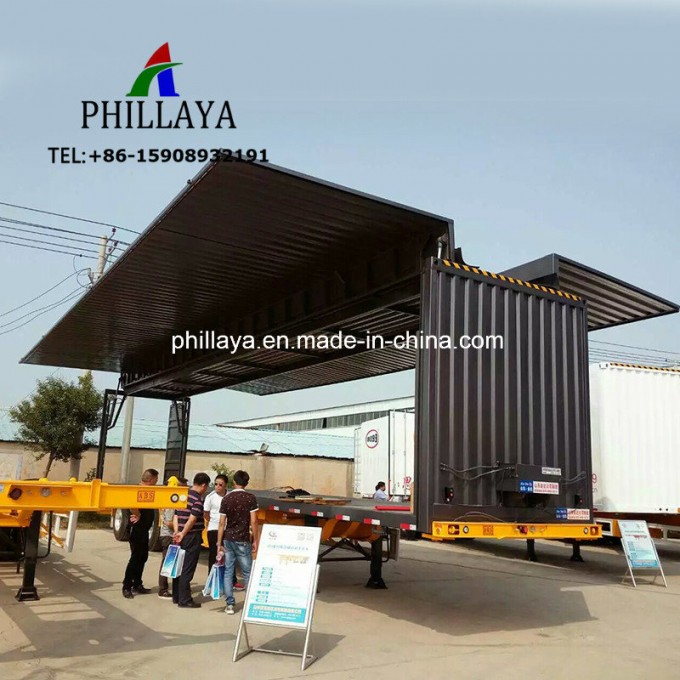

Reference Pictures
