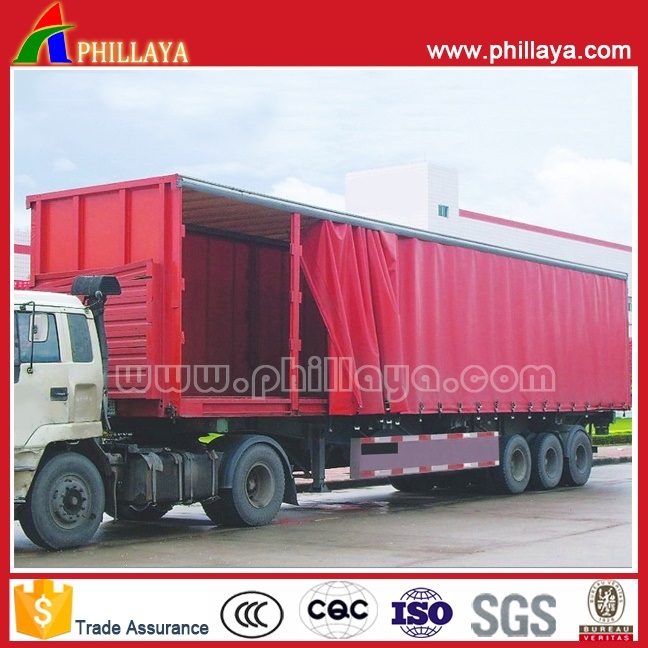

3axles PVC Tarpaulin Truck Cargo Van Box Curtainside Semi Trailer

2018 NEW PRMOTION! $$$BIGSALE FOR YOU


PHILLAYA SPECIAL VEHICLE
*15 years factory direct sale
* 5years exporting experience
* 1year quality qurantee

As an experienced semi trailer manufacturer, we can according to the actual needs, design and manufacture semi trailer specifically for you.
Here provide the curtain side Semi Trailer for Bulk Cargo data sheet for your consideration only:

Multi-Functions 30-80Tonscurtain side semi Trailer(Other Size Optional)
Manufacture	Phil-la-ya Special Vehicle Manufacturing Co., Ltd
Model	PLY9350TJZG
Axle NO	3 pcs
Wheel base	7380+1320+1320 (mm)
Outside Dimension	12450x2500X1580L×W×H (mm)
Tyre specifications	12.00R20 14PR Radio Tire
Tyre No	12 +1 Spare Tire
leaf-spring Pcs	12 pcs
Axle load	13 T
Suspension	Mechanic Heavy Duty Leaf Spring Suspension
Material &Thickness	main beams Q345B/ST52-3 through cross beams Q235 Main beam Height: 500 mm Upper flange :14mm Mid web :8 mm Lower flange: 16mmSide Beam: 160 mm
Brake System	Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber.
Electrical System	24V, 7core socket, lights according to European standards.
Payload	50Tons
High Side Wall	800mm
Tool Box	1 box of standard tools
Spare tire carrier	1 set
Color and Logo	Depends on the buyer's requirement.
The traction pin	3.5' or 2'
Pin Height	According to the height of the tractor saddle.
Tare Weight	6.9 Tons
Floor	4mm diamond plate

Functions of the flatbed curtain side semi trailer
This series curtain side semitrailer. 40ft semi trailers are mainly used in the agricultural products, and bulk cargo transportation.
Curtainside semi trailer, 2 or 3 axles, is designed for beverage transportation, like Cola, beer, wine and other bulk cargo. Curtains are removable and can slide along the alluminum channel.

Optional parts for the curtain side flatbed side wall semi trailer
Axle quantity: 2 axle 3axle 4axle
Axle brand: FUWA /BPW and so on, 12ton, 13ton, 16ton, 18ton, 20ton.
Loading: 20tons -80tons
Dimension:7000MM-180000MM
Side wall height: 600mm-2000mm
Suspension: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
Material: Carbon steel/aluminum/stainless steel material
Usage: bulk cargo, container, bottles transport

We can provide avariety of container transport semi-trailer, side wall cargo transport semi trailer for your choice, if you are not satisfied with the picture, you can contact me directly, tell me your specific requirements, the relative cargo semi trailer can be customized according to your requirements

FAQ:
1. Can ihave samples of this flatbed side wall semi trailerto test the quality?
Yes, you can buy any semi trailer to test the quality, MOQ is 1set.
2. What's the delivery time and can you lower the price?
It depends on the trailer type. The delivery time is within 15 workdays after we received your ppayment. If you make an order of large quantity, then ,we can give discount.
3. Can icustomize the painting and the trailer design?
Yes, we offer customized design and logo for reasonable type.
4. What's the payment method of the trailer?
a.TT 30% as Deposit, Balance Before shipment by TT
b. L/C at sight
5.How do you ensurethe semi trailer quality?
We are direct factory and we have professional quality inspector.We will not let any imperfections departure from our factory.

Phillaya special vehicle company
Is acomphensive corporation, with 20 years producding experience,majored in the technology r& d, import &export of kingds of semi trailers:
1-container flatbed and skeleton semi trailer
2-side wall open semi trailer
3-low bed semi trailer
4-store house bar fence semi trailer
5-van type semi trailers,
6-tanker semi trailer(oil fuel diesel, bitumen,bulkcement, chemical liquid)
(carbon steel, aluminum alloy, stainless steel)
7-LPG&LNG&CNGtank semi trailer
8-dump tipper semi trailer
9-wind blade extendable semi trailer
10-modular trailer etc.
