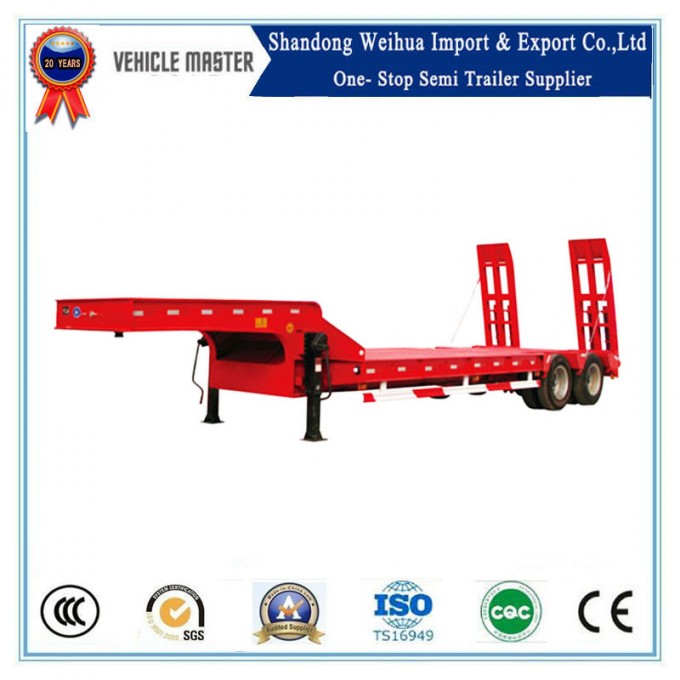

2 Axles Truck Trailer, Low Bed Semi Trailer for Sale

1.Easy Operation 2 Axles Truck Trailer of Low Bed Semi Trailer
Dimension(mm):9500~11500mm x 3000 ~3200mm x 1750~3100mm
(can also be customized according to client's requirements)
Load Capacity: 20T~40T
Axle Number: 2 axles
Tire Number: 8 pcs
Kingpin: 50mm
Tread: 2180mm
Color:Optional

2. Here provide the semi trailer data sheet for your reference only:

TrailerModel	2Axles lowbedSemiTrailer
OverallDimension(LxWxH)	9500~11500mm*3000~3200mm*1750~3100mm
TareWeight(KG)	8.5T~13T
LoadingWeight(KG)	20T~40T
Function	transportlargeequipment,engineringmachinary
AxleBrand	FUWABrand13T/16TAxleorotherbrands
AxleNumber	3ormultiple
Wheelbase(mm)	9000-10000mm
Suspensionsystem	MechanicalSuspension
Rim	6.5/7.5/8.00/8.5
Springleaf	10/10/10leafspringsuspension
Mainbeam	Height:450~500mm.Upperplateis14~25mm,Downplateis16~25mm,middleplateis8~12mm.
MaterialofMainbeam	Q345B
Sidebeam	18~25mmchannelsteelorIbeam
ladder	ManualorHydraulictype
gooseneck	optional
TireTypeandquantity	8.25R20/11.00R20or12R22.5or315/80R22.512~20Pieces
King/Traction/towingPin	50mm
Materialofking/tractionPin	Alloysteel
ToolBox	1Standardtoolbox
LandingGear/supportleg	JOST/FUWAorChinabrand28Tons
Brakeairchamber	6bigdoubleairchamber
ABS	optional
Electricalsystem	1.Voltage:24v2.Receptacle:7ways(7wireharness)
	Taillampwithturnsignal,brakelight&reflector,sidelampetc.
SideGuard	Accordingtocustomer'srequirement
Painting	Colorbycustomer'srequirement
Packing	Nude Package

The serious of lowbed semi trailer includs the different types, such as lowbed, concave beams, pull-out beams andtire exposed. The cross- sectional shape is I-shaped. It features high rigidity and high strength etc. It is adopted 2axles balance or 3axles balance or rigid suspention. It is also installed the weight balance block between the front spring leaf and rear spring leaf, with this balance block, it can make the front /rear axles uniformly forced.
Low bed semi-trailer vehicle parts no tailgate ,widely used, mainly for long-distance freight transport .
Low bed semi-trailer normally used to transport heavy vehicles (such as tractors ,buses, special vehicles ,etc. ), rail vehicles ,mining machinery forestry machinery ,agricultural machinery (such as excavators ,bulldozers ,loaders, pavers ,cranes, etc. )and other heavy-duty cargo ,the lower the center of gravity ,better stability and security ,transportation of goods and by ultra-high- capacity overhead obstacles stronger.
Low bed trailersare widely used for heavy duty goods transportation as its low working platform. So that, there's enough upper loading space. Its low gravity makes the vehicle running safety. We can design low bed trailer model according to yourspecial goods transportation demands.



3.Other information:
Shandong Weihua import & Export Co., Ltd is a research, production and sales in one of the industry and trade enterprises. It is specialized in research, development, production of semi-trailer and special vehicles. The factory is located in the special vehicle production base -- Liangshan, China.Our company's main products are as below:
Low bed semi trailer (including the trailer that can be extended to 53m)
Container trailer: Skeleton container trailers & flatbed container trailers
Side wall semi trailer
Dump semi-trailer
Bulk cement tank trailer
Oil / fuel tank trailer
Van / box semi trailer
semi trailer accessories.
At the same time, we also operate brands of heavy trucks, tractors, engineering machinery and agricultural machinery.
Our factory has 20 years of production experience. It owns complete R&D center, vehicle and parts inspection center, rollover test laboratory, collision test place. The trailer payload is from 20 tons to 300 tons. The production capacity is over 10000 units per year.Our trailers are widely exported to Russia, Outer Mongolia, Vietnam, Philippines, the middle east, Africa (such as Sultan, Nigeria, Algeria), South America and so on.
The company always adhere to the quality first, customer supme principle for good service to every customer. Each of vehicle that we produced has a high quality and reliability. We always strive to know your business to ensure we provide you the high quality trailers and servicing more intimately. You can inquiry us for a solution to virtually and transport problems you may have. So, you can be assured of optimal operating efficiency, cost control and above all, reliability.





FAQ:
Whyus?
1- Since 1996, with 20yearsexperience.
2-2 years guaranteeforallthe beamoftrailers.
3-Reliability,safetyandeconomictransportsolutions.
4-Customproductionaccordingtodemand.
5-Strictqualitycontrol,out-standingqualityassurance.
6-Stocktrailersandimmediatedelivery.
7-After-saleserviceavailable,emailwillbereplywithin8hours.

OurAdvantage
1-Withwellexperiencedsemitrailerproductioncompanytoofferhighqualityandcompetitivepricessemitrailertoourworldwidevaluablecustomers.
2-Anprofessionalteamwhichisexperiencedwithinternationalmarketandhasstrongtechnicalcapabilitytocustomizedcosteffective.
3-Sellwellintheinternationalmarkets,suchasAfricanmarket(Sudan,Angola,Zimbabwe,Liberia,Djibouti,Congo,Kenya,Ghanaect.),MiddleEast,SouthAsiaandSouth-Americamarket.
4-2yearsguaranteeforallthebeamoftrailers,timelyshipment.

QualityControl
1-Foreachtrailer,weshoulddothetestingandinspectthequality.
2-Wegiveinspectioncertificateaccordingtocustomerdemandforeverytrailerwhichgivenbyanindependentthirdpartycertificationcompany.
3- We provide out-standing quality assurance.
4-Noanyqualitycomplaintsfor9years.

PerfectService&Support
1-Wheneverreliability,safetyandeconomicisneeded,thereis a solution. Weihua provides the best possible quality semi trailers to worldwide valuable customers.
2-Withafullrangeoftrailerspatepartssupport,sparepartssupplyingwithin3days.
3-Seriouslyconsidercustomer'srequirements,andwelcomedifferentcooperationmodes.
4-Provide professional trailer drawing.
5- Considerate after-sales service & product maintenance.


Shandong Weihua can supply all kinds of semi trailers, we can design and produce according to your requirements.
