80t-100t Low Flatbed/Lowboy Semi Truck Trailer (HTC9406TDP)

80t-100t Low Flatbed/Lowboy Semi Truck Trailer (HTC9406TDP)
3 Axles 13m Length 60tons Gooseneck Lowbed Semi Trailer for Sale
Semitrailer 2/ 3/ 4 axles Low Bed trailer

Company information:
We're one professional manufacturer which refitting special truck and trailer in China,established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development.Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as dump truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We'reone of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises.We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.


We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.


60 Ton Low Bed Semi Trailertruck trailer
Basic Info. Model NO.:SCD Type:SuspensionLoad Capacity:60 Ton Certification:CE, ISO9001, CCC, SGSTread:8580 1310 1310 Grade:Heavy DutyTowing Pin Material:Carbon Steel Universal Joint Type:Rigid Universal JointBrake Pad Material:Semimetal Towing Pin Type:Mushroom TypeTowing Pin Diameter:50mm Differential Gear Type:Gear TypeConnecting Type:Semi-trailer Shape:Low BedAxle Number:3 Tire Number:12Self-dumping:Not Self-dumping ABS Anti-lock Braking System:ABS Anti-lock Braking SystemMaterial:Steel Condition:NewSize:13, 000X3, 000X1, 650 mm Axle Brand:13 Ton Fuwa`Landing Gear:28 Ton Landing Gear Tyre:11.00r20Traction Pin:50mm or 90mm Platform:4mm Diamond PlateSuspension:Mechanical Suspension Brake System:Dual Line Braking SystemColor:Optional Ladder:with LadderExport Markets:North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

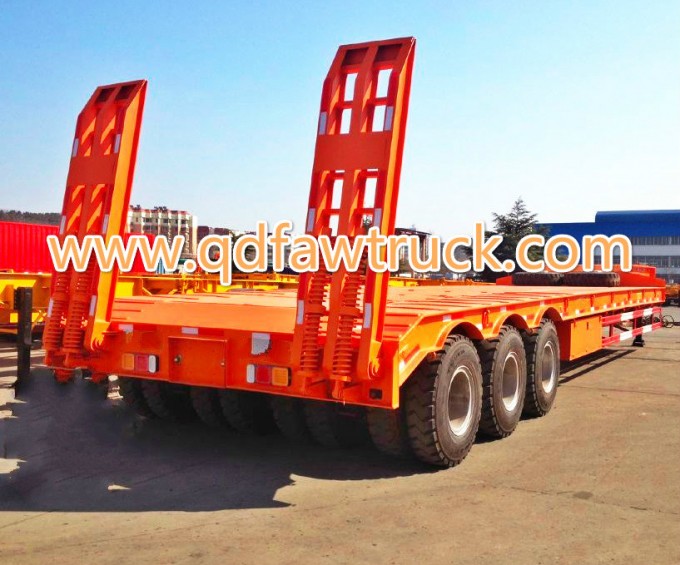

Trailer manufacturer 3 axle 60 ton low bed trailer

1. Detachable kingpin, easy to change; 2.Strong mechanical ladder; 3.China best brand FUWA axle and good brand Triangle brand tyre; 4.Enforeced main and side beam, suitable for bad road condition;





60 Ton low bed semi trailer,
Lowbed Trailer, low bed semi Trailer

Dimension(mm) L*W*H: 13500x3000X1380(MM)
King pin setting(mm) L350
Kin Pin Plate Height (mm) H1350
Axle space(mm) 8110mm+1350+1350mm
Tare weight 9550KGS
Payload 60000KGS
G. V. W. R. 69550KGS
Landing gear Two speed manual operation type with sand shoe
Kingpin 2"Bolted type
Brake system Dual line pneumatic brake system. WABCO brake valve.
ABS (option)
Brake chamber Type 30/30 spring brake chamber
Suspension Spring suspension
Axle FUWA square axle, 16 ton capacity/set, 3PCS
Tire 11.00R20 12PCS
Rim 8.25-20 12 PCS
Tool box 1
Spare tire carrier 2 Units
Floor 4mmchecked plate
Painting As customer request.
Functions:
Transport excavator, loader, trucks, scraper, earth mover, crawler crane, transformer, etc

Technical parameters

Main parameters
Overall dimensions(LxWxH)	13000x3000x1650 mm
Working platform size(LxWxH)	9000x3000x1550 mm, or tell us your requirements
Loading capacity	60 ton
Main beam	Height of the beam is 500mm Upper plate is 16mm, down plate is 18mm, middle plate is 10mm
Platform size	3mm
Chassis
Axle	Fuwa brand axle 13 ton x 3
Wheel base	8580 + 1310 + 1310 mm
Suspension	Mechanical suspension
Spring	leaf spring 10 / 10 /10
Traction pin	2" or 3.5"
Landing leg	standard 28 ton
Ladder	Mechanical ladder
Tire	Triangle brand 12R22.5 tubless tyre
Accessories
Brake	6 big double chamber
Tool box	1 unit
Spare tyre carrier	2 units
Color	optional

alltypessemitrailers,lowbedsemitrailer,containertransportsemitrailer,sidewallsemitrailer,storehousebarseries,vanseries,carcarriersemitrailer,dumptrailer,tankertrailerseries,concretemixertruckseriesetc.Also,ourbusinesslinerangesfromtheresearch,development,anddesigntothemanufactureandsalesforotherautomobileaccessories,especiallyfortires.OurproductsaremainlyexportedtoPhilippine,Tunisia,Vietnam,Tanzania,Angola,Mongolia,Venezuela,UAE,Kenya,ect

1)Manufacturer,morethan14yrsprofessionalexperience.

2)CCC,SGSandISO9001certificate,one year guaranteetermprovided.

3)Smallordercanbeaccepted.

4)Anycolorandlogowillbeavailable.

5)Productscanbecustom-madeaccordingtoyourdesign,ordiversifiedneeds.
