The direct factory for all kinds of good quality semi trailers
1.15 years experience manufactory
2.CCC,ISO,SGS,BV agree
3.Well designed ,small order accept.
4.Manufacture according to your detail requirements
5.After-sale-support;6 month guarantee term
•Sales Manager: Danielle Xu
•Phone:+86 18363992361
•Website:HTTP://www.aotongtrailer.com

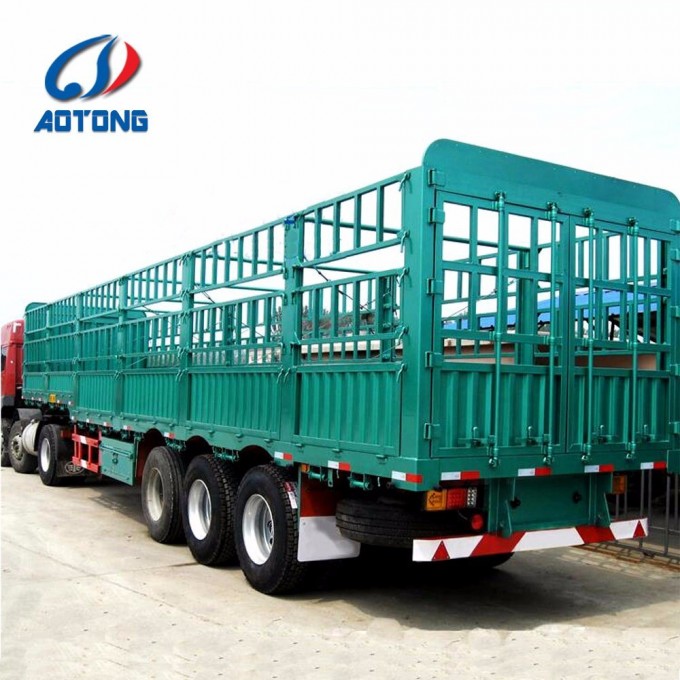

Fence semi trailer
Product Information | |||||
Outside Dimensions (L*W*H) | (6000-17000)*2500*1550mm | ||||
Rated Load | 40T-80T | ||||
Tare Weight | 7000 kg | ||||
Wheelbase | 8390+1310+1310 (mm) | ||||
Tires | specification | 11.00R20,12R22.5,315,385 | |||
No. of tires | 8/12/16 | ||||
Spare tire carriers | 1 or 2 | ||||
Axles | Brand | FUWA (BPW optional) | |||
No. of axles: | 2/3/4 | ||||
Axle-load | 13000kg | ||||
Wheel rim | 7.50-20 rim or 8.00 | ||||
Suspension | rigid suspension,10 pcs leaf-spring | ||||
Break System | Dual line braking system /ABS | ||||
Front/RearOverhang | 1890mm | ||||
Main Beam | material | I beam ,Q345B, automatic submerged arc welded | |||
specification | Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 8mm | ||||
Cross Beam material | Q235B | ||||
Side beam | Channel steel | ||||
Plate form | Steel Sheet 3mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.3mm,4mm,5mm,6mm) | ||||
Accessory | One tooling box with aset of standard trailer tool | ||||
Voltage | 24V | ||||
Receptacle | 7 ways (7 wire harness) | ||||
Lights | Front corner marker lamp :red ;reflector lamp :white | ||||
Side marker :orange | |||||
Rear lamp :red; rear reflector :white; turn single lamp :orange | |||||
Painting ,marking and side guard can according to the customer's requirement | |||||
PACKAGING &SHIPPING
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
FACTORY &PRODUCTS
Qingdao Juyuan International Trading Co., Ltd.is an industry &trade company, with thefactory,ShandongJuyuan Automobile TechnologyCo., Ltd.
Having been in the field oftrailer manufacture since 2001, we are one of the companies which first gained Compulsory Product Certificate (CCC Certificate) from the Ministry of Technology and Information of P. R. C, andISO9001,SGS,BV certificate.
MAIN PRODUCTS
AFTER-SALE SERVICE
THE MAIN COMPonENTS OF THE WARRANTY PERIOD (SEE TABLE):
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
MAIN frame | frame | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |
SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||
KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||
BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |
BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||
AIR RESERVOIR | 6 MONTHS | |||||
ITEM NAME | WARRANTY | |||||
OTHERS | LEAF SPRING | 3 MONTHS | ||||
BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||
EMERGENCY RELAY VALVE | 3 MONTHS | |||||
BRAKE SHOE | 3 MONTHS | |||||
RELAY VALVE | 3 MONTHS | |||||
For more details,please contact:
•Sales Manager: Danielle Xu
•Phone:+86 18363992361
•Website:HTTP://www.aotongtrailer.com
24 hours online,contact us at any time!
Welcome to our factory,we will pick you up at airport.
