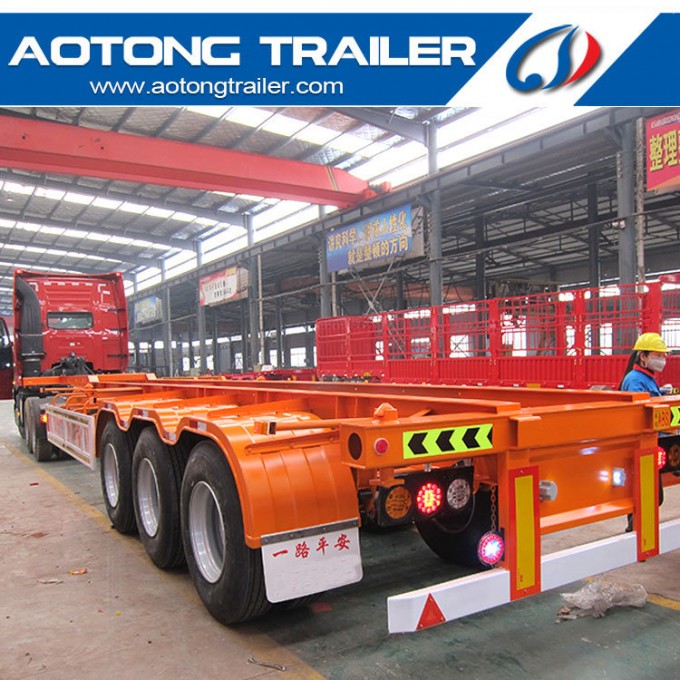

Low Price Skeleton Flatbed Container Semi Trailer for Sale

LOW PRICE ConTAINER SEMI TRAILER

Trailer Specification and details:

1. Model: LAT9380TJZG
2. More than 14 years professional manufacturer experience
3. Be designed according to your requirements
4. CCC ISO9001 SGS agreement
5. Small order can be accepted
6. 1year quality guarantee term
7. We accept 100% inspection, welcome to our factory at any time

Tare Weight	6000KGS
Loading Capacity	60T
Axle Weight Load	13T
Outside Dimension	12450*2500*1580mm
Axle NO.	3
Wheelbase	6800+1310+1310mm
Suspension	Mechanical heavy duty leaf-spring suspension
Leaf-spring pcs	10pcs
Traction Pin	2'or 3.5'
Tire Specifications	11.00R20 14PR,12R22.5 14P
Tyre No	12 +1 Spare Tire
Spare Tire Carrier	1 set
Main Beams	Q345B/ST52-3
Through Cross Beams	Q235
Main Beam Height	500mm
Upper Flange	14mm
Mid web	6mm
Lower Flange	12mm
Side Beam	160mm
Brake System	Dual-pipes braking system/ABS
Brake Chamber	Front two axle is 30 air chamber
Electrical System	24V, 7core socket, lights according to European standards.
Tool Box	1 box of standard tools
Color and Logo	Depends on the buyer's requirement.
Floor	Flatbed or skeleton

THE MAIN COMPonENTS OF THE WARRANTY PERIOD (SEE TABLE):

ITEM NAME				WARRANTY	ITEM NAME		WARRANTY
MAIN frame	frame			1 YEAR	RUNNING GEAR	AXLE	6 MONTHS
	SUSPENSION			6 MONTHS		AXLE BEARING	3 MONTHS
	KING PIN			1 YEAR		WHEEL HUB	3 MONTHS
	BALANCE ARM			3 MONTHS		TIRE	6 MONTHS
ITEM NAME				WARRANTY	ITEM NAME		WARRANTY
BRAKING DEVICE		BRAKE DRUM		3 MONTHS	SUPPORT DEVICE	LANDING GEAR	6 MONTHS
		BRKE CHAMBER		3 MONTHS		SPARE WHEEL CARRIER	6 MONTHS
		AIR RESERVOIR		6 MONTHS
ITEM NAME						WARRANTY
OTHERS			LEAF SPRING			3 MONTHS
			BRAKE CHAMBER DIAPHRAGM			3 MONTHS
			EMERGENCY RELAY VALVE			3 MONTHS
			BRAKE SHOE			3 MONTHS
			RELAY VALVE			3 MONTHS

Application:


Applicable for the transportations of the mechanical equipment, excavators ,bulldozer, large objects, highway construction equipment, large tanks, power plant equipment or machine, and all sorts of steel products.

FAQ
1. How do you transport the semi trailers
We will transport the trailers by bulk or cotainer,we have possess long-termcooperation with ship agency who can provide you lowest shipping fee.

2. Can you satisfy my spacial requirement?
Sure! We are direct manufacturer with 20 years experience and we have strong producing capacity and R&D capacity.

3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension,tyre are purchased centralized by ourselves,every part will be inspected strictly.Moreover,advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.
4.Can Ihave samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1set.

6. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is 15 workdays after we received your ppayment. If you have place an order of large quantities, then ,of course, the price can be lowered.

7. Can Icustomize the painting and the logo?
Yes, we offer customized logo for any type.

8. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight
