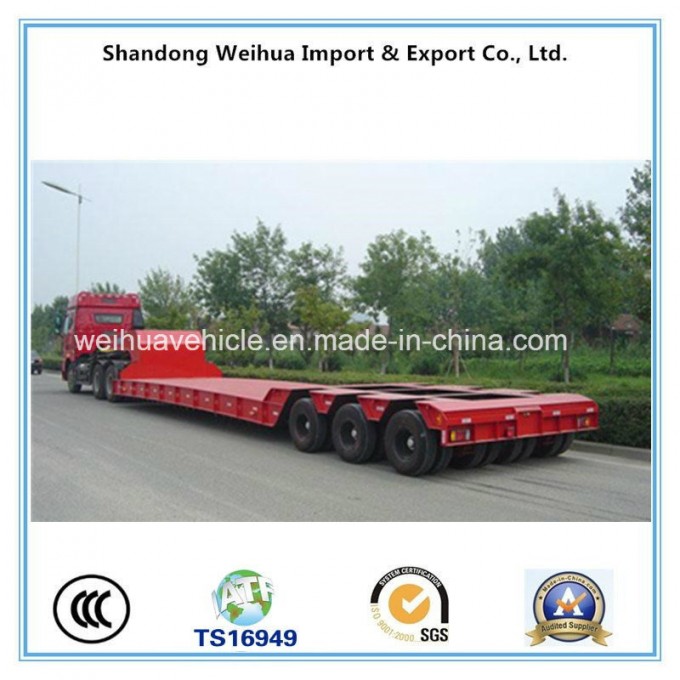

80t Multi-Axle Low Bed Semi Trailer, Heavy Equipment Truck Trailer

Direct factory price ! High quality! Good After-sales Service! If the order is over 3 units, 5% discount will be offered!

Product Feasures:
Main beam: Material ishight strength steel --- Q345B or T700.Web height from 400mm to 550mm, automatic submerged arc welding , shot penningfor frame, beams and stringers penetration welding as a whole.

Strong loading capacity:By using high strength steel and structural innovation, it keeps same loading capacity while reducing tare weight to make sure the loading is within the limit of government required, and at the same time, it reduced the oil consumption and tire wearing.

important components: select the well-known brands of OEM parts, which is durable, and reduce the using and maintenance costs.

Custermised producing:dimensions, tare weight and loading capacity, wheel carrier, bumper, fender ,bool box etc. can be designed and manufactured according to clients requirements.

Loading capacity:from 40 Tons to 100 tons, we can manufacture it according to your needs.

Usuage: Transport the mechanical equipment, largeobjects, highwayconstructionequipment, largetanks,powerplant equipmentormachine,andallsortsofsteelproducts.

Here provide the semi trailer data sheet for your reference only:

Trailer Model	3 Lines 6 Axles low bed Semi Trailer
Overall Dimension(Lx Wx H)	11500~13000mm *30000 ~3500mm *1750~3100mm
Tare Weight(KG)	8.5T ~13T
Loading Weight( KG)	30T~ 100T
Function	Thislowbedtrailerisapplicableforthetransportationsofthemechanicalequipment,largeobjects,highwayconstructionequipment,largetanks,powerplantequipmentormachine,andallsortsofsteelproducts.
Axle Brand	FUWA /BPW Brand 13T /16T /20T Axle or other brands
Axle Number	3 lines with 6 Axles
Wheelbase(mm)	8280+1310+1310mm
Suspension system	Mechanical Suspension, American type
Rim	6.5 /7.5 /8.00 /8.5
Spring leaf	10/10/10 leaf spring suspension
Main beam	Height: 450~500mm. Upper plate is 14~25mm, Down plate is 16~25mm, middle plate is 8~12mm.
Material of Main beam	Q345B
Side beam	18~25mm channel steel or Ibeam
ladder	Manual or Hydraulic type
gooseneck	optional
Tire Type and quantity	8.25R20 /11.00R20 or 12R22.5 or 315/80R22.5, 24 Pieces
King/Traction/towing Pin	50mm /90mm
Material of king/traction Pin	Alloy steel
Tool Box	1 Standard tool box
Landing Gear /support leg	JOST /FUWA or China brand 28Tons
Brake air chamber	12 big double air chamber
ABS	optional
Electrical system	1.Voltage: 24v 2. Receptacle: 7ways (7 wire harness)
	Tail lamp with turn signal, brake light &reflector, side lamp etc.
Side Guard	According to customer's requirement
Painting	Color by customer's requirement
Packing	Nude

Advantage:


Packaging & Transport Way:

1.Nude Packing, 4 units stacked;

2. Bulk Cargo Ship, Ro-ro Ship, or Land Transportation .

Company Profile & Factory View:
Shandong Weihua import & Export Co., Ltd is a research, production and sales in one of the industry and trade enterprises. It is specialized in research, development, production of semi-trailer and special vehicles. Our factory has 20 years of production experience. It owns complete R&D center, vehicle and parts inspection center, rollover test laboratory, collision test place. The trailer payload is from 20 tons to 300 tons. The production capacity is over 10000 units per year.


Our Main Products
* Low bed semi trailer (including the trailer that can be extended to 53m)
* Container trailer: Skeleton container trailers & flatbed container trailers
* Side wall semi trailer
* Dump semi-trailer
* Bulk cement tank trailer
* Oil / fuel tank trailer
* Van / box semi trailer
* semi trailer accessories.

Our Clients:
Our trailers has been exported to many countries, with good competitive price, high quality and excellent sale after service. With the development of these years we have built a global sales network reaching Russia, Outer Mongolia, Vietnam, Philippines, the middle east, Africa (such as Sultan, Nigeria, Algeria), North America, South America and so on. The company always adhere to the quality first, customer supme principle for good service to every customer.


FAQ:
Whyus?
1- Since 1996, With 20yrs experience
2-2YearsGuaranteeforallthethebeamoftrailers
3-Reliability,SafetyandEconomicTransportsolutions.
4-CustomProductionaccordingtodemand
5-Strictqualitycontrol,out-standingqualityassurance
6-StockTrailersandimmediatedelivery
7-After-saleserviceavailable,Emailwillbereplywithin8hours.

OurAdvantage
1-Withwellexperiencedsemitrailerproductioncompanytoofferhighqualityandcompetitivepricessemitrailertoourworldwidevaluablecustomers.
2-Anprofessionalteamwhichisexperiencedwithinternationalmarketandhasstrongtechnicalcapabilitytocustomizedcosteffective.
3-Sellwellintheinternationalmarkets,suchasAfricanmarket(Sudan,Angola,Zimbabwe,Liberia,Djibouti,Congo,Kenya,Ghanaect.),MiddleEast,SouthAsiaandSouth-Americamarket.
4-2YearsGuaranteeforallthethebeamoftrailers,timelyshipment

QualityControl
1-ForEachtrailer,weshoulddothetestingandinspectthequality.
2-Wegiveinspectioncertificateaccordingtocustomerdemandforeverytrailerwhichgivenbyanindependentthirdpartycertificationcompany.
3- We provide out-standing quality assurance
4-Noanyqualitycomplaintsfor9years.

PerfectService&Support
1-Wheneverreliability,safetyandeconomicisneeded,thereisaasolution.Weihuaprovidesthebestpossiblequalitysemitrailerstoworldwidevaluablecustomers.
2-Withafullrangeoftrailerspatepartssupport,sparepartssupplyingwithin3days
3-Seriouslyconsidercustomer'srequirements,andwelcomedifferentcooperationmode.
4-Provide professional trailer drawing
5- Considerate after-sales service & product maintenance

Warranty

ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
MAINframe	frame		1YEAR	RUNNINGGEAR	AXLE	6MONTHS
	SUSPENSION		6MONTHS		AXLEBEARING	3MONTHS
	KINGPIN		1YEAR		WHEELHUB	3MONTHS
	BALANCEARM		3MONTHS		TIRE	6MONTHS
ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
BRAKINGDEVICE		BRAKEDRUM	3MONTHS	SUPPORTDEVICE	LANDINGGEAR	6MONTHS
		BRKECHAMBER	3MONTHS		SPAREWHEELCARRIER	6MONTHS
		AIRRESERVOIR	6MONTHS
ITEMNAME					WARRANTY
OTHERS		LEAFSPRING			3MONTHS
		BRAKECHAMBERDIAPHRAGM			3MONTHS
		EMERGENCYRELAYVALVE			3MONTHS
		BRAKESHOE			3MONTHS
		RELAYVALVE			3MONTHS

If you are interested in this trailer, please feel free to contact Betty Zhang for any Question or inquiry.
Betty Zhang (Manager)
Mobile NO.: 0086-15564131333
