Detailed Description
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.Was founded 1999, and it's aleading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes:Electric golf cart, electric utility car, electric perso
nal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles ba
sed on standard ones, etc..It has aworkshop area of 20,000 square meters with 2assembly lines inside.Its daily production capacity is 80 units per day;This can be adjusted with the order volume increasing.It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Item | Electric fire fighting car |
| Controller | Curtis controller, 400A, imported from USA directly |
| Motor | Rated power 6.3KW (8.6HP)DC motor,7.5KW (10.2HP)AC motor Chinese brand |
| Battery | Trojan battery, 12pcs T105+, imported from USA directly |
| Charger | 72V transfered smart charger, output 110V-240V,50-60HZ,out 72V/25A |
Performance
| Item | Description |
| Passenger Capacity | 2 |
| Range (loaded) (km)* | Up to 42 |
| Max.Speed (km/h) | Up to 55 |
| Min.Turning radius (m) | 5.3 |
| Max.Climbing ability(loaded) | Up to 20% |
| Max.Movement after brake at speed of 20km/h | N/A |
| Max.Loading weight (kgs) | 1500 |
| Charging time (hour) | 8-10 |
| Battery lifespan (cycles) | 750 |
* 1) ba
sed on the test conditions:20km/h speed, flat and straight co
ncrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2)Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (mm) | 4350x1500x2300 (LxWxH) |
| Rear cargo bed dimensions (mm) | 3000x1500x1400 (LxWxH) |
| Min.Ground clearance (mm) | 150 |
| Wheelbase (mm) | 2600 |
| Front wheel tread (mm) | 1280 |
| Rear wheel tread (mm) | 1220 |
Body and f
rame
| Item | Description |
| frame &Chassis | Welded steel framework with sand blasting and painting |
| Cabin | Aluminum frame with FRP cover sheet and glass window |
| Front windshield | Laminated glass with wiper |
| Seat | Reborn sponge with artificial leather, highback |
| Floor | Skidproof leather |
| Rear box | Aluminum material, with side rolling door, with PVC water tank (1.3T) |
| Battery sliding system | Steel frame with sliding wheel |
| Beverage holders | 1 cups holders |
| Side rear view mirror | 2pcs, manual adjustable |
Electric System
| Item | Description |
| Lights | 12V, headlight (H/L beam), front turning light,
Rear taillight (brake light and rear turing light) |
| Horn | Electric horn, 12V |
| Reverse buzzer | Electric, 12V |
| Combination switch | Switch for headlight, turning light, wiper and horn |
| DC/DC converter | 72V/12V |
| Warning light on the top | With siren |
| Audio system | Radio with MP3 receiver, with two waterproof speaker |
| Digital Meter | With Current meter, voltometer, speedometer and various indicators |

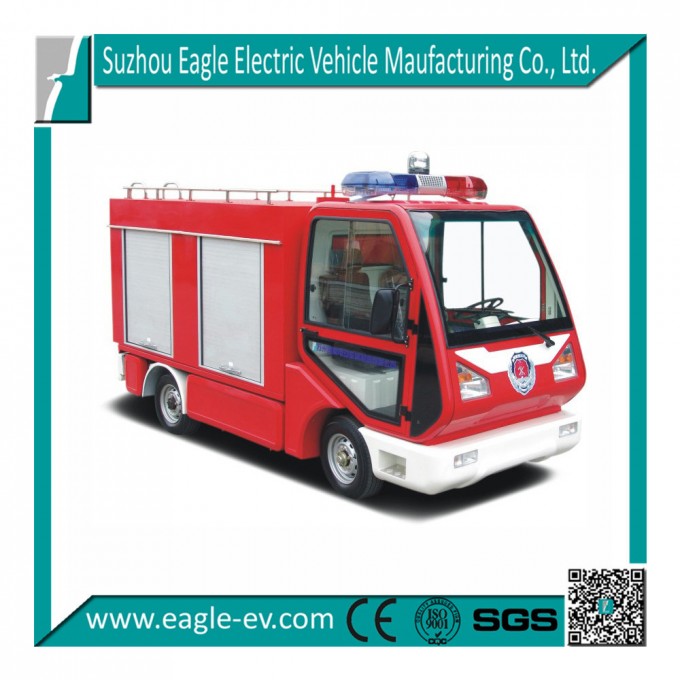

Product Image
