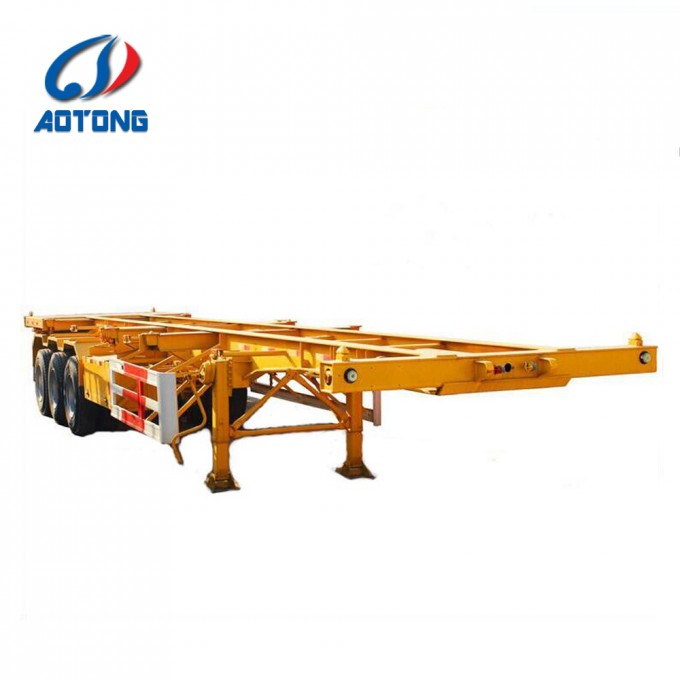

Skeleton Type Semi Trailer
Some Details
Product Informaition
| Product | Flatbed or skeleton type trailer | ||||
| Outside Dimensions (L*W*H) | (6000-17000)*2500*1550mm | ||||
| Rated Load | 40T-80T | ||||
| Tare Weight | 7000 kg | ||||
| Wheelbase | 8390+1310+1310 (mm) | ||||
| Twist lock No | 12 | ||||
| Tires | Specification | 12R22.5-18 | |||
| No.Of tires | 8/12/16 | ||||
| Spare tire carriers | 1 or 2 | ||||
| Axles | Brand | FUWA (BPW optional) | |||
| No.Of axles: | 2/3/4 | ||||
| Axle-load | 13000kg | ||||
| Wheel rim | 7.50-20 rim or 8.00 | ||||
| Suspension | Rigid suspension,10 pcs leaf-spring | ||||
| Brakes | Brand | TKL brand | |||
| Brake chamber | Double air chamber | ||||
| System | Dual line braking system /ABS | ||||
| Main Beam | Material | I beam ,Q345B, automatic submerged arc welded | |||
| Specification | Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 8mm | ||||
| Cross Beam material | Q235B | ||||
| Side beam | Channel steel | ||||
| Plate form | Steel Sheet 3mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.3mm,4mm,5mm,6mm) | ||||
| King Pin | 50# or 90# | ||||
| Landing gear | 28Ton | ||||
| Accessory | One tooling box with aset of standard trailer tool | ||||
| Voltage | 24V | ||||
| Receptacle | 7 ways (7 wire harness) | ||||
| Lights | Front corner marker lamp :Red ;Reflector lamp :White | ||||
| Side marker :Orange | |||||
| Rear lamp :Red;Rear reflector :White;Turn single lamp :Orange | |||||
| Painting ,marking and side guard can according to the customer's requirement | |||||
| Market | Total Revenue (%) | Main Country |
| The Middle East | 22.8 | UAE,Bahrain,Iran,Iraq,Israel,Jordan,Kuwait,Lebanon,Oman Qatar, Saudi Arabia,Syria,Yemen,Egypt |
| Southeast Asia | 21.5 | Vietnam, Philippines,Laos, Kampuchea, Thailand, Burma, Malaysia, Singapore, Indonesia, Brunei, East Timor. |
| Central Asia | 5.5 | Kazakhstan, Uzbekistan, Kyrgyzstan, Turkmenistan, Tajikistan |
| Other Asia country | 5.4 | South Korea,India,Pakistan,Turkey |
| South America | 8.8 | Brazil, Bolivia, Uruguay, Peru, Chile, Argentina, Dominica, Cuba, Venezuela,Nicaragua,Guatemala,Ecuador,Bolivia and so on. |
| Europe | 7.8 | Russia,Belarus and so on. |
| Africa | 27.4 | Congo, Tanzania, Ethiopia, Djibouti, Kenya, Angola, Chad, Egypt, Sudan, Libya, Tunisia, Algeria, Sudan, Egypt, Libya, Eritrea, Uganda, Rwanda,Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone,Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria and the Canary Islands. Cameroon, Equatorial Guinea, Gabon and Zambia, Angola,Zimbabwe, Malawi, Mozambique, Botswana, Namibia, and so on. |
| North America | 0.8 | Canada ,America,Mexico |
