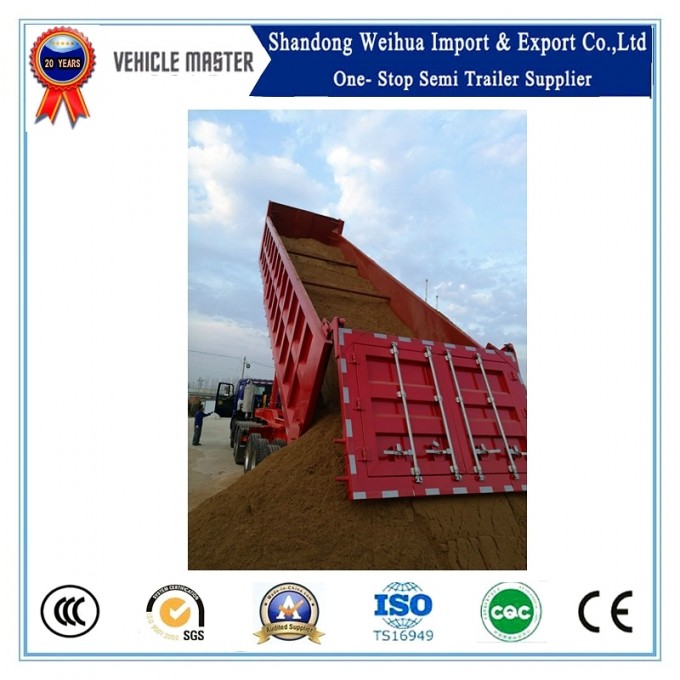

High Quality 80t to 100t Rear Dumper Tipper Truck Trailer

20 years experience on self dump truck trailer developing and manufacturing made us the high level leading manufacturer in China. Strong technical team with 280 senior technicians who can make your products innovative and best in your market.

Features:
High strength steel: For material of web plate and key position, it uses high strength low alloy steel.

Strong loading capacity: By using high strength steel and structural innovation, it keeps same loading capacity while reducing tare weight to make sure the loading is within the limit of government required, and at the same time, it reduced the oil consumption and tire wearing.

Custermised producing: dimensions, tare weight and loading capacity, wheel carrier, bumper, fender ,bool box etc. can be designed and manufactured according to clients requirements. We can also provide SKD or CKD of the dump trailer.



Technical Description:

Trailer Model	rear dumper Semi Trailer
Overall Dimensions	9700~10000mm x2500/2550 x 3600mm
Usage	Mainly appropriate for the transportation of coal, ore, iron core, buildingmaterials and all sorts of bulk cargo products.
Rated Load	80~100T
Tyre Specifications	12.00R20
Tyre number	16 piece
Axle	FUWA /BPW 13T, optional CHINA brands
Axle number	4
Pieces of leaf-spring	Heavy duty leaf spring
Suspension	Heavy duty leaf spring suspension
King/Traction/towing Pin	90mm
Material of king/traction Pin	Alloy steel
Main Beam Material	Q345B manganese plates, automatic submerged arc welded, enforced construction
Landing Gear /support leg	JOST /FUWA 28Tons
Brake Air Chamber	Six double
Floor	Steel Sheet (thickness: 3mm~8mm)
Hidraulic cylinder	1~3, per customers' request
Spare Wheel Carrier	One set of spare wheel carrier including ariser.
Electrical System	1.Voltage: 24v2. Receptacle: 7ways (7 wire harness)
Accessory	One tooling box with aset of standard trailer tool
ladder	Yes
Color	As the buyers' request
Logo	Weihua (WH)
Side Guard	Yes
Package	Bulk /Nude

This series tipping semi trailer is self-loading style designed, and suitable for the transportation of coal, ore, building materials and all sorts of bulk cargo products etc.The loading capacity varies widely from 40 Tons to 80 tons, we can manufacture it according to your needs.The axles can be Fuwa /BPW /JINSHENG with different tonnages by your need with price differences.The suspensions can be heavy duty leaf spring suspension.



Company Profile:
Shandong Weihua import &Export Co., Ltd. is specialized in research, development and producing of semi-trailer and special vehicles. The factory is located in the special vehicle production base -- Liangshan, China.
Our company's main products are as below:
ΔLow bed semi trailer (including the trailer that can be extended to 53m)
ΔContainer trailer: Skeleton container trailers &flatbed container trailers
ΔSide wall semi trailer
ΔDump semi-trailer
ΔBulk cement tank trailer
ΔOil /fuel tank trailer
ΔVan /box semi trailer
Δsemi trailer accessories.
Our factory has 20 years of production experience. It has complete R&D center, vehicle and parts inspection center, rollover test laboratory, collision test place. The trailer payload is from 20 tons to 300 tons. The production capacity is over 10000 units per year.
Our trailers are widely exported to Russia, Outer Mongolia, Vietnam, Philippines, the middle east, Africa (such as Sultan, Nigeria, Algeria), South America and so on.
The company always adhere to the quality first, customer supme principle for good service to every customer. Each of vehicle that we produced has ahigh quality and reliability.


FAQ:

1. Q: Are you afactory or trading company?
A: We are afactory, and we produce all kinds of Semi Trailers for over 20 years. We warmly welcomeyour visit to our factory.

2. Q: Where is your factory located?
A: Our factory is located in Industry Park, Liangshan Town, Jining City, Shandong province,China

3. Q: How long it will take for an order to be delivered?
A: 15 to 20 working days after we received you 30% ppayment or 100% L/C. The specificdelivery time depends on the items and the quantity of your order.

4. Q: Can Iget asample or order 1unit?
A: Yes, you can order 1unit and our MOQ is 1set.

5. Q: How about the warranty?
A: 1year warranty and 2years guarantee for all the beam.

6. Q: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.
