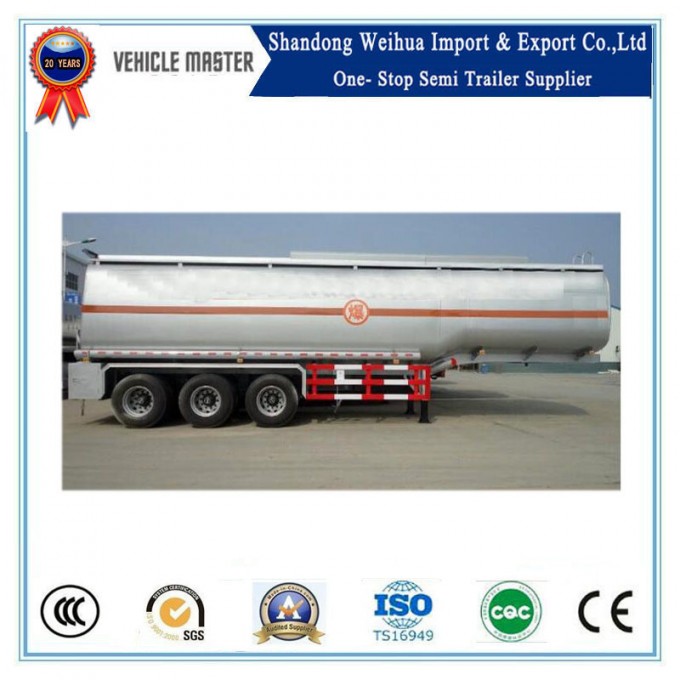

45cbm Petrol / Fuel Tanker Truck Trailer with Fuwa Axle

3 Axles Gasoline, 40,45 cbm Petrol Tank Trailer
Model Number: WHPTT001
Certification: CCC, ISO9001, SGS
Experience: more than 15 years of production & export experience
Be designed as per your requirements.
MOQ: 1 unitDelivery time: within 15 days after we received your payment.
Quality guarantee: 12 monthsWe accept 100% inspection, warmly welcome to our factory at any time.

Here provide the semi trailer data sheet for your reference only.

Overall Size: (Length * Width * Height)	10200- 13000 * 2490 * 3490-3990 (mm)
Tare Weight	about 6.6T
Volume	30 m3-80 m3
Suspension	Heavy duty mechanical suspension or air suspension(brand optional)
Axle	2 or 3 axles, 12T/13T/16T, BPW/FUWA brand
King Pin	JOST 2.00 or 3.5 King Pin
Leaf Spring	90(W)mm×13(Thickness)mm×10 Layers or 100mm×12mm×12 layers
Wheel Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Landing Gear	JOST (D200T) or China Brand 28Tons
Tank Body/End Plate	Carbon steel/stainless steel 304,316/aluminum alloy 5083,5050,5182
Tire	11.00R20/12.00R20/11R22.5/12R22.5/825R20/385/65R22.5 Tire optional
I Beam Material and Technical	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
Wheel base	8060 +1310 (mm), 8560 +1310 (mm)
Compartment	1 to 9 optional
Light	LED 8 side lights and 2 rear lights 2 width lamp
Vehicle application	Oil fuel diesel transport edible oil transport
ABS System	Optional
Painting	Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
Accessories	tool box:1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.)

Packaging and Shipping:


Company Profile & Factory View:
Shandong Weihua import & Export Co., Ltd is a research, production and sales in one of the industry and trade enterprises. It is specialized in research, development, production of semi-trailer and special vehicles. The factory is located in the special vehicle production base -- Liangshan, China.
Our company's main products are as below:
Low bed semi trailer (including the trailer that can be extended to 53m)Container trailer: Skeleton container trailers & flatbed container trailersSide wall semi trailerDump semi-trailerBulk cement tank trailerOil / fuel tank trailerVan / box semi trailersemi trailer accessories.
At the same time, we also operate brands of heavy trucks, tractors, engineering machinery and agricultural machinery.
Our factory has 20 years of production experience. It owns complete R&D center, vehicle and parts inspection center, rollover test laboratory, collision test place. The trailer payload is from 20 tons to 300 tons. The production capacity is over 10000 units per year.
Our trailers are widely exported to Russia, Outer Mongolia, Vietnam, Philippines, the middle east, Africa (such as Sultan, Nigeria, Algeria), South America and so on.
The company always adhere to the quality first, customer supme principle for good service to every customer. Each of vehicle that we produced has a high quality and reliability. We always strive to know your business to ensure we provide you the high quality trailers and servicing more intimately. You can inquiry us for a solution to virtually and transport problems you may have. So, you can be assured of optimal operating efficiency, cost control and above all, reliability.
Warmly welcome the friends from all over the world to come for negotiation, cooperation and win-win.


Our Clients:

FAQ
Why us?
1- Since 1996, With 20yrs experience
2- 2 Years Guarantee for all the the beam of trailers
3- Reliability, Safety and Economic Transport solutions.
4- Custom Production according to demand
5- Strict quality control, out-standing quality assurance
6- Stock Trailers and immediate delivery
7- After-sale service available, Email will be reply within 8 hours.

Our Advantage
1- With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
2- An professional team which is experienced with international market and has strong technical capability to customized cost effective.
3- Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market.
4- 2 Years Guarantee for all the the beam of trailers, timely shipment

Quality Control
1- For Each trailer, we should do the testing and inspect the quality.
2- We give inspection certificate according to customer demand for every trailer which given by an independent third party certification company.
3- We provide out-standing quality assurance
4- No any quality complaints for 9 years.

Perfect Service & Support
1- Whenever reliability, safety and economic is needed, there is a a solution. Weihua provides the best possible quality semi trailers to worldwide valuable customers.
2- With a full range of trailer spate parts support, spare parts supplying within 3 days
3- Seriously consider customer's requirements, and welcome different cooperation mode.
4- Provide professional trailer drawing
5- Considerate after-sales service & product maintenance


Please feel free to contact and looking forward to your visiting factory.
