Home> Products> Trailer>Truck Trailer> Drop Side Truck Trailer of Semi Trailer

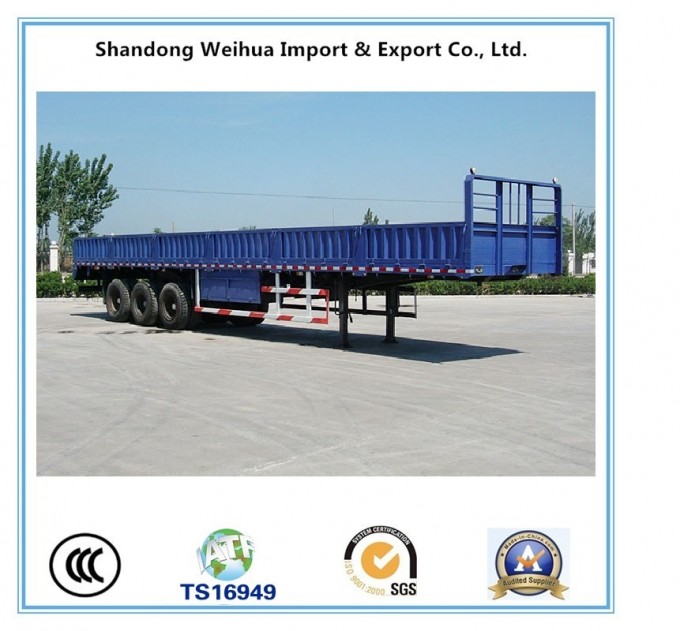

Drop Side Truck Trailer of Semi Trailer
Drop Side Truck Trailer of Semi Trailer

Drop Side Truck Trailer of Semi Trailer

Categories: Trailer , Truck Trailer
FOB Price:9300.00 USD /Unit
Minimum Order Quantity:1 Unit(s)
Supply Ability:58 Unit(s)
Payment Terms:L/C, T/T, D/P, Western
Company Profile
Contact:MrsBettyZhang
E-mail:
Fax:
Capital:US$ 0 Million
Employees: 1-49人 People
Detailed Description
20 years experience on side semi trailer developing and manufacturing made us the high level leading manufacturer in China. Strong technical team with 280 senior technicians who can make your products innovative and best in your market.

Features:

High strength steel: For material of web plate and key position, it uses high strength low alloy steel.

Strong loading capacity: By using high strength steel and structural innovation, it keeps same loading capacity while reducing tare weight to make sure the loading is within the limit of government required, and at the same time, it reduced the oil consumption and tire wearing.

Custermised producing: dimensions, bumper, fender,tare weight and loading capacity can be designed and produced according to clients requirements. It also can be made into side dump trailer.

Technical Description:

3 AXLE SIDE WALL SEMI TRAILER(Drop side semi trailer)

Tare weight

8000kg

Size

12500-13000mm*2500mm*2100-3000mm

Payload

60T

Main beam

high tensile steel Q345, top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm

Side beam

16# channel steel(Q235)

Cross member

10# channel steel(Q235)

Floor

3mm checkered plate

Side wall

Height 600mm thickness 1.5mm

Front board

Height 1.5m

Axle

3 axle13Tbrand optional(FUWA/BPW/HJ/L1)

Suspension

Mechanical suspension Or air suspension

Leaf spring

Leaf spring or air bag

Tire

12R22.5 double star brand 12pcs

Wheel rim

9.0-22.5 better brand12pcs

Kingpin

JOST brand 2" bolt-in king pin

Landing gear

JOST brand two-speed, manual operating ,heavy duty landing gear 24T

Twist lock

Optional

Braking system

WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks

ABS

Optional

Light

LED 8side lights and 2rear lights 2width lamp

Painting

Complete sand blasting to clean rust ,1coat of anticorrosive prime, 2coats of final paint

Accessories

One standard tool box, one shaft head wrenchfour side lighttwo rear light


Packing and loading:
1. Nude Packing, 3sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation).
2. Cut the rear part which can load two sets in one 40ft container.
3. Keep the trailer original but load two sets in one 45ft container.
Drop Side Truck Trailer of Semi Trailer

Company Profile:
Shandong Weihua import &Export Co., Ltd. is specialized in research, development and producing of semi-trailer and special vehicles. The factory is located in the special vehicle production base -- Liangshan, China.
Our company's main products are as below:
ΔLow bed semi trailer (including the trailer that can be extended to 53m)
ΔContainer trailer: Skeleton container trailers &flatbed container trailers
ΔSide wall semi trailer
ΔDump semi-trailer
ΔBulk cement tank trailer
ΔOil /fuel tank trailer
ΔVan /box semi trailer
Δsemi trailer accessories.
Our factory has 20 years of production experience. It has complete R&D center, vehicle and parts inspection center, rollover test laboratory, collision test place. The trailer payload is from 20 tons to 300 tons. The production capacity is over 10000 units per year.
Our trailers are widely exported to Russia, Outer Mongolia, Vietnam, Philippines, the middle east, Africa (such as Sultan, Nigeria, Algeria), South America and so on.
The company always adhere to the quality first, customer supme principle for good service to every customer. Each of vehicle that we produced has ahigh quality and reliability.




FAQ:
1. Q: Are you afactory or trading company?
A: We are afactory, and we produce all kinds of Semi Trailers for over 20 years. We warmly welcome your visit to our factory.

2. Q: Where is your factory located?
A: Our factory is located in Industry Park, Liangshan Town, Jining City, Shandong province,China

3. Q: How long it will take for an order to be delivered?
A: 15 to 20 working days after we received you 30% ppayment or 100% L/C. The specific delivery time depends on the items and the quantity of your order.

4. Q: Can Iget asample or order 1unit?
A: Yes, you can order 1unit and our MOQ is 1set.

5. Q: How about the warranty?
A: 1year warranty and 2years guarantee for all the beam.

6. Q: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.

Company Advantage:
1- Since 1996, with 20 years experience to offer high quality and competitive prices of semi trailer to our worldwide valuable customers.
2- An professional team which is experienced with international market and has strong technical capability to customized cost effective.
3- Sell well in the international markets, such as African market (Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market.
4- 2years guarantee for all the beam of trailers.
5-Reliability, safety and economic transport solutions.
6- Custom production according to demand.
7- Strict quality control, out-standing quality assurance.
8- Stock trailers and immediate delivery.
9-After-sale service available, email will be reply within 8hours.


Contact Information:
Anna Wu (Sales Manager)
Shandong Weihua import &Export Co., Ltd.
Mobile: +86-15086897596
Tel.: +86-531-82998839

Warmly welcome your visit to factory!
Waiting for your kind enquiry.
