China Made LPG Semi Trailer, Hot Sale Fuel Tank Semi Trailer, 3 Axles LPG Gas Truck Semi Trailer

China made LPG Semi Trailer, Hot Sale Fuel Tank Semi Trailer, 3 Axles LPG Gas Truck Semi Trailer

LPG tank semi-Trailer is also called LPG Semi-trailer truck , LPG semi trailer transport truck,is widely used in transportingkinds of LPG. It has large loading quality,safe, stable,etc features.

Production notes:

1, certificate ISO9001,3C, standard 3 axle LPG tanker semi-trailer
2 High quality, low price.
3 Loading LPG tank volume 58.5m3

4 Fuwa, L1 or BPW 3 axles.

5,VerySafety Control System: float liquid indicator, built-in safety valve, emergency cut-off valve, ball valve and etc.

Parameter

LPG Semi Trailer ,hot sale fuel tank trailer,3 axles lpg gas truck trailer
Tare Weight	11500KGS
Pay Load	25000KGS
Overall Length	11400mm
Overall Width	2480mm

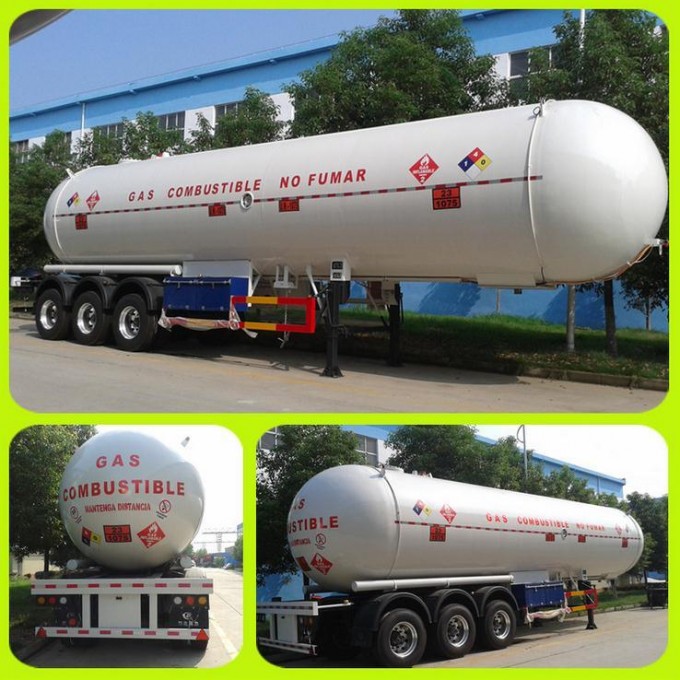

Photo for reference, More product information please consult the product manager.
Tank
Transporting Media		Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane
Shape		Round Shape
Total Volume(m3)		56CBM
Tanker Body Steel Sheet		Q235A/14mm
End plate		Q235A14mm, by punching
Parts for Tank
Manhole cover		3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve
Unloading valve		2-3sets of DN80 fixed at button of Tank
Pipeline at button of tank		4"seamless steel tube/Q235
Labeling system		Oil Type Indication
Anti-static electricity system		pulling, wire carrier, sheet copper (6sheet-standard layout)
Other Parts
Ladder		1 unit at front of Tank
Guard on top of Tank		Zinc galvanized -guard-net
Oil hose box		Circular single hole tube, 1 unit on each side
Oil hose		2 unit, 3" x 6m size in black rubber
Side guard		cross bar-structure
Rear button guard		Fixed type
Work tank deck		Box type
Fire extinguisher box		2 unit at the back of each side
Mud guard		Steel structure in trapezoid form
Lights and wire		24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
Chassis
Main Beams		Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
Axle		3axle
		BPWbrandFUWA brand
Landing Gear		JOSTTwo-speed, manual operating, heavy duty landing gear
King Pin		JOST2"standard bolt-in king pin
Suspension		German design mechanical suspension
Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim		8.25R22.5wheel rim
Tire		11R22.5 tubeless tire with one spare tire
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Company Information

Hubei Chengli Special Automobile Co, ltd which is appointed by Ministry of Industry and Information Technology of China, is a big manufactureeer producingall kinds of special trucks and semi-trailer.

Our company cooperates with famous chassis manufactureer, such asDONGFENG, FAW,SINOTRUK, JAC, SHEMAN, FOTonand etc. We can produce more than 300 kinds of special trucks and semi-trailer.

Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell toAfrica, South-east Aisa, Australia, Middle-eastand other place.

We serve the best service for each client.

LPG Semi Trailer ,hot sale fuel tank trailer,3 axles lpg gas truck trailer

FACTORY SCENE

customer
We have customers from worldwide countries and areas, such asKenya,Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, middle- east,African, South-african, Australianand so forth. We serve the best service for our customers.Welcome all friends come to visit our factory. The series products of our trucks are ideal versions instead of imported ones. With outstanding performance and high quality, they are widelyused in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces. SASO tank collection DOT pssure tank for sale large capacity LPG tank gallons full dimensions

After-sale Service

12months for3 key parts (engine, transmission, axle).

Tracking service time: lifelong.

Third-party service for overseas client.

BPW Axle chemical lpg semi trailer 59000liters LPG tanker semi trailer 3 Axle semi trailer
