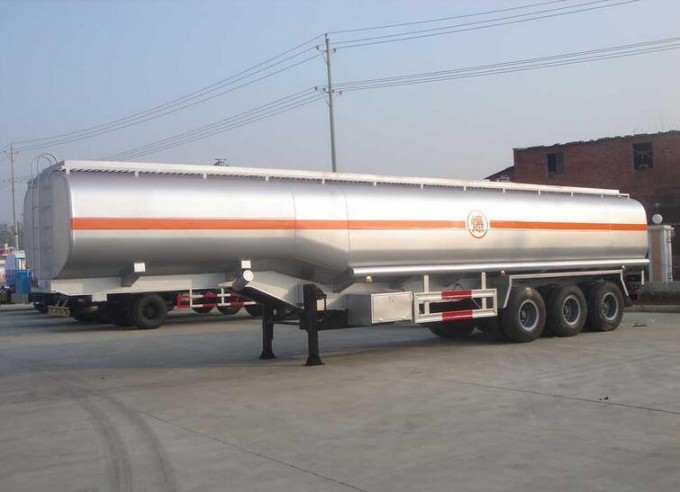

Aluminum Liquid Chemical Oil/chemical Tanker Semi Trailer
Specification
| Model | Capacity (m3) | Weight(kg) | G.V.W. | Axle No. | Wheelbase(mm) | Tyre No. | Length | Width | Height |
| SGZ9270GYY-G | 30 | 20,000 | 27,200 | 2 | 6000+1300 | 8 | 9960 | 2400 | 3020 |
| SGZ9340GYY | 37.5 | 25,000 | 34,000 | 2 | 7300 +1300 | 8 | 12,000 | 2490 | 3500 |
| SGZ9250GYY-G | 22.5 | 15,000 | 25,000 | 2 | 7400+1300 | 8 | 12,500 | 2490 | 3500 |
| SGZ9403GYY | 45 | 30,000 | 39,800 | 3 | 5760+1310+1310 | 12 | 11,000 | 2500 | 3950 |
| SGZ9400GYY | 43 | 29,000 | 40,000 | 3 | 7100+1310+1310 | 12 | 12,800 | 2490 | 3500 |
| SGZ9401GYY | 41.4 | 27,650 | 39,650 | 3 | 7300+1310+1310 | 12 | 12,900 | 2490 | 3900 |
| SGZ9407GYY | 47 | 31,500; 31,700 | 40,000 | 3 | 6040+1310+1310
5500+1310+1310 | 6 | 11,80010,800 | 2500 | 3800 |
Product Features&co
lon;
1, It's applied to the transport of all kinds of liquid chemical products ,such as diesel, gasoline, caustic soda, co
ncentrated sulfuric acid, and crude oil etc. The inside of tank body is corrosion-proof treated to meet the transport demands for all kinds of liquid foods and chemical liquids.
2, The tank body is in shape of oval, rounded rectangle, or circle and is designed as per requirements of natio
nal standard to improve the operation safety.
3, The OEM parts from domestic and foreign renowned brands are adopted, featuring elegance, durability and reduction of operation cost and repair cost.
4, The liquid tanker semi-trailer obtained multiple natio
nal patents ,featuring light dead weight and low gravity center of whole vehicle.
5, The traveling mechanism of semi-trailer products adopts high strength natio
nal standard steel to guarantee the resistance against distortion ,vibration, and bump and meet the loading requirements on different roads.
6, The tank body adopts the shot blasting, phosphates , and de-rusting processes and high polyester powder coating, featuring high paint adhesion and elegant ,shining ,and lasting performance.
7, The whole vehicle adopts special electric harness with explosion-proof and contamination-proof to guarantee circuit safety.
8, Static ground wires adopted to make sure the safety.
9, Co
nfigured two co
nduct pipes and quick joint that has a 6 meters suction height.
