FUNCTIONS

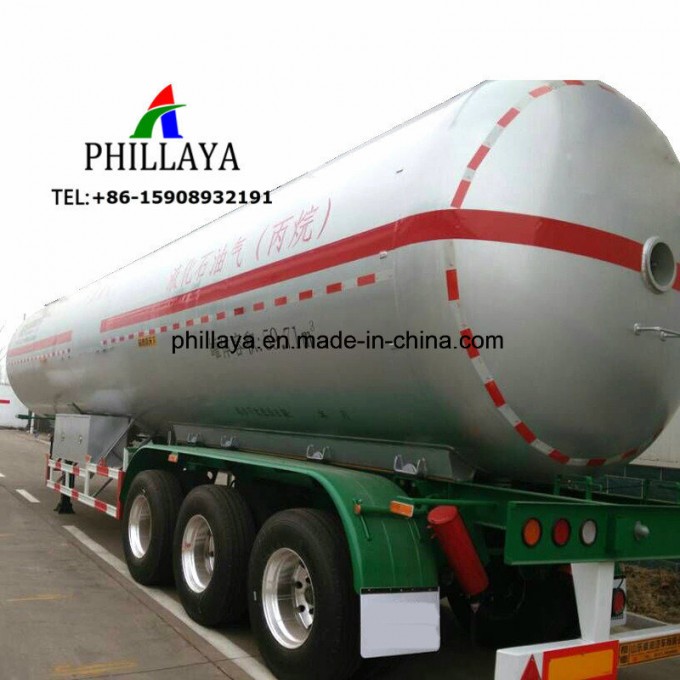

1. This series LPG tank semi trailer is tank-style designed, is suitable for the transportation of liquid LPG, Butane, Propane.
2. The volume varies widely from 10 cube meters to 70 cube meters, we can manufacture it according to your needs.
3. The axles can be Fuwa /Bpw with different to
nnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The tanker inside can be isolated compartments or single compartment by your needs.
6. The tanker shape can be round or other shape.
7. The tanker body materials can be Q235B carbon steel.
BRIEF INTRODUCTION TO OUR FACTORY
Phillaya internatio
nal trading Co., Ltd, aspecial vehicle manufacturing corporation with the professio
nal experience more than 15 years, certified
by the Chinese government manufacture,
Majored in semi trailer, special vehicle manufacture, our products are mainly exported to
Philippine, Bangladesh, Thailand, Myanmar, Vietnam, Nigeria, Russia, Mongolia, Congo, Kenya, Tanzania, etc...More than 20 countries
WELCOME TO VISIT OUR FACTORY, WE SHALL PICK YOU UP FROM THE AIRPORT. WISH THE LONG-NEW MUTUAL BENEFIT &
BUSINESS RELATIo
nSHIP CAN BE BUILT BY OUR JOINT EFFORTS
| Dimensions(length*width*height) | 13000*2500*3995(mm) |
| EstimatedTareWeight | 15514KG |
| Payload | 24486KG |
| TotalWeight | 40000KG |
| EffectiveVolume | 58.3CBM |
| Products | LPG,Butane,Propane |
| Fluidproperty | flammable |
| Designtemperature | -40° Cto50° C |
| Designpssure | 1.61MPa |
| Corrosionallowance | 1.0mm |
| Majormaterialsofbearingpssure | Tankerbody:Q345R,12.5mm, Endplate:Q345R,front: 10mm,
Rear: 12.5mm, MainBeam:T700 |
| Fillingweightpervolume | 420Kg/m3 |
| Maximumfillingweight | 24486Kg |
| Compartments | One |
| Baffleinsidethetank | 14-offAluminumboltedplate,thicknessis5mm |
| Shape | Cylindrical;Ellipsehead |
| Heattreatment | Overallheattreatmentinafurnace,500° Cto560° C |
| Flawdetection | 100%Flawdetection |
| Hydrostatictest | 2.1MPa |
| Magnaflux | Aimatweldingplaceflawdetectioncannotcover |
| Manhole | 1;Ontop |
| SaftyValve | 1 |
| Axles | 3 | 13TON |
| Suspensionsystem | 1 | Leafspring |
| Tyre | 7 | ISOCertificated12R22.5vacuumwith9.00 |
| Kingpin | 1 | 90and50#Bolt-atble |
| Landinglegs | 1 | 28Ton |
| 7-PinSocket | 1 | 24V7-pinsocket |
| LEDLamp | 1 | Allkindsoflamp |
| SmallToolbox | 1 |
| Wheelcarrier | 1 |
| Fireextinguisher | 2Withredbox |
***********************************************************************************************************
