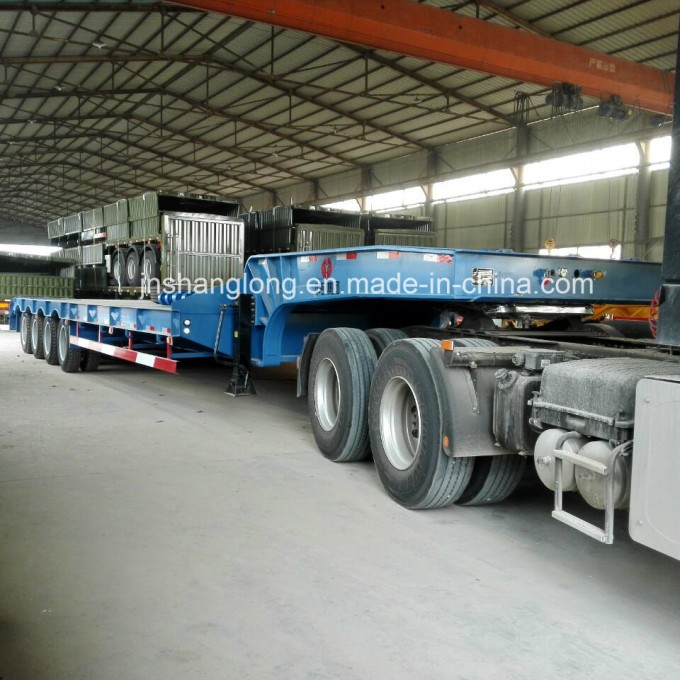

| Weight: | ||
| Loading Capacity | 60T | |
| Tare weight | 14T | |
| Specification: | ||
| Axle number | four axle | |
| Axle specs. | FUWA brand 13T(long axle) | |
| Suspension | Mechanical suspension American type local brand | |
| Leaf spring | Leaf spring 8pcs*90*16mm | |
| Wheel | 8.25R20double star brand16pcs | |
| Dimensions (LxWxH) Loading Dimensions(LxWxH) | 14500mm*3500mm*3500mm 9600x3500x1100mm | |
| Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 24T | |
| King Pin | JOST 3.5" bolt in king pin | |
| Rim | 6.5-20 Jingu brand16pcs | |
| Tire: | ||
| Number of Tire | 16pieces | |
| Spare Tire Carriers | 1piece | |
| frame: (specs. and materials) | ||
| The material of Main beam | Heavy duty and extra durability designed Ibeam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 22mm,width 200mm;Middle Flange 14mm height 500mm;bottom flange 22mm,width 200mm | |
| Side beam Cross member Platform plate | 25# channel steel(Q235) 16# channel steel(Q235) 6mm checkered plate | |
| Ladder | Mechanical ladder | |
| Miscellaneous: | ||
| Brake system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks | |
| Lights | LED 8side lights and 2rear lights 2width lamp | |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint | |
| Accessories | One standard tool box,one crank,one shaft head wrench,four side light,two rear light | |
