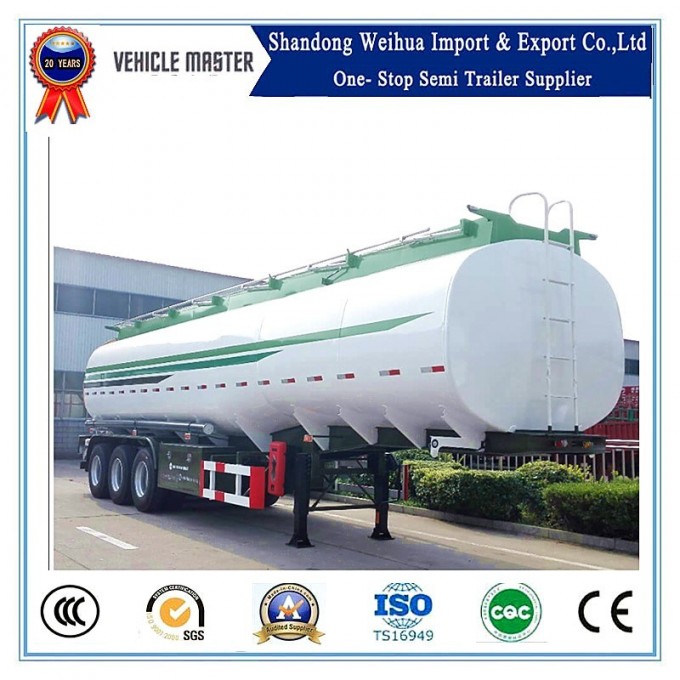

50000L Fuel Tank Truck Trailer

Fuel Tank Trailer Features:
1. The fuel tanker's body and chassis both are made by high-tensile steel
2. The axle adopt the famous brand such as BPW,FUWA,SAF,Lt.
3. The landing gear use JOST,FUWA or SAF-HOLLAND,Chinese brand spare parts is available also.
4. The steel or aluminium manhole is available,and both hand-control and pneumatic control valve are optional,can load with oil,diesel or petrol
5. Tank boy, Tank Material, Tank Chassis or trailer parts can be designed according to your requirements, and we can also provided full range of tank trailer parts if you needed.



50000L Oil Tank Trailer Technical data:

50000L OIL TANKER SEMI TRAILER
Tare weight	11000kg
Size	12000*2500*3800mm
Volume	50000L
Tank body	Q235A/5mm steel sheet
End plate	Q235A/6mm .ball shape
Axle	3 axleFUWA brand13T
Suspension	Mechanical suspension American type local brand
Leaf spring	Leaf spring 10pcs*90*13mm
Manhole cover	500mm manhole cover with breath valve .2 sets
Tire	12R22.5 double star brand 12pcs
Wheel rim	9.0-22.5 better brand 12pcs
Discharge valve	4" disc valve 6pcs
Discharge pipe	4" seamless steel tube
Bottom valve	1 set
Kingpin	JOST brand 2" bolt-in king pin
Landing gear	JOST brand two-speed, manual operating ,heavy duty landing gear 28T
Compartment	Single compartment
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Optional
Light	LED 8side lights and 2rear lights 2width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box one spare tire carrier one crank one shaft head wrench four side light two rear light

Packing and loading:


Company Profile:
Shandong Weihua import &Export Co., Ltd. is specialized in research, development and producing of semi-trailer and special vehicles. The factory is located in the special vehicle production base -- Liangshan, China.
Our company's main products are as below:
ΔLow bed semi trailer (including the trailer that can be extended to 53m)
ΔContainer trailer: Skeleton container trailers &flatbed container trailers
ΔSide wall semi trailer
ΔDump semi-trailer
ΔBulk cement tank trailer
ΔOil /fuel tank trailer
ΔVan /box semi trailer
Δsemi trailer accessories.
Our factory has 20 years of production experience. It has complete R&D center, vehicle and parts inspection center, rollover test laboratory, collision test place. The trailer payload is from 20 tons to 300 tons. The production capacity is over 10000 units per year.
Our trailers are widely exported to Russia, Outer Mongolia, Vietnam, Philippines, the middle east, Africa (such as Sultan, Nigeria, Algeria), South America and so on.
The company always adhere to the quality first, customer supme principle for good service to every customer. Each of vehicle that we produced has ahigh quality and reliability.

Factory and Equipments:



FAQ:
1. Q: Are you afactory or trading company?
A: We are afactory. We manufacture all kinds of Semi Trailers for over 20 years.

2. Q: What are the applications of the fuel tank trailer?
A.This kind of fuel tank trailer is for transportation of fuel, raw petroleom.

3. Q: Where is your factory located?
A: Our factory is located in Industry Park, Liangshan Town, Jining City, Shandong province,China

4. Q: What is the material of your products?
A: The materials are Carbon Steel, Stainless Steel, ALuminum Alloy: Q235,Q345,Q690; SS314, SS316; AL5454, AL5083.

5. Q: Can Iget asample or order 1unit?
A: Yes, you can order 1unit and our MOQ is 1set.

6. Q: How long it will take for an order to be delivered?
A: 25 to 30 days after we received you 30% ppayment or 100% L/C.

7. Q: How about the warranty?
A: 1year warranty and 2years guarantee for all the beam.

8. Q: How about the after sales service?
A: We supply all the parts and offer technical support for long life time of our products.
