20 years experience on fuel tank developing and manufacturing made us the high level leading manufacturer in China. Strong technical team with 280 senior technicians who can make your products innovative and best in your market.
Fuel Tank Trailer Features:
1. The fuel tanker's body and chassis both are made by high-tensile steel
2. The axle adopt the famous brand such as BPW,FUWA,SAF,Lt.
3. The landing gear use JOST,FUWA or SAF-HOLLAND,Chinese brand spare parts is available also.
4. The steel or aluminium manhole is available,and both hand-co
ntrol and pneumatic co
ntrol valve are optional,can load with oil,diesel or petrol
5. Tank boy, Tank Chassis or trailer parts can be designed according to your requirements, and we can also provided them seperately according to your requirements.

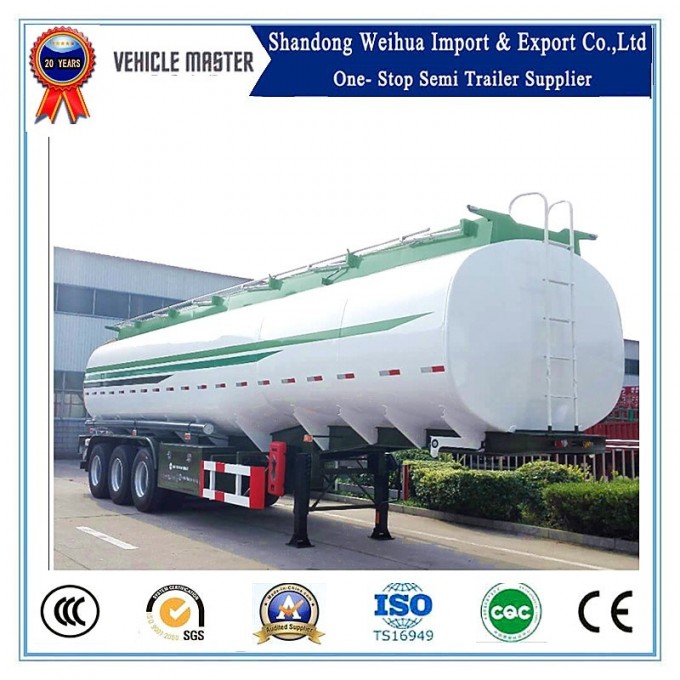

45000L Fuel Tank Trailer Technical da
ta:
| 45000L OilTanker Semi Trailer |
| Tare weight | 10000kg |
| Size | 11000*2500*3800mm |
| Volume | 45000L |
| Tank body | Q235A/5mm steel sheet |
| End plate | Q235A/6mm .ball shape |
| Axle | 3 axleFUWA brand13T |
| Suspension | Mechanical suspension American type local brand |
| Leaf spring | Leaf spring 10pcs*90*13mm |
| Manhole cover | 500mm manhole cover with breath valve .2 sets |
| Tire | 12R22.5 double star brand 12pcs |
| Wheel rim | 9.0-22.5 better brand 12pcs |
| Discharge valve | 4" disc valve 6pcs |
| Discharge pipe | 4" seamless steel tube |
| Bottom valve | 1 set |
| Kingpin | JOST brand 2" bolt-in king pin |
| Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 28T |
| Compartment | Single compartment |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional |
| Light | LED 8side lights and 2rear lights 2width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box one spare tire carrier one crank one shaft head wrench four side light two rear light |
Loading and Shipping:
Company Profile:
Shandong Weihua im
port &Export Co., Ltd. is specialized in research, development and producing of semi-trailer and special vehicles. The factory is located in the special vehicle production ba
se -- Liangshan, China.
Our company's main products are as below:
ΔLow bed semi trailer (including the trailer that can be extended to 53m)
ΔCo
ntainer trailer: Skeleton co
ntainer trailers &flatbed co
ntainer trailers
ΔSide wall semi trailer
ΔDump semi-trailer
ΔBulk cement tank trailer
ΔOil /fuel tank trailer
ΔVan /box semi trailer
Δsemi trailer accessories.
Our factory has 20 years of production experience. It has complete R&D center, vehicle and parts inspection center, rollover test laboratory, collision test place. The trailer payload is from 20 tons to 300 tons. The production capacity is over 10000 units per year.
Our trailers are widely exported to Russia, Outer Mongolia, Vietnam, Philippines, the middle east, Africa (such as Sultan, Nigeria, Algeria), South America and so on.
The company always adhere to the quality first, customer supme principle for good service to every customer. Each of vehicle that we produced has ahigh quality and reliability.
Factory and Equipments:
FAQ:
1. Q: Are you afactory or trading company?
A: We are afactory. We manufacture all kinds of Semi Trailers for over 20 years.
2. Q: What are the applications of the fuel tank trailer?
A.This kind of fuel tank trailer is for transportation of fuel, raw petroleom, edible oil, chemical liquid.
3. Q: Wher
e is your factory located?
A: Our factory is located in Industry Park, Liangshan Town, Jining City, Shandong province,China
4. Q: What is the material of your products?
A: The materials are Carbon Steel, Stainless Steel, ALuminum Alloy: Q235,Q345,Q690; SS314, SS316; AL5454, AL5083.
5. Q: Can Iget asample or order 1unit?
A: Yes, you can order 1unit and our MOQ is 1set.
6. Q: How long it will take for an order to be delivered?
A: 25 to 30 days after we received you 30% ppayment or 100% L/C.
7. Q: How a
bout the warranty?
A: 1year warranty and 2years guarantee for all the beam.
8. Q: How a
bout the after sales service?
A: We supply all the parts and offer technical support for long life time of our products.
