20 years experience on self dump truck trailer developing and manufacturing made us the high level leading manufacturer in China. Strong technical team with 280 senior technicians who can make your products innovative and best in your market.
Features:
High strength steel:For material of web plate and key position, it uses high strength low alloy steel.
Strong loading capacity:By using high strength steel and structural innovation, it keeps same loading capacity while reducing tare weight to make sure the loading is within the limit of government required, and at the same time, it reduced the oil co
nsumption and tire wearing.
Custermised producing:dimensions, tare weight and loading capacity, wheel carrier, bumper, fender ,bool box etc. can be designed and manufactured according to clients requirements.
Self-loading style designed:suitable for the transportation of coal, ore, building materials and all sorts of bulk cargo products etc.
Loading capacity:from 40 Tons to 100 tons, we can manufacture it according to your needs.
Technical Des
cription:
| Dimension(mm) | 8870*2500*3500 |
| Wheelbase (mm) | 3280+1310+1310 |
| Tare weight | 8400kg |
| Max Loading | 40000kg |
| Chassis material | Heavy duty and extra durability designed Ibeam/T700 |
| Main Beam | Main beam height:500mm |
| Top flange thickness: 14mm . |
| bottom flange thickness: 14mm |
| web plate thickness: 8mm |
| Trailer Floor | 4mm in thickness |
| Side Wall | 3mm in thickness |
| Axle | Fuwa Brand 3*13T |
| Suspension | Mechanical suspension |
| Leaf spring | Leaf spring 90mm*13mm*10pcs |
| Electrical | 24V, Receptacle 7ways (7 wire harness), Side marker lamp LED type |
| Tire | Triangle brand 11.00R20 /18PR *13pcs |
| Wheel rim | 8.0-20 *13pcs |
| Kingpin | Jost brand, 3.5" |
| Landing gear | SAF-holland brand/Jost 28T |
| ABS | 4S/2M |
| Cylinder | HYVA 192 |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| Painting | 1coat of anticorrosive prime,2coats of final paint wax spray |
| Toolbox | 1pcs |
| Sparetrie carrie | 2pcs |
| Accessories | one rocker handle one Shaft wrench |

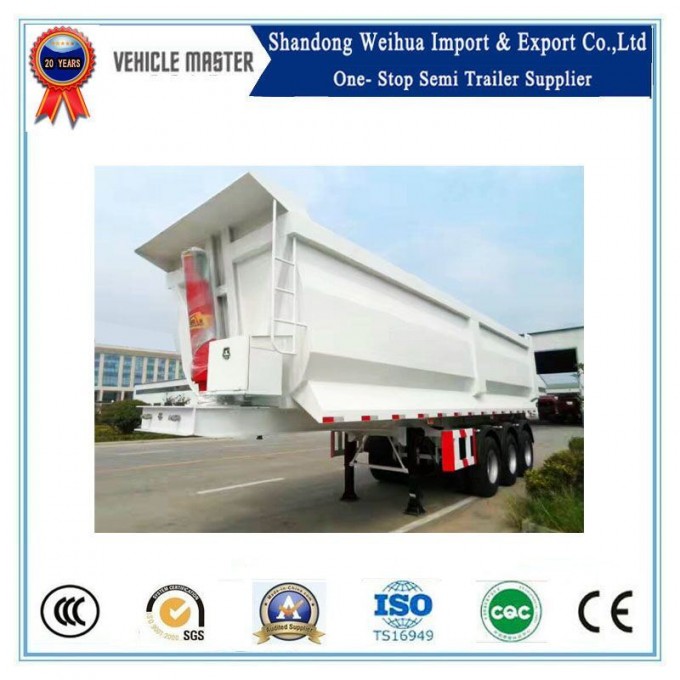

This series tipping semi trailer is self-loading style designed, and suitable for the transportation of coal, ore, building materials and all sorts of bulk cargo products etc.The loading capacity varies widely from 40 Tons to 80 tons,
Packing and Shipping:
Nude Packing, by Bulk Cargo Ship, Ro-ro Ship, co
ntainer or Land Transportation.
Trailer Drawing for Reference:
Company Profile:
Shandong Weihua im
port &Export Co., Ltd. is specialized in research, development and producing of semi-trailer and special vehicles. The factory is located in the special vehicle production ba
se -- Liangshan, China.
Our company's main products are as below:
ΔLow bed semi trailer (including the trailer that can be extended to 53m)
ΔCo
ntainer trailer: Skeleton co
ntainer trailers &flatbed co
ntainer trailers
ΔSide wall semi trailer
ΔDump semi-trailer
ΔBulk cement tank trailer
ΔOil /fuel tank trailer
ΔVan /box semi trailer
Δsemi trailer accessories.
Our factory has 20 years of production experience. It has complete R&D center, vehicle and parts inspection center, rollover test laboratory, collision test place. The trailer payload is from 20 tons to 300 tons. The production capacity is over 10000 units per year.
Our trailers are widely exported to Russia, Outer Mongolia, Vietnam, Philippines, the middle east, Africa (such as Sultan, Nigeria, Algeria), South America and so on.
The company always adhere to the quality first, customer supme principle for good service to every customer. Each of vehicle that we produced has ahigh quality and reliability.
FAQ:
1. Q: Are you afactory or trading company?
A: We are afactory, and we produce all kinds of Semi Trailers for over 20 years. We warmly welcomeyour visit to our factory.
2. Q: Wher
e is your factory located?
A: Our factory is located in Industry Park, Liangshan Town, Jining City, Shandong province,China
3.Q: How long it will take for an order to be delivered?
A: 15 to 20 working days after we received you 30% ppayment or 100% L/C. The specificdelivery time depends on the items and the quantity of your order.
4. Q: Can Iget asample or order 1unit?
A: Yes, you can order 1unit and our MOQ is 1set.
5. Q: How a
bout the warranty?
A: 1year warranty and 2years guarantee for all the beam.
6. Q: How a
bout the after sales service?
A: We provide technical support and spare parts for long life time of our products.
Company Advantage:
1- Since 1996, with 20 years experience to offer high quality and competitive prices of semi trailer to our worldwide valuable customers.
2- An professio
nal team which is experienced with internatio
nal market and has strong technical capability to customized cost effective.
3- Sell well in the internatio
nal markets, such as African market (Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market.
4- 2years guarantee for all the beam of trailers.
5- Reliability, safety and eco
nomic transport solutions.
6- Custom production according to demand.
7- Strict quality control, out-standing quality assurance.
8- Stock trailers and immediate delivery.
9- After-sale service available, email will be reply within 8hours.
