Product Feasures:Tank material: the tank is made of high quality steel with the character of high strength, light weight, proof pssure, anti-knock, anti-bump, etc.Tank welding: adopt special tipping equipment and automatic submerged arc welding machine, welding joint is smooth, beautiful and strong, to ensure that the welding quality.Surface treatment: sand-blasting, anti-rust and other techniques, using high-grade polyurethane paint, make the paint adhesion very strong. The appearance is beautiful, bright and long-lasting.im
portant components: selec
t the well-known brands of OEM parts, which is durable, and reduce the using and maintenance costs.

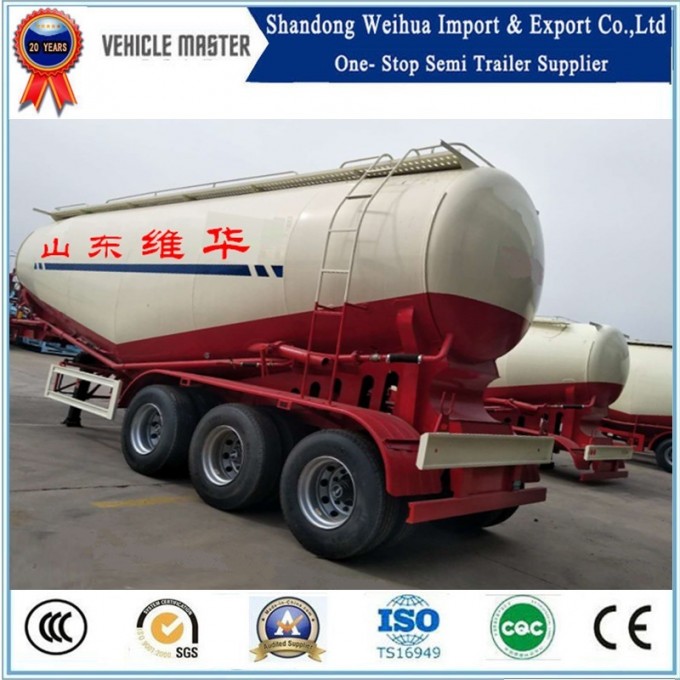

Here provide the semi trailer data sheet for your reference only.| 30M3BULK CEMENT SEMI TRAILER |
| DIMENSIONS |
| Tare weight | 9600kg |
| Size | 10000mm*2500mm*3950mm |
| Volume | 30M3 |
| Tank body | Q235A/4.5mm steel sheet |
| End plate | Q235A/6mm .ball shape |
| Axle | 3 axle FUWA brand 13T |
| Suspension | Mechanical suspension American type local brand |
| Leaf spring | Leaf spring 10pcs*90*13mm |
| Manhole cover | 500mm manhole cover .2 sets |
| Tire | 11.00R20 double star brand 12pcs |
| Wheel rim | 8.0China brand 12pcs |
| Discharge valve | 4" disc valve |
| Discharge pipe | 4" seamless steel tube |
| Outlet pipe | 4" rubber hose.6m |
| Kingpin | JOST brand 2" bolt-in king pin |
| Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 24T |
| Engine | Diesel engine: weichai brand model: 4102. |
| Air compssor | 37 KW, 0.2Mpa. 1000r/Min |
| Compartment | Single |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Air-charging system | 2" main hole.2" check valve .1.5" safe valve.0.4Mpa.gauge |
| Quadratic blow | 1" diameter check valve |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box one spare tire carrier one crank one shaft head wrench four side light two rear light |
