3 Axle 60t Heavy Duty Side Tipper/Dump Truck Semi Trailer for Sand Coal Transport

3 Axle 60t Heavy Duty Side Tipper/Dump Truck Semi Trailer for Sand Coal Transport

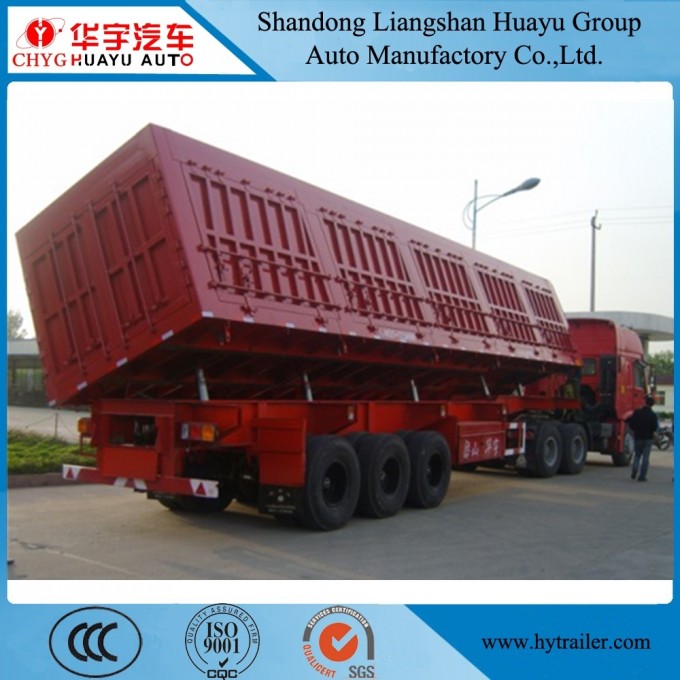

1.Product picture


2.Product parameter

size	13000x2500x3500mm
payload	60ton
tare weight	10000kg
axle	3x13ton/14ton/16ton/20tonbrand can be opentional
suspension	mechanical suspension/air suspension/american type/germany type can be opentional
tire	11R22.5/12R22.5/11.00R20/12.00R20brand can be opentional
wheel rim	8.25/9.0/8.0/8.5
kingpin	2"/3.5"
Ibeam	up:14mm;bottom:16mm;middle:8mm;height:500mm;width:140mm:material:Q345B
landing gear	jost c200 /fuwatwo speed 28ton
floor/side board	floor:4mm/board:3mm
twist lock	(opentional)
spare tire carrier	2 pcs
tool box	1 or more can be opentional
air wiring	doule air line ;
electricity wiring	6 core wiring;24v or 12v ;LED lamp;
brake system	wabco relay valve;drum brake;t30/30 brake chamber
paiting	complete chassis sand blasting;electrophoresis coating;1 coat of anticorrosive prime; 2coats of final paiting
cylinder	130#/140# 5pcs/6pcs opentional
accessories	brake shoe;spare tire cranking;shaft head wrench;jack 50ton;tire bolt;lamp

3.NORMAL PROCEDURE

1)cutting
use the plasma cutting machine cut the steel to little parts use for suitable welding and splicing

2)welding
after steel cutting process the next step is welding .this process the main work is beam welding .the top plate-bottom plate and the
middleplatewillbe welding together .this process will be use submerged arc welding process.this type of welding is very
special .its exclusively used in Ibeam welding .after this welding process other parts of the trailer will be use different welding way
for different steel-argon arc welding-electric arc welding-manual welding-gas welding and so on

3)blasting
this process is use for the first step of surface cleanness-stress relief-derusting before paiting .

4)electrophoresis coating
this process use for more detail surface cleanness

5)epoxy zinc primer spray coating
this process is the lasting one before paiting .after this process the trailer an be paiting

6)assembly
after all the process we have mationed .the last procedure of the trailer is assembly.this process all the parts will be assemly .it including tire-wheel rim-king pin-landing gear-suspension-spring leaf -brake chamber-air wiring-electricity wiring-brake system and so on

7)packing
The last process is packing .all the trailer use different packing way as customer requirment.after packing the trailer can be on the way to the customer




1)if welding line should be beautiful and strong.this process will be checking by the quality inspector of factory

2)surface should be clean and looks beautiful.

3)brake system should be adjust before the product leave the factory

4)lamp should my checking before leave the factory

5)all the parts should be reinforce .especially the bolt shoule be more reinforce before the produce leave the factory




5.HISTORY OF MY GREAT WOMEN BOSS!
1)civil servant worker before the year of 1990.
2.laid-off workers after the year of 1990
3)steel business after the year of 1990
4)build semi trailer factory after the year of 2000
5)peoples congress (NPCmember) in the year of 2005
6)export business after the year of 2008 and NPC member .in the meantime meet the chainman Jinping Xi



6.INTERNATIonAL MARKET

1)china market before the year of 2005.we can produce about 12000 pcs one year
2)in the year of 2008 we do the national business .untill now we can export 2000pcs semi trailer one year
3)south africa exhibation in the year 2010
4)russia truck and trailer parts exhibation in the year 2012
5.germany auto trailer parts exhibation in the year of 2015
6)america trailer parts exhibation in the year 2014




FAQ
1)why you will select huayu trailer ?
because we pay more attention to our customer requirment.we produce as the customer requirment completely

2)what superiority huayu trailer have ?
good quality-good after-sales service-good cost performance.we are not the best but we will do our best to service for you

3)what product huayu can supply?
big trailer company not only have superiority product .our product is diversity
