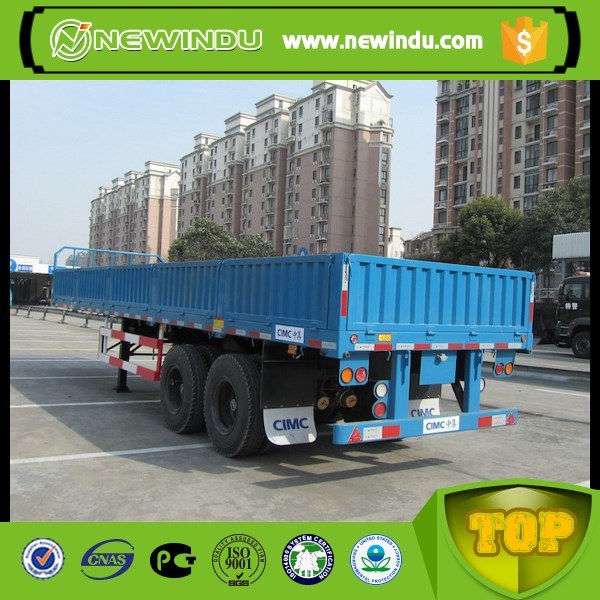

Main Dimensions | |
Dimension | 11280*2495*3970mm ( outside) 10500*2300*1700mm (work space ) |
Tare weight | about 15600KGS |
Total Volume(m3) | 37 m³ or less than 80tons |
Side wall thickness(mm) | 3mm-6mm Q235 steel |
Bottom plate thickness(mm) | 5mm-8mm /Q235 steel |
Lifting system | Full set of HYVA (FC214-5-07130) Hydraulic Lifting Cylinder |
Chassis | |
Main Beams | Height:500mm, upper plate is 16mm,middle is 8mm(double +three plate),down plate is 18mm,material is Q345B steel |
Axle | 3 axles, FUWA/HUAJING/BPW brand 13T/16T per axle |
Landing Gear | JOST (C200T)or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/ America type / |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer |
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber; one piece of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 13PCS China Brand |
Tire | 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 13PCS Brand can be Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo or RORO, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model . |
