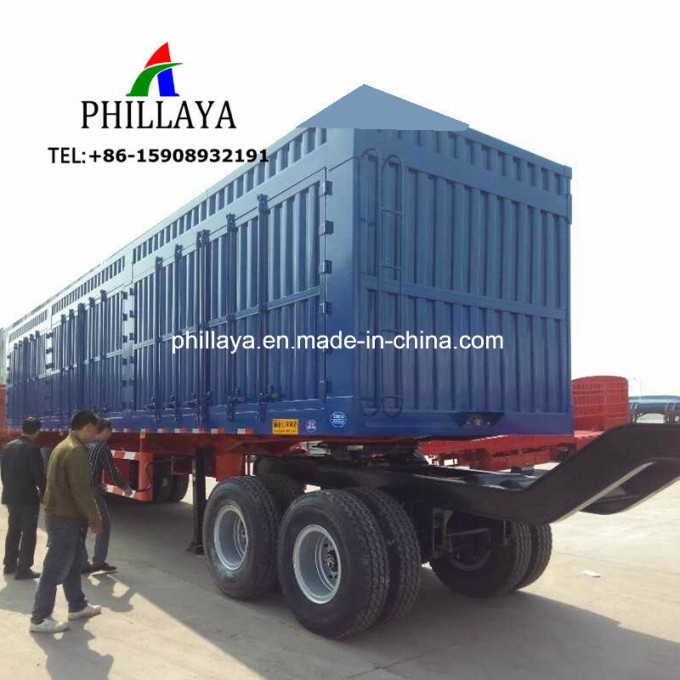

3 Axle Van Body Enclosed Cargo Transport Truck Semi Box Trailer

All Specifications and Designs can be Customized !

3 Axles 13m Length Box/Van Semi Tank Trailer (Other Dimensions Optional)
Model	PLY9338G
Wheel base	1310 (mm)
Tyre Specifications	12R22.5
No. Of the Tyres	12 pcsISO Certificated
Axle	13Tonnage
No. Of the Axles	3 pcs
Landing Gear	28 ton capacity Fuwa with static capacity of 80T
Suspension	Heavy duty mechanic suspension with 10 pcs leaf spring
King Pin	2' and 3.5' inter-changeable traction pin
Departure Angle	15
Front/Rear Overhang	1900 mm
Material of the Main Beam	Automatic submerged arc welded Main beams Q345B/ST52-3, through cross beams Q235 Body material Q235B manganese plates, automatic submerged arc welded
Brake System	Automatic air brakes Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber.
Colour	As the buyers' request
Accessory	One tooling boxes ,Two spare tire carrier, Two fire extinguisher
Dimension	13000x2500x3800 mm
Net Weight	7T
Side Wall Thickness	3mm-5mm
Spare tire carrier	1 set
Electrical System	24V, 7core socket, lights according to European standards.
Tool Box	1 box of standard tools

FUNCTIONS

1. This series Box semi trailers are mainly used in the agricultural products, and bulk cargo or electrical appliance transportation.
2. The rated capacity varies widely from 30Tons to 100Tons, and the dimension different from 7000mm to 18000mm,
we can manufacture it according to your needs.
3. The axles can be Fuwa /Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The side wall height and side or back door numbers and opening ways have several options for your better usage.
