40ton 2axles Side Wall/Side Drop/Side Board/Bulk Cargo Truck Semi Trailer

40Ton 2Axles Side Wall/Side drop/Side board/Bulk cargo Truck Semi Trailer

Product Description

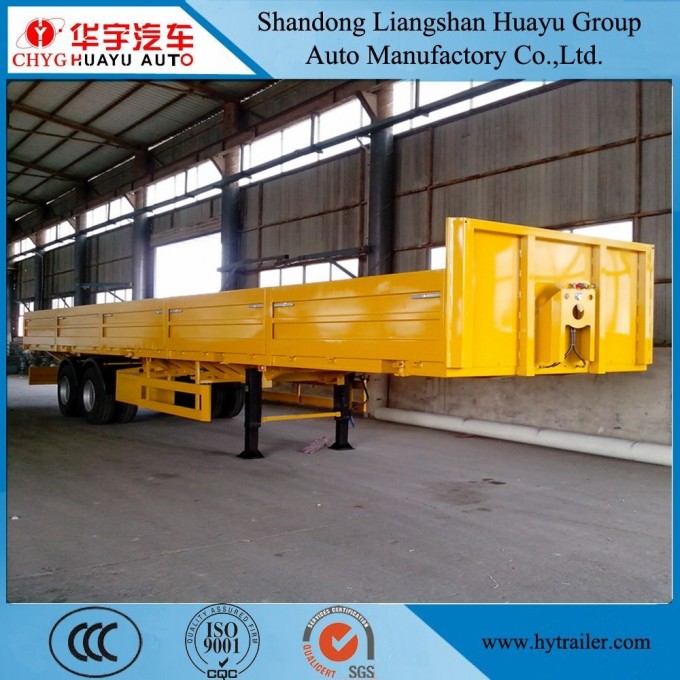

2 AXLE SIDE WALL SEMI TRAILER
PARAMETERS
Tare weight	6000kg
Payload	40Ton
Overall Size	13000mm*2500mm*2700mm
Inside Size	12800*2400
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Upper flange 14mm;Bottom flange 16mm;Middle Flange 8 mm , Height 500mm;
Side beam	16# channel steel(U-steel)
Cross member	10# channel steel(U-steel)
Floor	3mm checkered plate
Side wall	Height 600mm thickness 2mm
Front board	Manufacture Standard Height 1200mm
Axle	13T *2 axles
Suspension	Mechanical suspension American type
Leaf spring	Leaf spring 10pcs*90mm*16mm
Tyre	1200R20 *8units
Wheel rim	8.5-20 *8pcs
Kingpin	JOST 2"/3.5" bolt-in king pin Optional upon choice
Landing gear	JOST two-speed, manual operating ,heavy duty landing gear
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks .Parking braking spring energy, compssed air operating on rear wheels
ABS	No. Optional upon choice
Electrical system	Voltage 24V, Receptacle 7 ways (7 wire harness),LED lights,One set 6-core standard cable.
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint,Use high-grade polyurethane paint,wax spray.
Twist lock	As clients order
Accessories	One standard tool box.One spare wheel carrier chained mode.One crank.One shaft head wrench.Rope hook casting model.Tight rope device *10units per side.
Other	According to requirtments
Date of delivery	25 workdays after we received 30% of contract value T/T down payment.
Package	3sets together or 40HQ load 2 sets.

ProductFeatures

Advanced technology:Major parts and components of the trailer are processed by advanced equipments. Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.Chassis:To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.Axle:High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety.Suspension:High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.Tool Box:Large capacity water-proof detachable tool box.Hot-rolled structural steelwelded 16Mn steel longitudinal beam and cross member are assembled and welded for chassis assembly. The finished chassis offers bending and deforming resistance with proper rigidity and strength.Tested and proven structureof cargo box is constructed with profiled steel from, corrugated plate and mold pssed steel stake.Reliable dual circuit air brakewith quick release valve and quick repines of wheel cylinder ensures safe on-road and off-road operation.

Our Advantage
.Sinotruk's Strategic Partner, Manufacturer direct sale,quality guaranteed, low price.
ShanDong Liangshan HuaYu Group Automobile Manufacture Co .,Ltd. is an automobile manufacture enterprise approved by the former National Economics and Trade Committee, with "HuaYuDa Brand" automobile products being catalogued into the national automobile product summary announcement.

The company engaged in designing, researching manufacturing and selling. The company covers above800 acres, with total assets ofRMB 560,000,000.00 Yuanand factory building areas of236,000 square meters. Now there are more than2000 staff, therein180 senior technical engineers. The company equips the first-class CNC cutting, advanced equipment of welding and stamping, and excellent quality guarantee system, modern testing means and high qualified specialist technicians.Our company is a special purpose motor vehicle manufacturing enterprisewhich has largescaleofproduction, perfect Quality Management System in domestic.

As a trailer professional manufacturer for many years , we accepet meet any kinds of semi trailer customized requirement. The trailer payload from 20 ton up to 300 ton to meet different road transportation demand,and every one of them an innovative and efficient transport solution with an excellent price / quality ratio.

The most important thing to us is the trust of our customers and principals.

FAQ
Q1.Areyouamanufacturer?
Yes,wehavebeenin specialvehiclemanufacturingandmarketiing for over 20 years.

Q2.Whatmarketsdoyour vehicle export to?
Africa,Asia,SouthAmerica,Oceanica,MiddleEast countries etc.

Q3.WhatinformationshouldIletyouknowifIwanttogetaquotation?
Pleaseletusknowthe your purpose,road condition,cargo type,tons of your cargo,dimensions of trailer,quantity etc. The more info you provide, the more accurate model and price you will get.

Q4.Isitavailabletoprintourownbrandonthevehicle?
Totallyacceptableas you wish.

Q5.HowcanIgetthepriceofyourvehicle?
Youcanconnectwithusthroughanyofthefollowingcontactinformation.Ourpersonalizedservicepersonwillrespondyouwithin24hours.
