aluminum alloy tanker semi trailer aluminum oil fuel tank for trucks aluminum tank trailer for sale

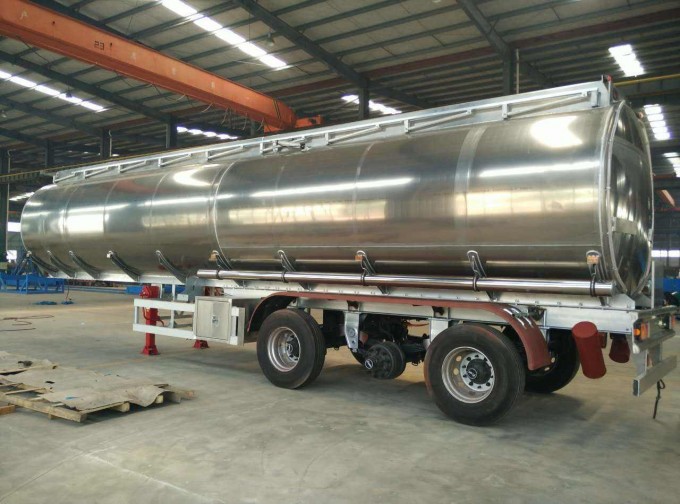

Product Photos :
aluminum alloy tanker semi trailer aluminum oil fuel tank for trucks aluminum tank trailer for sale
Detailed Specification :
Function | Fuel, petroleum, gasoline, etc |
Overall Dimension(Lx W x H)(mm) | 125000x2500x1700mmor customized |
Volume | 42m3 |
LoadingWeight(KG) | 40000 |
Axle Brand | FUWA 13TON*3 |
Tank material | Aluminium alloy 5182 steel Tank body: 6.00mm; Dish end: 7.00mm; Baffle: 7.00mm; |
Compartments | 3compartment or optional |
Bottom valve | 1 set per compartment, 4"pneumatic controlled valve |
Discharge valve | CIVACON brand API valve. |
Manhole | 1 set manhole with internal breath valve |
Main beam | Carbon steelQ345B.The height 500 mm, upper plate 14mm,down plate16mm,middle plate8mm. |
Traction pin | 2"(50mm) or 3.5''(90mm) optional |
Land gear | Standard 28ton |
Spring leaf | 90mm*13mm*10pcsor 100mm*12mm*12pcs |
suspension | Mechanical suspension / Air suspension optional |
Rim | 9.00-22.5 12pcs |
Tire | Tubeless tire12R22.5/ Steel radial tire11.00R20or 315/80r22.5 |
valve | WABCORE6relayvalve |
BrakeChamber | T30/30+T30Springbrakechamber |
Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
One set 6-core standard Cable. | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosiveprime, 2 coats of final paint |
Color | optional |
Packing | NUDE,Polish with wax before shipping |
aluminum alloy tanker semi trailer aluminum oil fuel tank for trucks aluminum tank trailer for sale
Main features
Details Pics:
